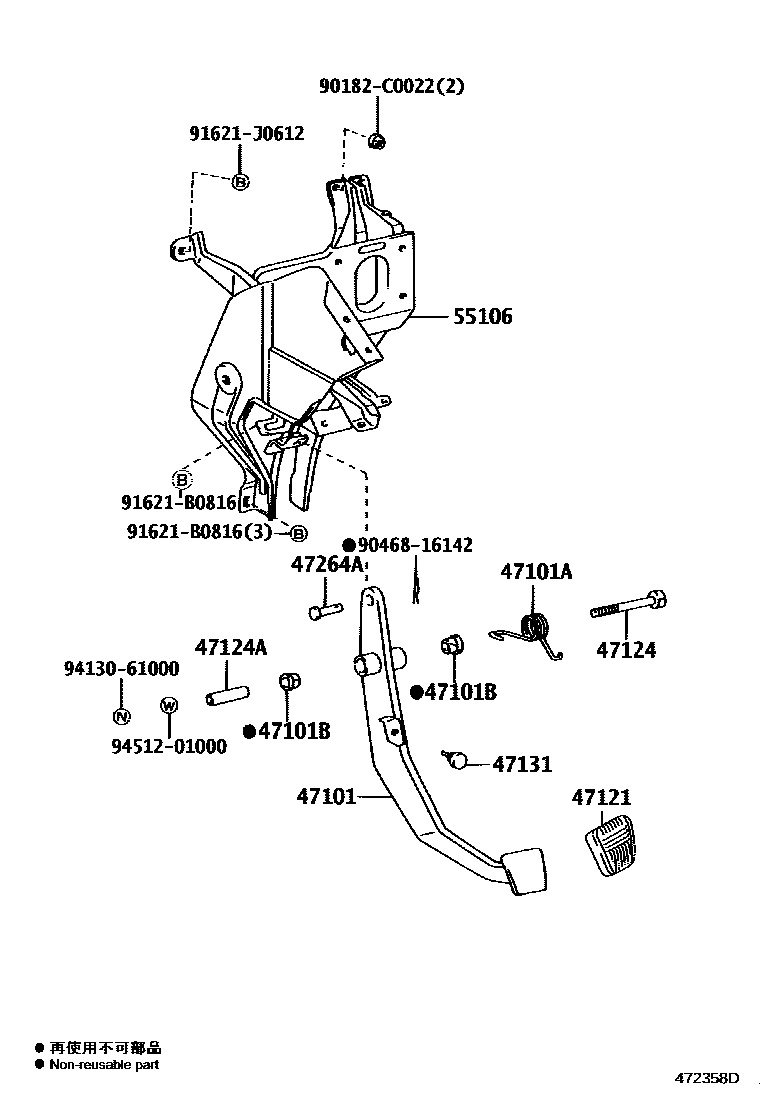

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-36140iGRB53,TRB53201301-201911

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iGRB53,TRB53,XZB53201301-202412

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iGRB53,TRB53,XZB53201301-202412

47121PAD, BRAKE PEDAL

main31321-14020iGRB53,TRB53,XZB53201301-202412

47124SHAFT, BRAKE PEDAL

main91112-61070iGRB53,TRB53201301-201911

main91121-61070iGRB53..LX201911-202412

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iGRB53..LX201301-202412

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGRB53,TRB53,XZB53201301-202412

47264APIN(FOR PUSH ROD)

main90240-06028iGRB53..EX,STD201911-202412

main90240-10085iGRB53,TRB53,XZB53201301-201911

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0S010iGRB53..LX201911-202412

main55106-36070iGRB53,TRB53,XZB53201301-201911

90182C0022

main90182-C0022

9046816142

main90468-16142

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9413061000

main94130-61000

9451201000

main94512-01000

15 parts on this diagram · 2 diagrams in section
