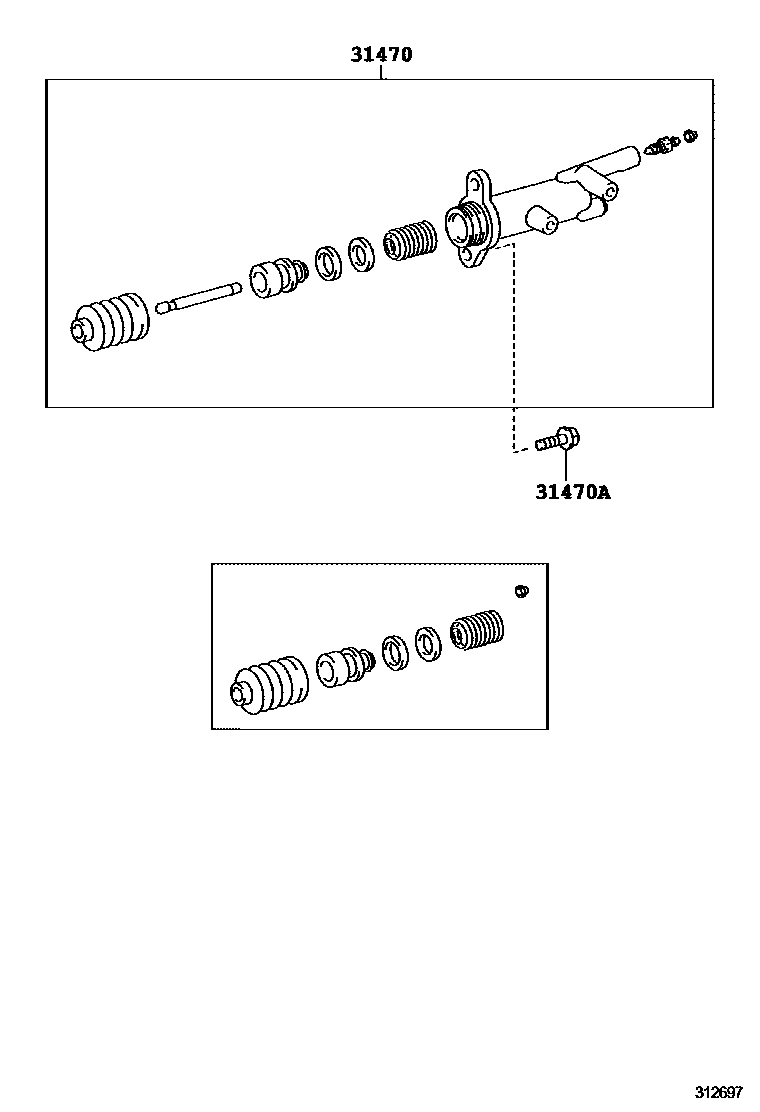

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36311iTRB53¥5,700201301-201910

main31470-36320iXZB53201403-201507

main31470-36330iGRB53201301-202412

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXZB53¥80201403-201507

*8-1.25PX25-20.1

main91611-B0825iGRB53..LX¥160201301-202412

*8-1.25PX25-25

2 parts on this diagram · 2 diagrams in section
