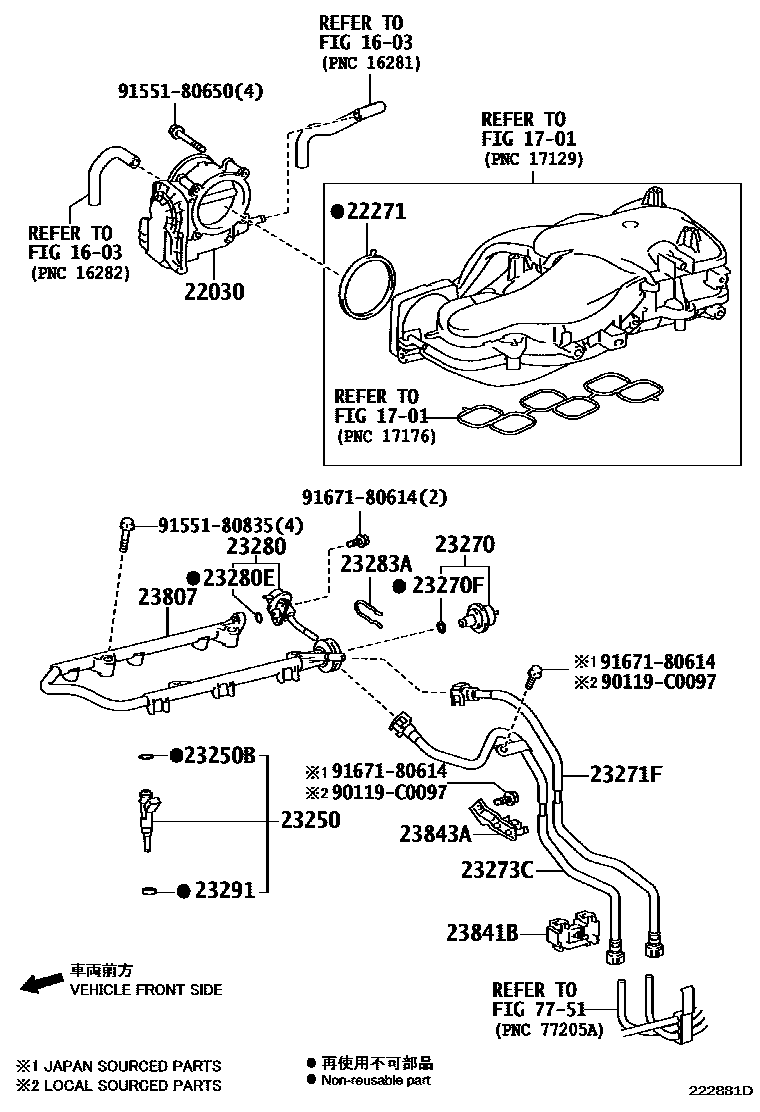

FUEL INJECTION SYSTEM
1603
1701
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23270FRING, O(FOR PULSATION DAMPER)
23273CHOSE, FUEL, NO.2
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
7751
90119C0097
main90119-C0097
9155180650
main91551-80650
9155180835
main91551-80835
9167180614
main91671-80614
22 parts on this diagram · 3 diagrams in section
