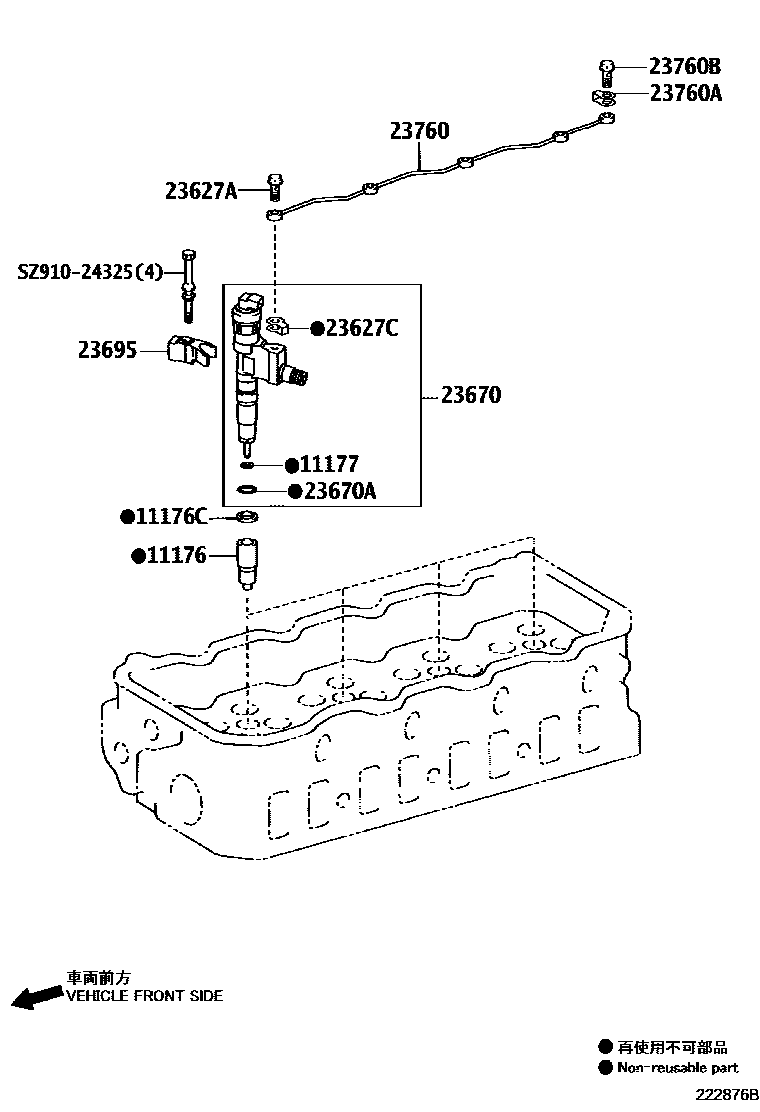

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

mainS111761200iN041..XZB53201403

11176CGASKET, NO.2(FOR INJECTION NOZZLE SEAT)

mainSZ91015133iN041..XZB53201403

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN041..XZB53201403

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN041..XZB53201403

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN041..XZB53201403

23670INJECTOR ASSY

main23670-E9260iN041..XZB53201403

sub23670-E9261

23670ARING, O(FOR INJECTOR ASSY)

mainSZ30119001iN041..XZB53201403

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN041..XZB53201403

23760PIPE ASSY, NOZZLE LEAKAGE

mainS230812630iN041..XZB53201403

23760AGASKET

mainSZ20908024iN041..XZB53201403

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN041..XZB53201403

SZ91024325

mainSZ910-24325

12 parts on this diagram · 1 diagram in section
