ALTERNATOR

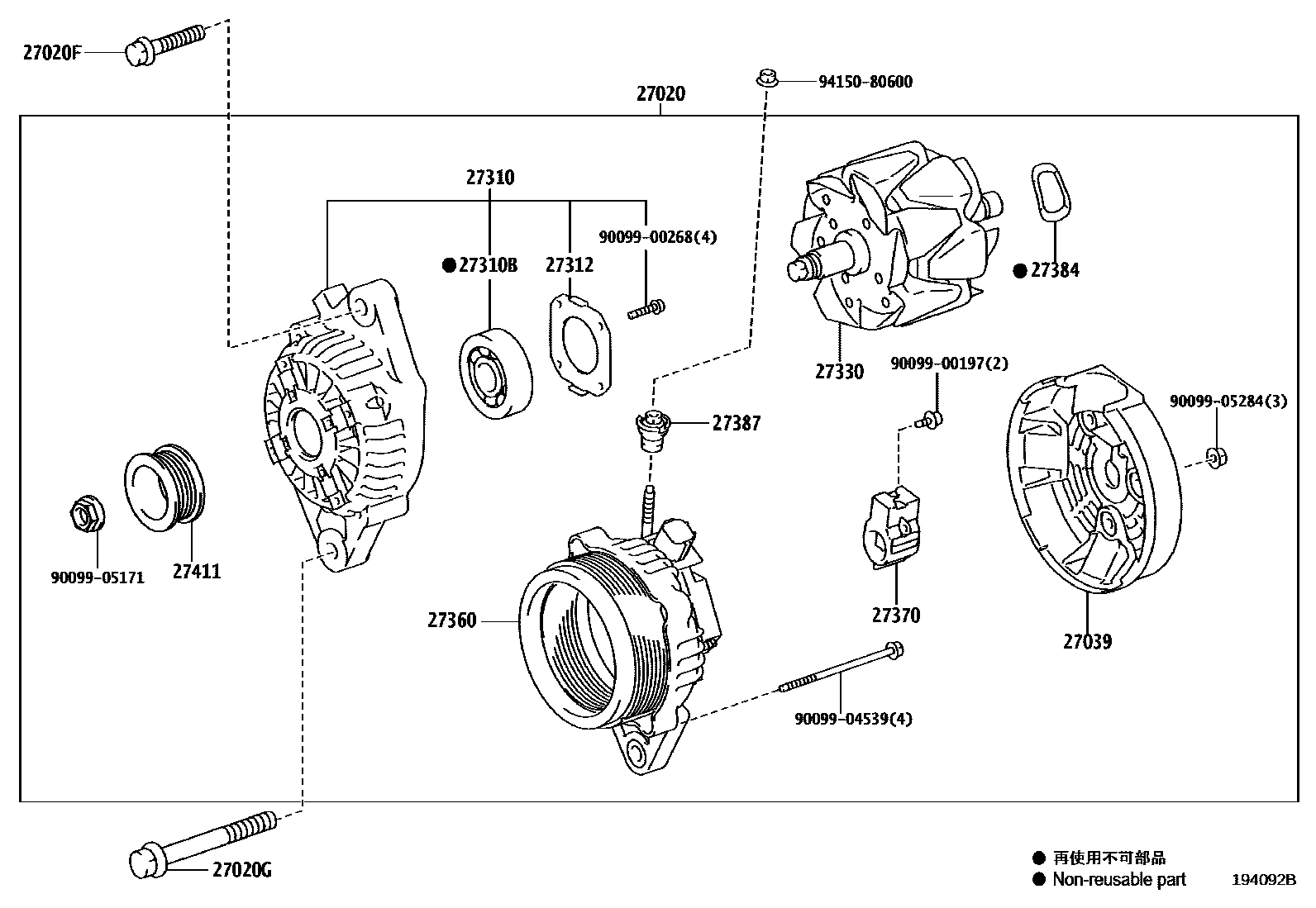

Parts diagram

27020ALTERNATOR ASSY

main27060-0C050i201301-201405

12V 80A

main27060-0P160i201301-202412

12V 100A

main27060-75440i201405-201910

12V 100A

main27060-E0330i201403-201507

12V 130A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-C0170i201301-202412

main91552-81040i201301-201910

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-C0098i201301-202412

main91552-81085i201301-201910

27039COVER, ALTERNATOR REAR END

main27039-0H110i201301-201405

main27039-0P070i201301-202412

main27039-31390i201405-201910

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C050i201301-201405

main27310-0P070i201301-202412

main27310-75270i201405-201910

main27310-EV030i201403-201507

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i202304-202412

main90068-10040i201301-201405

main90068-10042i201301-202304

main90099-10223i201405-201910

mainS282522190i201403-201507

27312PLATE, RETAINER

main27312-0M070i201301-202412

main27312-72100i201301-202304

mainS273121670i201403-201507

27330ROTOR ASSY, ALTERNATOR

main27330-0H110i201301-201405

main27330-0P070i201301-202412

main27330-30070i201405-201910

mainS273302070i201403-201507

27360COIL ASSY, ALTERNATOR

main27360-0C050i201301-201405

main27360-0P280i201301-202412

main27360-75400i201405-201910

mainS274601030i201403-201507

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0H110i201301-201405

main27370-0T030i201301-202412

main27370-58460i201405-201910

mainS273701370i201403-201507

27384WASHER

main27384-16380i201301-201405

main27384-50030i201301-202412

mainS273841310i201403-201507

27387INSULATOR, TERMINAL

main27387-0H110i201301-202412

main27387-20130i201405-201910

mainS273871350i201403-201507

27411PULLEY, ALTERNATOR

main27411-0P280i201301-202412

main27411-75340i201301-201405

mainS274311800i201403-201507

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600
