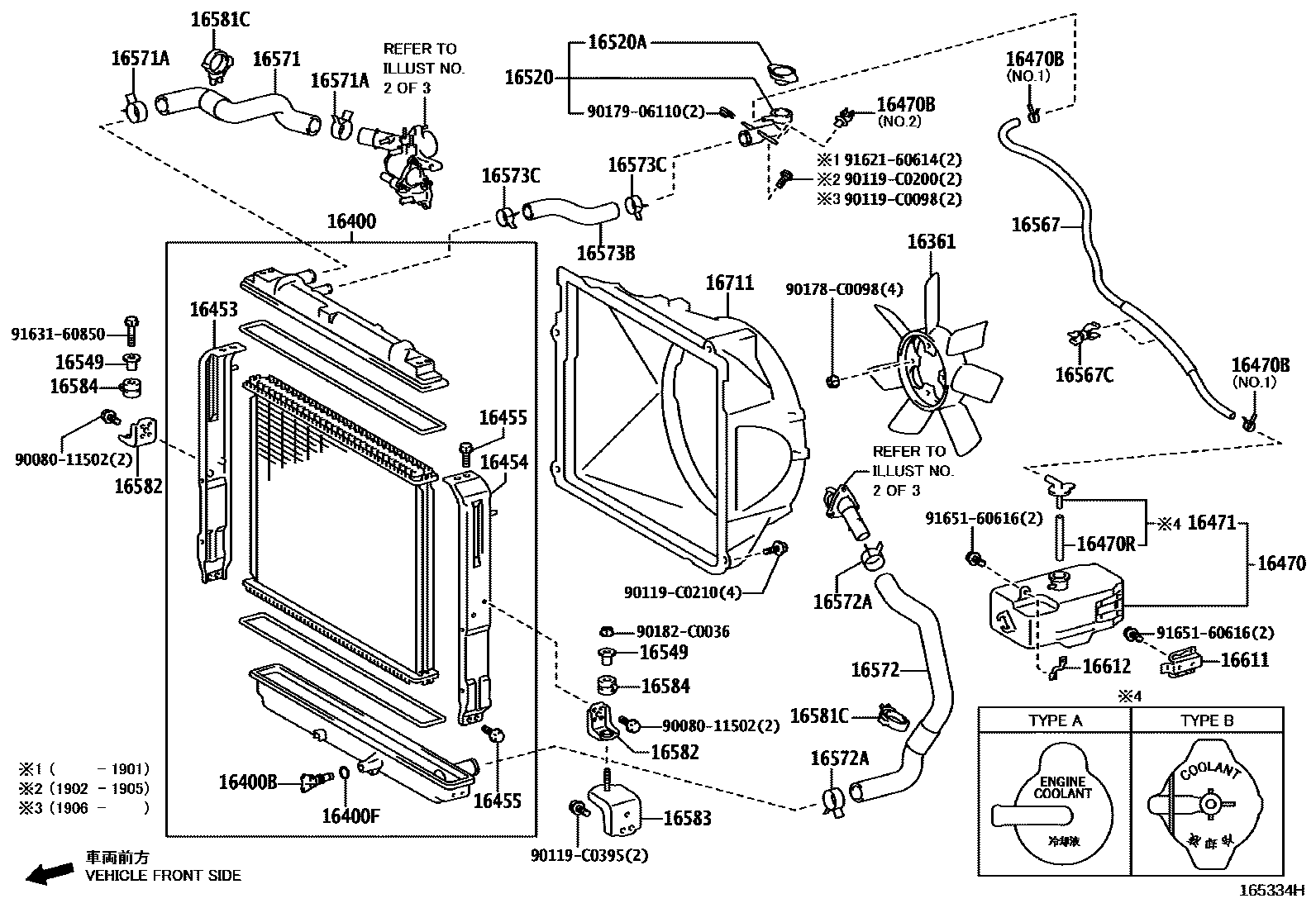

RADIATOR & WATER OUTLET
16361FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16453PLATE, RADIATOR SIDE
16454PLATE, RADIATOR SIDE
16455BOLT, RADIATOR SIDE SUPPORT PLATE
NO.2
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
NO.1
NO.2
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=135)
16549COLLAR, RADIATOR SUPPORT, NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
PNC 16471=TYPE A
PNC 16471=TYPE B
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16584INSULATOR, RADIATOR MOUNTING
16611BRACKET, RADIATOR RESERVE TANK
9008011502
main90080-11502
90119C0098
main90119-C0098
90119C0200
main90119-C0200
90119C0210
main90119-C0210
90119C0395
main90119-C0395
90178C0098
main90178-C0098
9017906110
main90179-06110
90182C0036
main90182-C0036
9162160614
main91621-60614
9163160850
main91631-60850
9165160616
main91651-60616
40 parts on this diagram · 7 diagrams in section
