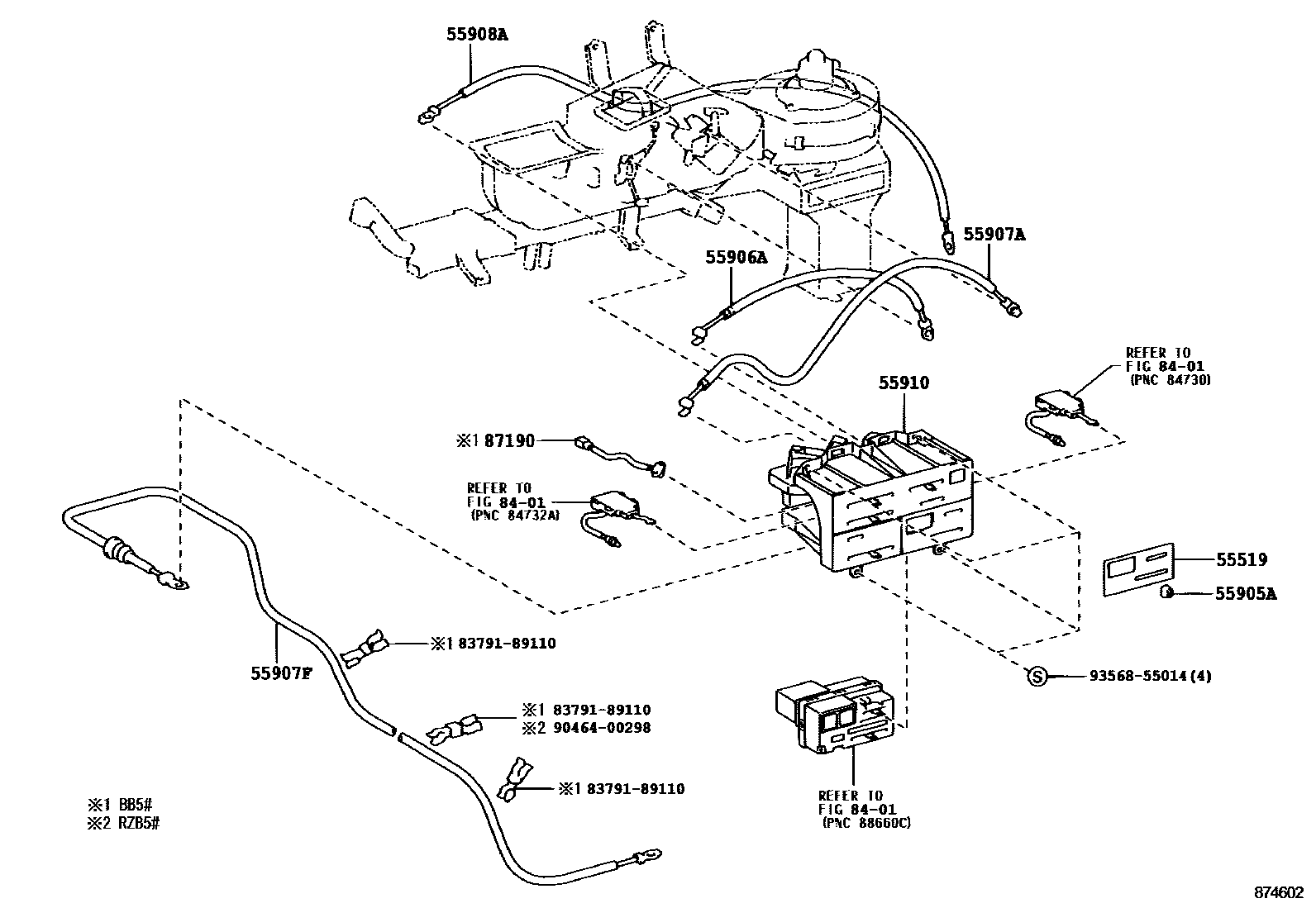

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL 0004 1FRONT AIR DUCT & DAMPER 0005 1FRONT AIR DUCT & DAMPER 0006 1ROOF AIR DUCT & DAMPER 0007 1ROOF AIR DUCT 0008 1ROOF AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-36020iBB5#,RZB5#,TRB53,XZB53200012-201403

55905AKNOB, HEATER CONTROL

main55905-36030iBB5#,RZB5#200012-200310

W(REAR HEATER)

main55905-36030iBB5#,RZB5#,TRB53,XZB53200310

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36080iBB5#,RZB5#200012-200310

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36080iBB53,RZB53200012-200310

55907FCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36110iBB5#,RZB5#200012-200404

main55907-36111iBB5#,RZB5#,TRB53,XZB53200404

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-36040iBB5#,RZB5#200012-200404

main55908-36070iBB5#,RZB5#,TRB53,XZB53200404

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36151iBB5#,RZB5#200012-200310

W(REAR HEATER)

main55910-36151iBB5#,RZB5#,TRB53,XZB53200310

main55910-36220iBB54,RZB54200012-200310

8401

87190SWITCH ASSY, TEMPERATURE CONTROL

main87190-36010iBB5#200012-200701

8379189110

main83791-89110

9046400298

main90464-00298

9356855014

main93568-55014

12 parts on this diagram · 8 diagrams in section
