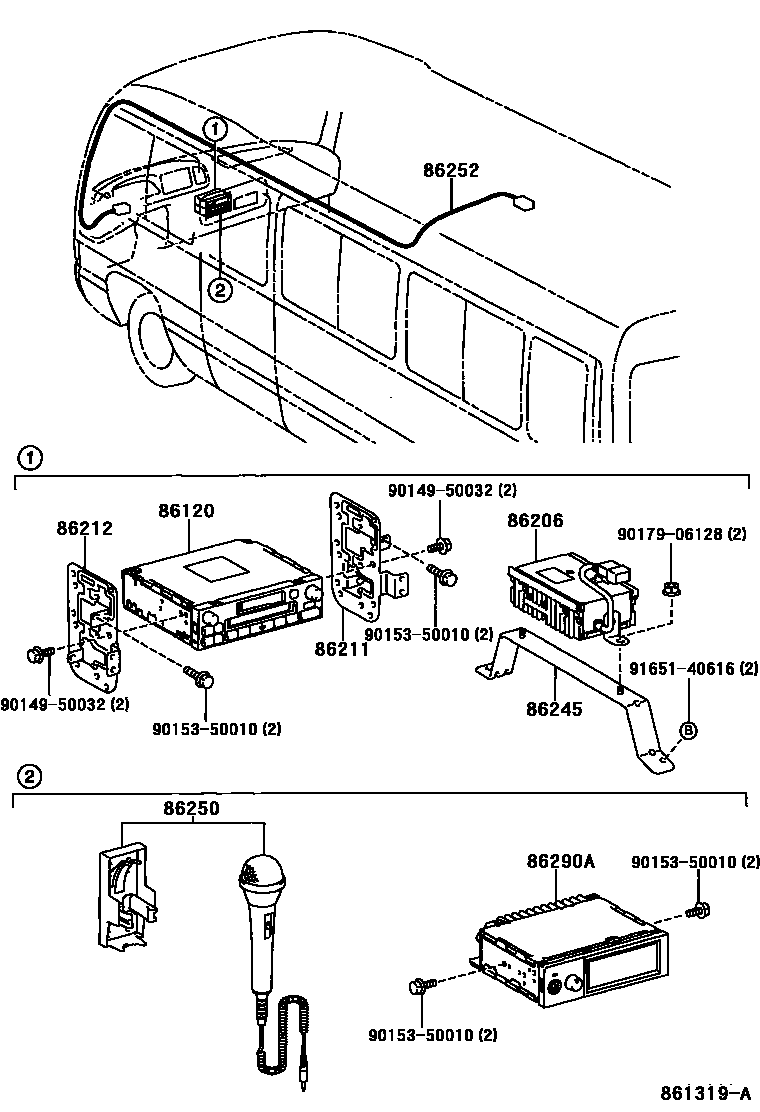

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-0D080iBB53,RZB53200310-200701

FUJITSU TEN,ID=17415,TYPE C:REFER ILLUST.

main86120-0D281iTRB53,XZB53201108

FUJITSU TEN,ID=12829

main86120-36060iBB53,RZB53200012-200310

FUJITSU TEN,ID=17413,TYPE A:REFER ILLUST.

main86120-36070iBB54,RZB54200012-200701

FUJITSU TEN,ID=17205,TYPE B:REFER ILLUST.

main86120-36090iTRB53,XZB53200701-201108

FUJITSU TEN,ID=12865,TYPE D:REFER ILLUST.

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-36060iBB54..29S200012-200701

86211BRACKET, RADIO, NO.1

main86211-0S010iTRB53,XZB53201108

main86211-36030iBB5#,RZB5#200012-201108

86212BRACKET, RADIO, NO.2

main86212-0S010iTRB53,XZB53201108

main86212-36030iBB5#,RZB5#200012-201108

86245BRACKET, VOLTAGE CONVERTER

main86245-36020iBB5#200012-200701

86250MICROPHONE ASSY, AMPLIFIER

main86250-0S010iTRB53,XZB53201108

main86250-36040iBB5#,RZB5#200012-201108

86252CODE, MICROPHONE, NO.1

main86252-0S010iTRB53,XZB53201108

main86252-36020iBB5#,RZB5#200012-201108

86290AAMPLIFIER ASSY, MICROPHONE

main86290-36070iBB5#,RZB5#200012-200310

9014950032

main90149-50032

9015350010

main90153-50010

9017906128

main90179-06128

9165140616

main91651-40616

12 parts on this diagram · 3 diagrams in section
