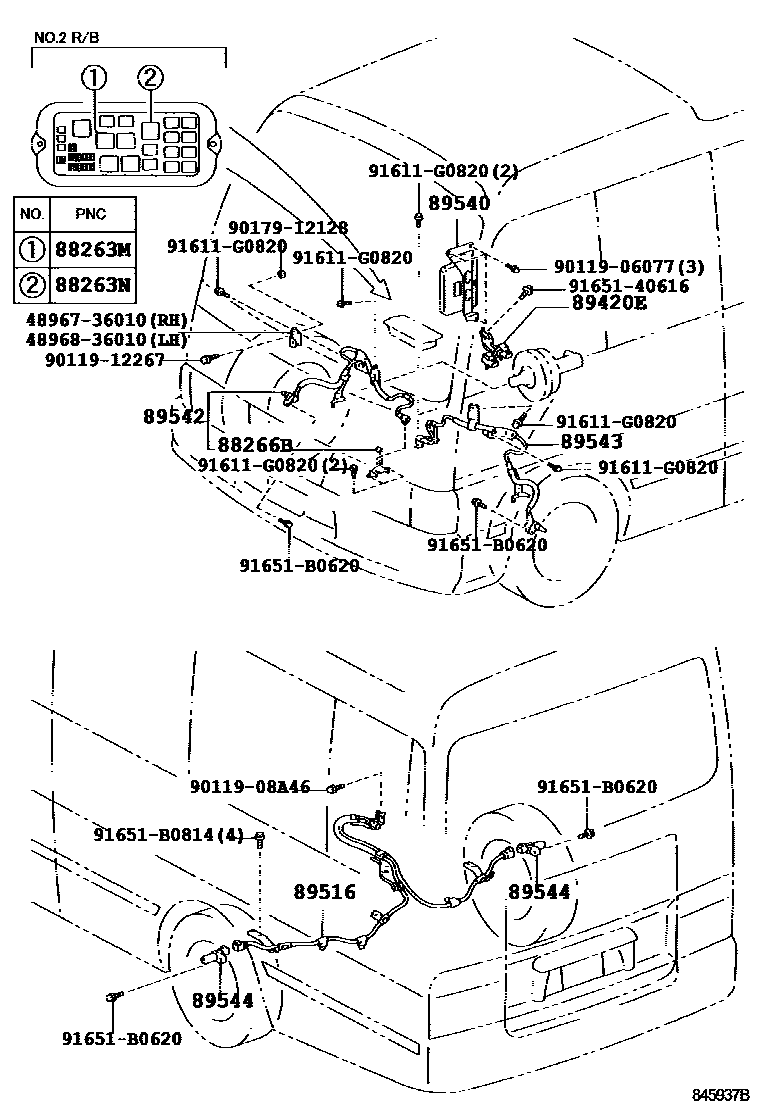

ABS & VSC

0001 1 0002 1 0003 1

88263MRELAY, ABS SOLENOID

main88263-36050iBB5#200310-200701

main88263-37020iRZB5#,TRB53,XZB53200310

88263NRELAY, ABS MOTOR

main88263-36040iBB5#200310-200701

main88263-37010iRZB5#,TRB53,XZB53200310

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-36050iBB53,RZB53200310-200701

89420ESENSOR ASSY, VACUUM

main89420-36020iBB5#,RZB5#,TRB53,XZB53200310

89516WIRE, SKID CONTROL SENSOR

main89516-36050iBB5#,RZB5#,TRB53,XZB53200310

89540COMPUTER ASSY, SKID CONTROL

main89540-36060iXZB53200701

main89540-36080iBB5#200310-200701

main89540-36090iRZB5#,TRB53200310

89542SENSOR, SPEED, FRONT RH

main89542-36020iBB53,RZB53,TRB53200310-201301

main89542-36030iBB54,RZB54200310-200701

main89542-36050iXZB53200701-201403

89543SENSOR, SPEED, FRONT LH

main89543-36030iBB54,RZB54200310-200701

main89543-36040iBB53,RZB53,TRB53200310-201301

main89543-36050iXZB53200701-201403

89544SENSOR, SKID CONTROL

main89544-36030iBB5#,RZB5#,TRB53,XZB53200310-201403

4896736010END, SENSOR CONNECTING ROD, NO.1

main48967-36010

4896836010END, SENSOR CONNECTING ROD, NO.2

main48968-36010

9011906077

main90119-06077

9011908A46

main90119-08A46

9011912267

main90119-12267

9017912128

main90179-12128

91611G0820

main91611-G0820

9165140616

main91651-40616

91651B0620

main91651-B0620

91651B0814

main91651-B0814

19 parts on this diagram · 3 diagrams in section
