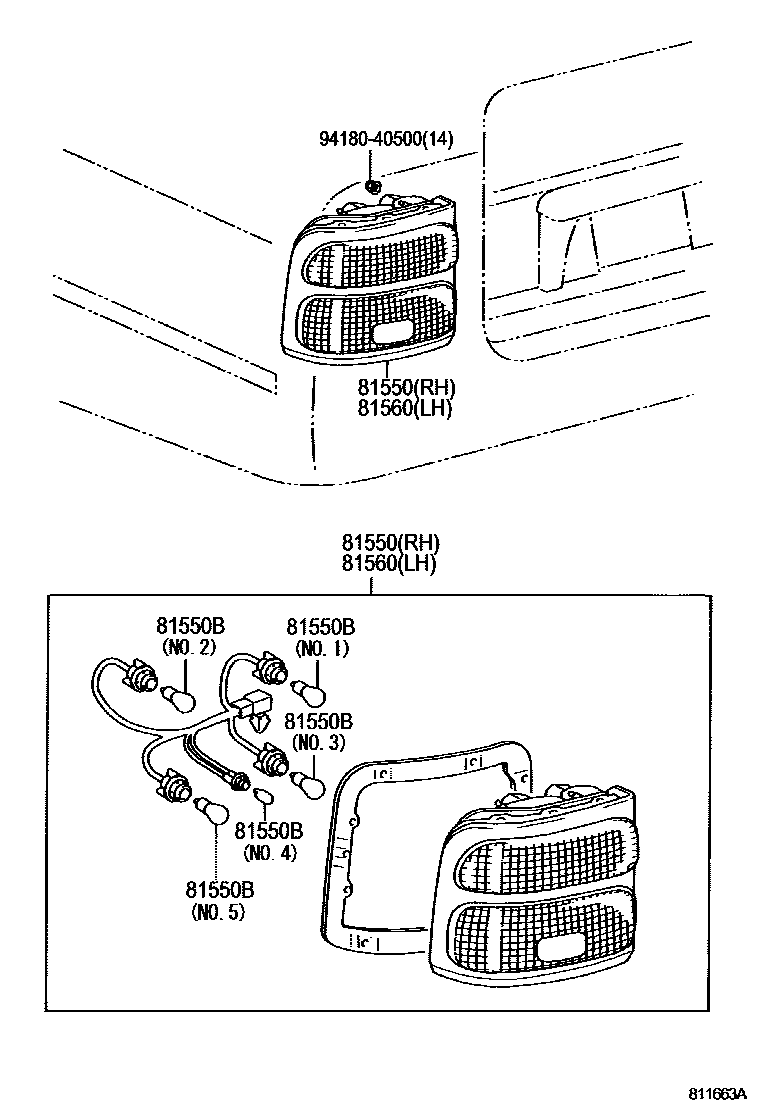

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0S010iTRB53,XZB53..STD200709

main81550-0S020iTRB53,XZB53..EX,LX200709

main81550-36360iBB54200012-200310

main81550-36361iBB54200611-200701

main81550-36370iRZB54200310-200611

main81550-36371iRZB54,TRB53,XZB53..STD200611-200709

main81550-36380iBB53200310-200611

main81550-36381iBB53200611-200701

main81550-36390iRZB53200310-200611

main81550-36391iRZB53200611-200701

main81550-36500iTRB53,XZB53..EX,LX200701-200709

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12015×2iBB5#200012-200310

24V 5W,NO.4

main90981-16014×6iBB5#200310-200701

24V 21W,NO.1 & NO.2 & NO.3

main90981-16015×2iBB5#200012-200310

24V 21/5W,NO.5

main99132-11210×6iRZB5#,TRB53,XZB53200310

12V 21W,NO.1 & NO.2 & NO.3

main99132-12050×2iRZB5#200012-200310

12V 5W,NO.4

main99132-21210×2iRZB5#,TRB53,XZB53200310

12V 21/5W,NO.5

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0S010iTRB53,XZB53..STD200709

main81560-0S020iTRB53,XZB53..EX,LX200709

main81560-36250iBB54200310-200611

main81560-36251iBB54200611-200701

main81560-36260iRZB54200012-200310

main81560-36261iRZB54,TRB53,XZB53..STD200611-200709

main81560-36270iBB53200310-200611

main81560-36271iBB53200611-200701

main81560-36280iRZB53200012-200310

main81560-36281iRZB53200611-200701

main81560-36350iTRB53,XZB53..EX,LX200701-200709

9418040500

main94180-40500

4 parts on this diagram · 1 diagram in section
