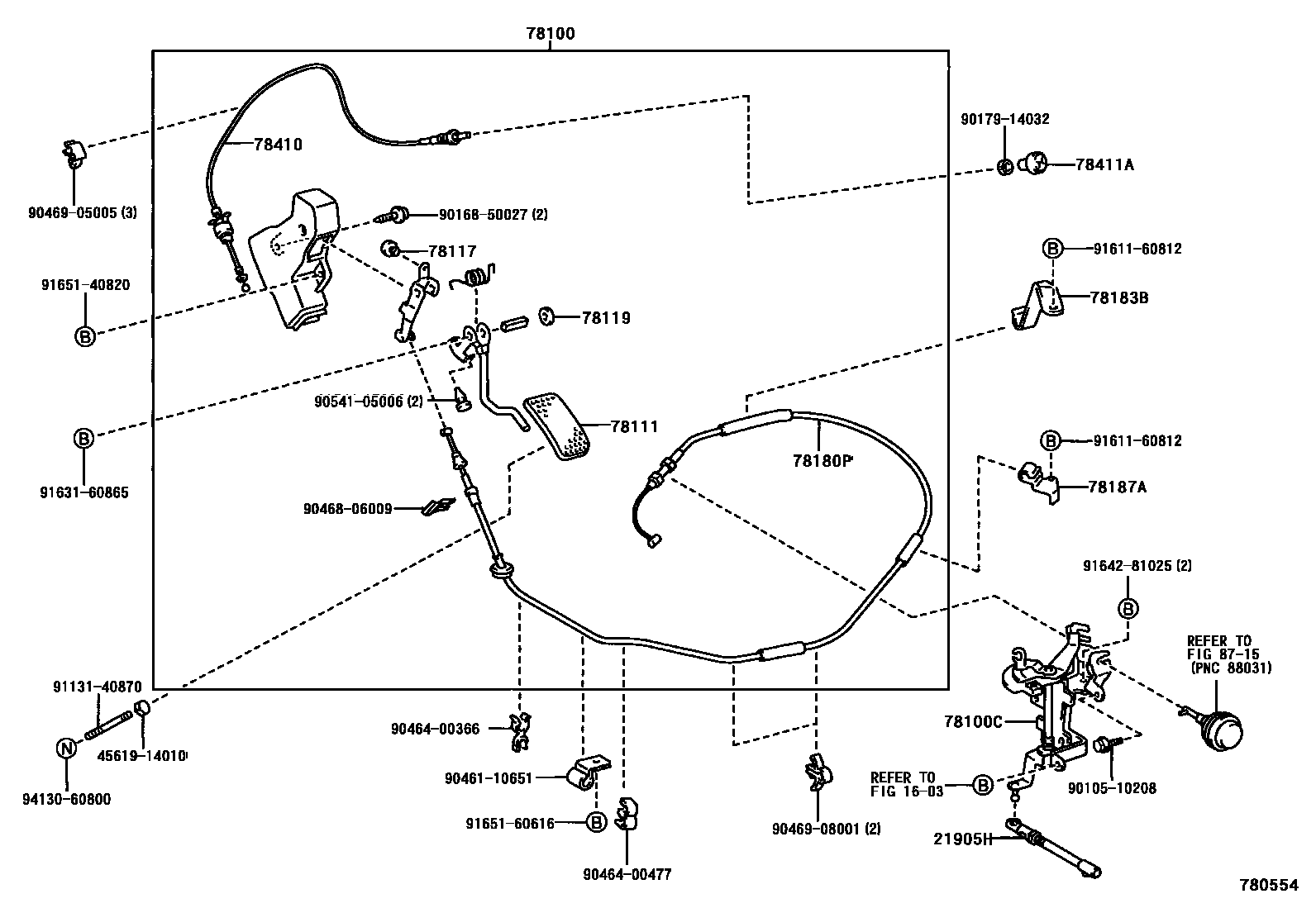

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

21905HROD SUB-ASSY, ACCELERATOR CONNECTING

main21905-58061i15BF..BB5#200012-200310

main21905-58090i15BFT..BB54..29S200310-200701

78100LINK ASSY, ACCELERATOR

main78010-36040iTRB53,XZB53200701

sub78010-36041

main78100-36230iRZB54200012-200701

main78100-36240iRZB53200012-200701

main78100-36250iBB53200012-200310

main78100-36260iBB54200012-200310

main78100-36280iBB54200310-200701

main78100-36290iBB53200310-200701

78100CLINK ASSY, ACCELERATOR, NO.2

main78100-36160iBB54..29S200310-200701

main78100-37680iBB5#200012-200310

78111PEDAL, ACCELERATOR

main78111-95110iBB5#,RZB5#200012-200310

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036iBB5#,RZB5#200012-200701

main90541-06038iTRB53,XZB53200701

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iBB5#,RZB5#200012-200701

sub78119-37010

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-36230iRZB53200012-200701

main78180-36240iRZB54..30S200012-200701

main78180-36250iBB53200012-200310

main78180-36260iBB54200012-200310

main78180-36280iBB54..29S200310-200701

main78180-36290iBB53200310-200701

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-37240iBB5#200012-200310

78187ACLAMP, ACCELERATOR CONTROL CABLE, NO.4

main78187-36030iBB5#200012-200701

78410CABLE ASSY, THROTTLE CONTROL

main78410-36300iBB5#200012-200701

78411AKNOB, THROTTLE CONTROL CABLE

main78402-60030iBB5#200012-200701

8715

4561914010COVER, KNUCKLE STOPPER

main45619-14010

9010510208

main90105-10208

9016850027

main90168-50027

9017914032

main90179-14032

9046110651

main90461-10651

9046400366

main90464-00366

9046400477

main90464-00477

9046806009

main90468-06009

9046905005

main90469-05005

9046908001

main90469-08001

9054105006

main90541-05006

9113140870

main91131-40870

9161160812

main91611-60812

9163160865

main91631-60865

9164281025

main91642-81025

9165140820

main91651-40820

9165160616

main91651-60616

9413060800

main94130-60800

31 parts on this diagram · 6 diagrams in section
