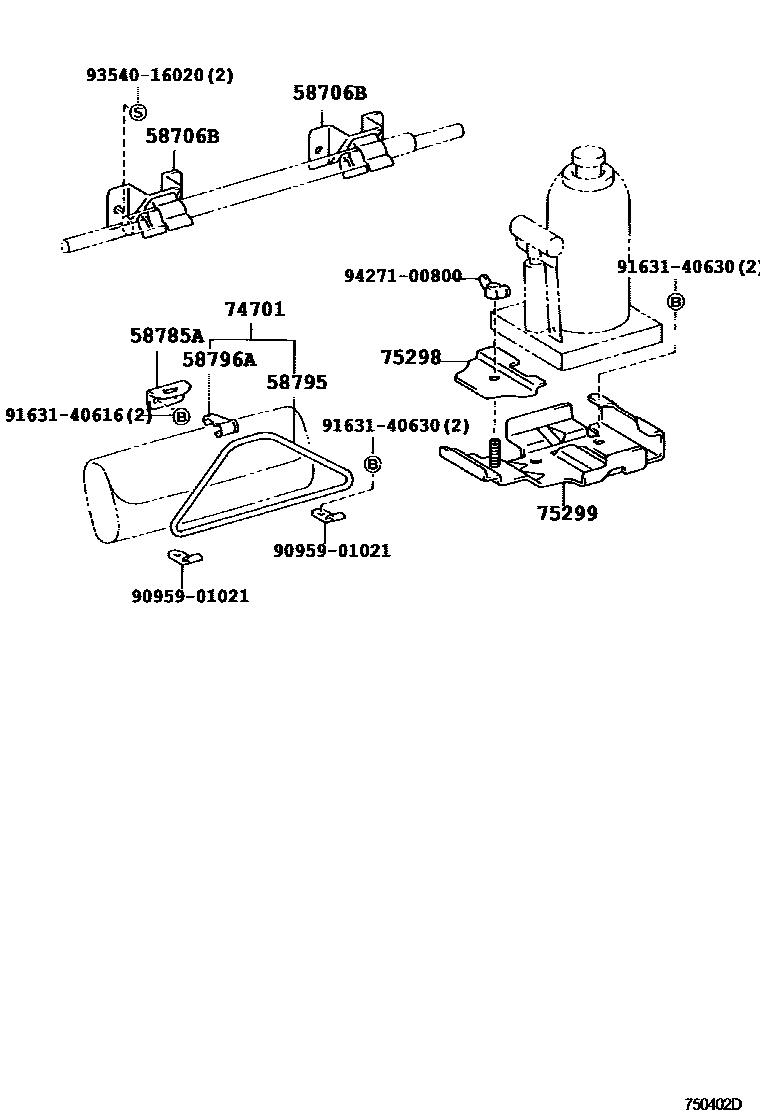

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58706BCLAMP SUB-ASSY, JACK HANDLE

main58706-36010iBB5#,RZB5#200012-200310

58785ABRACKET, TOOL BAG BAND

main58785-36010iTRB53,XZB53201005

main58785-36010-E0iBB5#,RZB5#,TRB53,XZB53200404-201005

GREIGE,TRIM4#

sub58785-36010

main58785-90B00-E0iBB5#,RZB5#200012-200404

GREIGE,TRIM4#

sub58785-90B00

58795BAND, JACK CLAMP, NO.1

main58795-20011iBB5#,RZB5#200012-200310

58796AHOOK, JACK CLAMP

main58796-20012iBB5#,RZB5#200012-200310

74701CLAMP SUB-ASSY, TOOL BAG

main58705-27010iBB5#,RZB5#200012-200310

75298PLATE, JACK HOLDER

main75298-0S010iTRB53,XZB53200710

main75298-36010iBB5#,RZB5#,TRB53,XZB53200012-200710

sub75298-0S010

75299BASE, JACK HOLDER

main75299-36010iBB5#,RZB5#200012-200310

9095901021

main90959-01021

9163140616

main91631-40616

9163140630

main91631-40630

9354016020

main93540-16020

9427100800

main94271-00800

12 parts on this diagram · 2 diagrams in section
