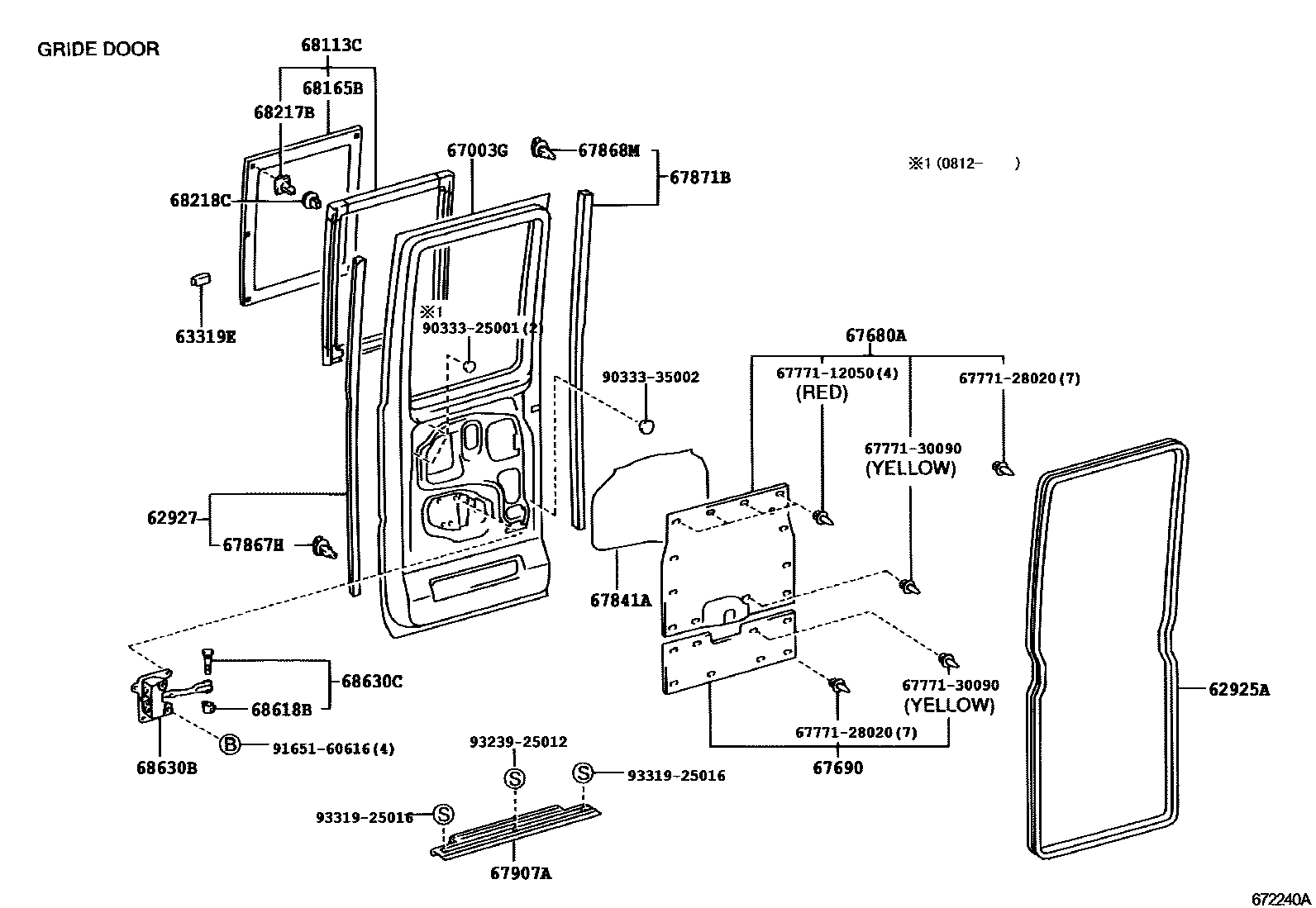

CENTER DOOR PANEL & GLASS
62925AWEATHERSTRIP, GLIDE DOOR SIDE
62927WEATHERSTRIP, GLIDE DOOR OUTER
63319EMOULDING, SLIDE DOOR WINDOW
67680ATRIM ASSY, GRIDE DOOR
GREIGE,TRIM4#
67690TRIM ASSY, GRIDE DOOR, LOWER
GREIGE,TRIM4#
67841ACOVER, GLIDE DOOR SERVICE HOLE
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868MCLIP, DOOR WEATHERSTRIP
67871BWEATHERSTRIP, GLIDE DOOR
67907APLATE SUB-ASSY, CENTER DOOR SCUFF
68113CGLASS, GLIDE DOOR
*TT,T=3.5,GREEN
68165BMOULDING, GLIDE DOOR GLASS
68217BPIN, GLIDE DOOR FIX WINDOW
BLACK
WHITE
ORANGE
68218CBUSH, GLIDE DOOR FIX WINDOW
68618BRETAINER, DOOR CHECK PIN
68630BCHECK ASSY, GLIDE DOOR
68630CPIN(FOR GLIDE DOOR CHECK)
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777128020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-28020
6777130090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30090
9033325001
main90333-25001
9033335002
main90333-35002
9165160616
main91651-60616
9323925012
main93239-25012
9331925016
main93319-25016
26 parts on this diagram · 2 diagrams in section
