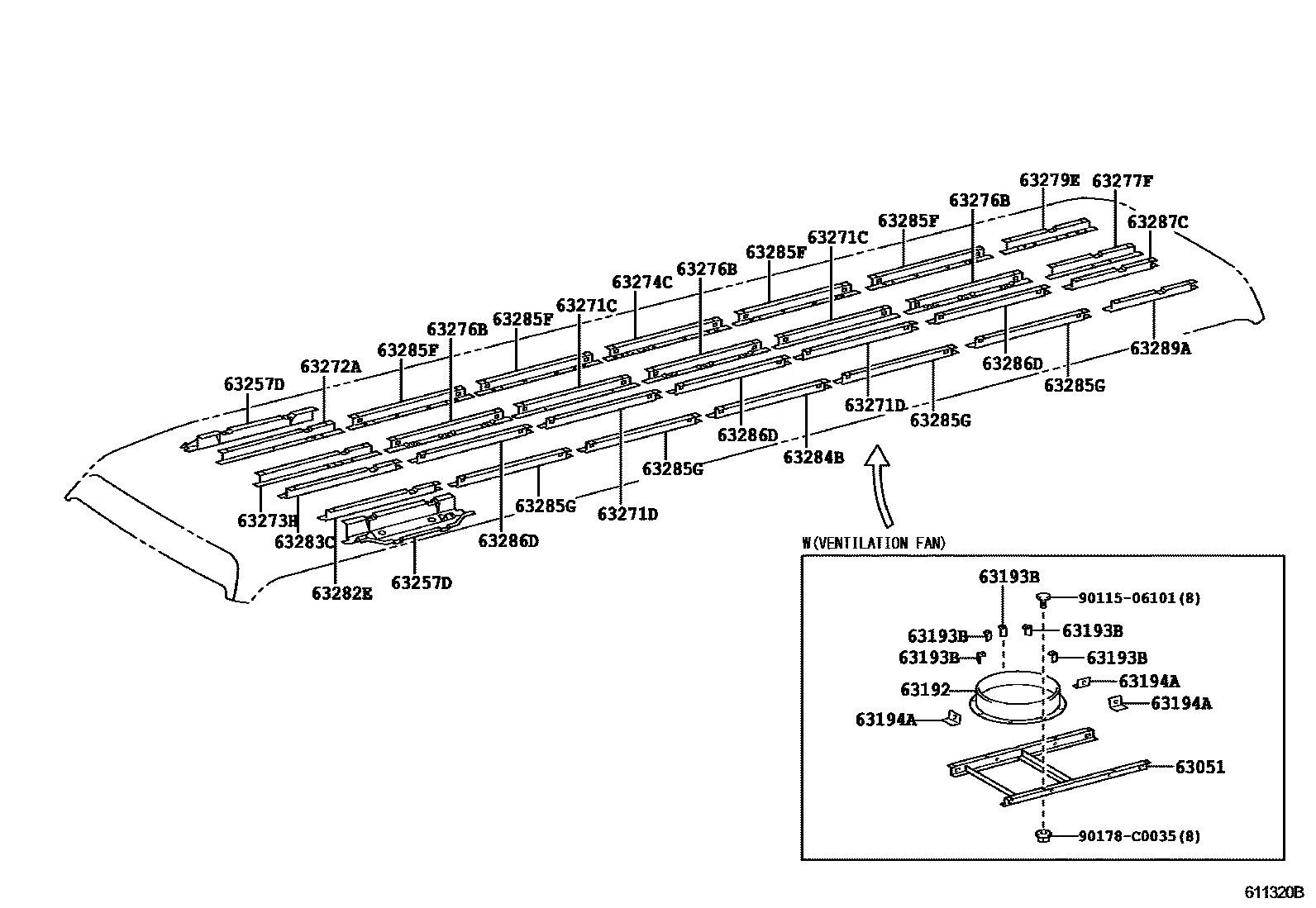

ROOF PANEL & BACK PANEL
63192FLANGE, BOOST VENTILATOR HOLE
63193BBRACKET, BOOST VENTILATOR BLOWER
63194ABRACKET, BOOST VENTIRATOR COVER, NO.1
63257DSTRENGTH, ROOF PANEL, CENTER NO.7 RH
63272ASTRENGTH, ROOF PANEL, NO.2 RH
63273HSTRENGTH, ROOF PANEL, NO.3
63274CSTRENGTH, ROOF PANEL, NO.4 RH
63276BSTRENGTH, ROOF PANEL, NO.6 RH
63277FSTRENGTH, ROOF PANEL, NO.7 RH
63279ESTRENGTH, ROOF PANEL, NO.9 RH
63282ESTRENGTH, ROOF PANEL, NO.2 LH
63283CSTRENGTH, ROOF PANEL, NO.3 LH
63284BSTRENGTH, ROOF PANEL, NO.4 LH
63285FSTRENGTH, ROOF PANEL, NO.5 RH
63285GSTRENGTH, ROOF PANEL, NO.5 LH
63286DSTRENGTH, ROOF PANEL, NO.6 LH
63287CSTRENGTH, ROOF PANEL, NO.7 LH
63289ASTRENGTH, ROOF PANEL, NO.9 LH
9011506101
main90115-06101
90178C0035
main90178-C0035
23 parts on this diagram · 6 diagrams in section
