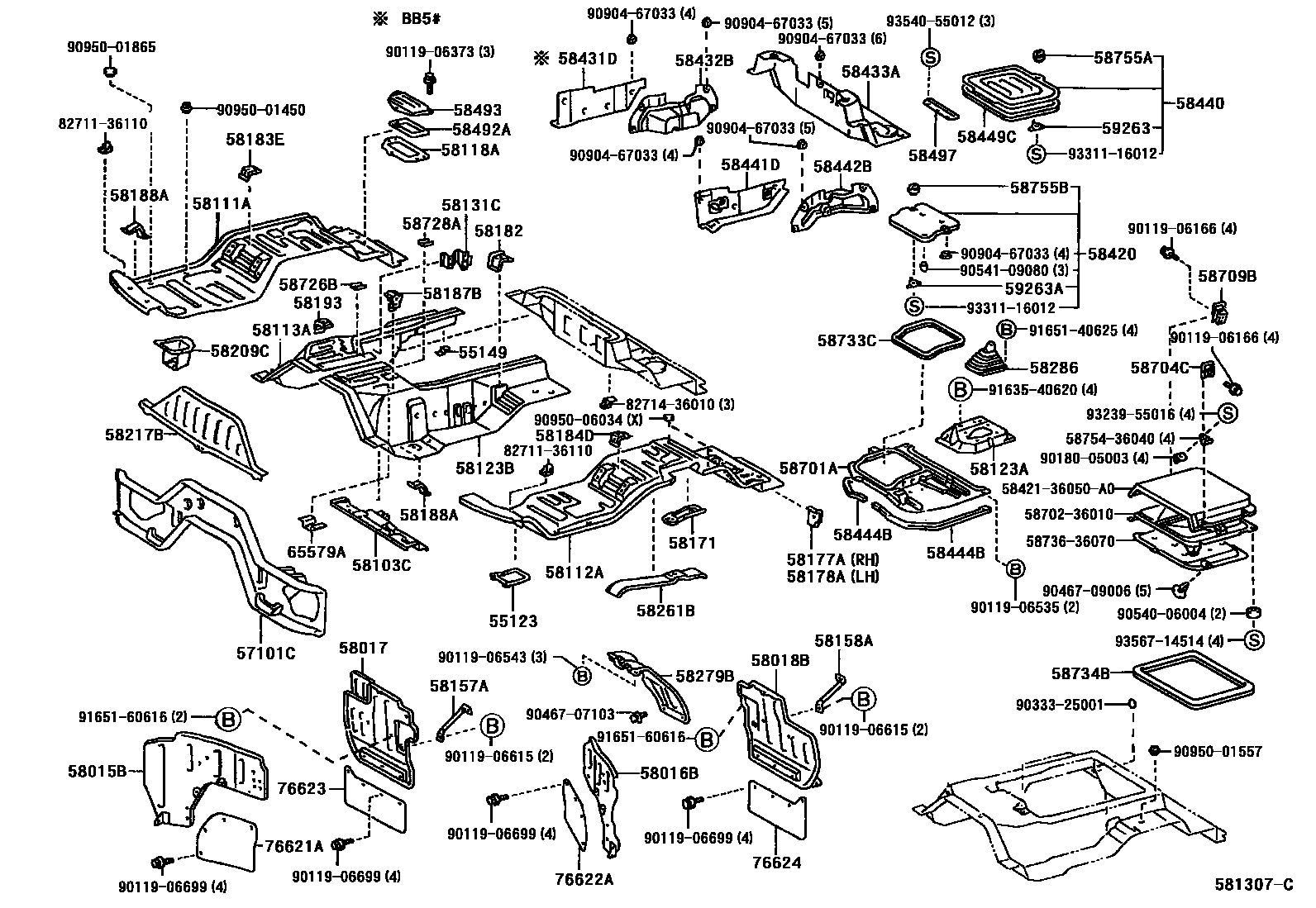

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

55123REINFORCEMENT, STEERING SUPPORT

main55123-36020iBB5#,RZB5#¥920200012-200310

55149BRACKET, DASH WIRING HARNESS

main55149-36010iBB5#,RZB5#¥220200012-200411

main55149-36020iBB5#,RZB5#¥220200411-200701

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-0S010iTRB53,XZB53201104-201108

sub57101-0S020

main57101-0S020iTRB53,XZB53201108

main57101-36050iBB5#,RZB5#200012-200701

main57101-36060iTRB53,XZB53200701-201104

58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH

main58015-0S010iTRB53,XZB53201108

sub58015-0S011

main58015-36020iBB5#,RZB5#,TRB53,XZB53¥4,890200012-200903

sub58015-36021

main58015-36021iTRB53,XZB53200904-201107

58016BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH

main58016-0S010iTRB53,XZB53201108

sub58016-0S011

main58016-36010iBB5#,RZB5#,TRB53,XZB53¥5,100200012-201107

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-0S020iTRB53,XZB53201108

sub58017-0S021

main58017-36050iBB5#,RZB5#,TRB53,XZB53¥7,400200012-201107

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58018-0S010iTRB53,XZB53201108

sub58018-0S011

main58018-36050iBB5#,RZB5#¥6,700200012-201107

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-0S010iTRB53,XZB53201108

main58103-36020iBB5#,RZB5#,TRB53,XZB53¥3,620200012-201107

58111APAN, FRONT FLOOR, RH

main58111-0S010iTRB53,XZB53200701

sub58111-0S020

main58111-36250iBB5#,RZB5#200012-200701

58112APANEL, FRONT FLOOR, LH

main58112-36100iBB5#,RZB5#200012-200701

sub58112-36130

main58112-36130iTRB53,XZB53200701

58113APANEL, FRONT FLOOR, CENTER

main58113-0S010iTRB53,XZB53201010

main58113-36160iBB5#,RZB5#200012-200310

main58113-36161iBB5#,RZB5#,TRB53,XZB53¥14,400200310-201010

58118ARETAINER, ENGINE SERVICE HOLE

main58118-0S010iTRB53,XZB53201108

main58118-36010iBB5#,RZB5#¥1,320200012-201108

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-36090iBB5#,RZB5#¥6,500200012-200404

main58123-36190iBB5#,RZB5#,TRB53,XZB53200404

58123BPANEL, FRONT FLOOR, CENTER LH

main58123-36140iBB5#,RZB5#200012-200310

main58123-36141iBB5#,RZB5#¥17,400200310-200701

main58123-36200iTRB53,XZB53200701

58131CBRACKET, RESERVE TANK SERVICE HOLE COVER

main58131-0S010iTRB53201108

main58131-36010iRZB5#,TRB53¥1,320200012-201107

58157ASTAY, FRONT FLOOR HOUSING, REAR RH

main58157-36030iBB5#,RZB5#¥950200012-200404

main58157-36040iBB5#,RZB5#,TRB53,XZB53200404

58158ASTAY, FRONT FLOOR HOUSING, REAR LH

main58158-36030iBB5#,RZB5#¥950200012-200404

main58158-36040iBB5#,RZB5#,TRB53,XZB53200404

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36020iBB5#,RZB5#¥2,630200012-200802

sub58107-36021

sub90467-07138¥260

main58107-36021iTRB53,XZB53200802

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-36030iBB5#,RZB5#200012-200310

sub58177-0S010

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-36020iBB5#,RZB5#¥1,320200012-200310

sub58178-0S010

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-36030iBB5#,RZB5#¥570200012-200310

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB5#,RZB5#¥820200012-200310

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB5#,RZB5#¥820200012-200310

58187BBRACKET, ACCELERATOR PEDAL ROD

main58187-36010iBB5#,RZB5#¥2,090200012-200310

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36020iBB5#,RZB5#¥400200012-200310

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36010iBB5#,RZB5#¥850200012-201107

sub58193-36011¥530

main58193-36011iTRB53,XZB53¥530201108

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iBB5#,RZB5#,TRB53,XZB53¥1,800200012-200310

58217BPLATE, FRONT FLOOR

main58217-0S010iTRB53,XZB53201104

main58217-36020iBB5#,RZB5#¥7,800200012-201103

58261BREINFORCEMENT, FRONT SEAT, FRONT LH

main58261-36010iBB5#,RZB5#¥1,420200012-200310

58279BCOVER, PARKING BRAKE CABLE, LH

main58279-36010iBB5#,RZB5#¥1,420200012-200310

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-36030iBB5#,RZB5#200012-200310

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-0S020iTRB53,XZB53200809

main58420-36091iBB5#,RZB5#¥17,700200012-200404

main58420-36130iBB54,RZB54200404-200701

sub58420-36150¥6,500

main58420-36150iBB53,RZB53,TRB53,XZB53¥6,500200411-200809

sub58420-0S020

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-0S010iXZB53200809

main58431-0S020iTRB53200809

main58431-36110iBB5#¥3,710200012-200411

main58431-36150iBB5#,XZB53¥1,720200411-200809

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-0S010iTRB53,XZB53200809-201108

main58432-0S020iTRB53,XZB53201108

sub58432-0S021

main58432-36060iBB5#,RZB5#,TRB53,XZB53200411-200809

main58432-36070iBB5#,RZB5#¥3,210200012-200411

sub58432-36060

58433ASILENCER, ENGINE ROOM SIDE END

main58433-36090iBB5#¥10,200200012-200411

sub58433-36140

main58433-36100iRZB5#¥10,300200012-200411

sub58433-36150

main58433-36140iBB53200411-200701

main58433-36150iBB54,RZB5#200411-200701

main58433-36170iXZB53200701

main58433-36180iTRB53200701

58440COVER ASSY, BATTERY SERVICE HOLE

main58440-36050-E0iBB5#,RZB5#200012-200411

GREIGE,TRIM4#

main58440-36051-E0iBB5#,RZB5#200411-200701

GREIGE,TRIM4#

main58440-36080-E0iTRB53,XZB53200701-201403

GREIGE,TRIM4#

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-36110iBB5#,RZB5#¥5,100200012-200411

main58441-36150iBB5#,RZB5#,TRB53,XZB53¥3,180200411

sub58441-36151

58442BSILENCER, ENGING ROOM SIDE, REAR LH

main58442-0S010iTRB53,XZB53200809

sub58442-0S011

main58442-36080iBB5#,RZB5#¥3,210200012-200411

sub58442-36110

main58442-36090iBB54200310-200411

sub58442-36120¥800

main58442-36110iBB53,RZB5#,TRB53,XZB53200411-200809

main58442-36120iBB54¥800200411-200701

58444BPACKING, ENGINE SUB COVER

main58444-36050iBB5#,RZB5#¥800200012-200310

58449CWEATHERSTRIP, BATTERY SERVICE COVER

main58449-36010iBB5#,RZB5#¥5,100200012-200701

main58449-36020iTRB53,XZB53200701

58492APACKING, RELAY BLOCK HOLE COVER

main58492-36010iBB5#,RZB5#¥230200012-200310

58493RETAINER, ENGINE COVER, NO.3

main58493-36010-E0iBB5#,RZB5#200012-200404

GREIGE,TRIM4#

sub58493-36010¥2,100

main58493-36040-E0iBB5#,RZB5#,TRB53,XZB53200404-201403

GREIGE,TRIM4#

sub58493-0S010

58497PLATE, BATTERY SERVICE HOLE COVER LOCK

main58497-36010-E0iBB5#,RZB5#200012-200404

GREIGE,TRIM4#

main58497-36040-E0iBB5#,RZB5#,TRB53,XZB53200404-201403

GREIGE,TRIM4#

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-36150iBB5#¥13,900200012-200310

main58701-36151iBB5#200310-200404

sub58701-36190

main58701-36170iRZB5#¥13,900200012-200404

main58701-36190iBB5#..EX,STD200404-200701

main58701-36200iRZB5#200404-200701

main58701-36220iBB54..STDH200411-200701

main58701-36230iTRB53,XZB53200701

sub58701-0S020

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-0S010iTRB53,XZB53201005

main58704-36040-E0iBB5#,RZB5#200012-200404

GREIGE,TRIM4#

sub58704-36041¥370

sub58704-36040¥610

main58704-36050-E0iBB5#,RZB5#,TRB53,XZB53200404-201004

GREIGE,TRIM4#

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36030-E0iBB5#,RZB5#200012-201004

GREIGE,TRIM4#

sub58709-36031¥2,230

sub58709-36030¥3,550

main58709-36031iTRB53,XZB53¥2,230201005

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iBB5#,RZB5#¥220200012-200310

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iBB5#,RZB5#¥290200012-200310

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-0S010iTRB53,XZB53200904

main58733-36060iBB5#,RZB5#,TRB53,XZB53¥4,080200012-200903

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-0S010iTRB53,XZB53200904

main58734-36080iBB5#,RZB5#,TRB53,XZB53200012-200904

sub58734-0S010

58755AHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iBB5#,RZB5#¥570200012-200411

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iBB5#,RZB5#¥570200012-200310

59263HOOK, ENGINE COVER LOCK

main59263-95D00iBB5#,RZB5#¥180200012-200411

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iBB5#,RZB5#,TRB53,XZB53¥180200012-200310

65579ABRACKET, HEATER PIPE

main65579-36010iBB5#,RZB5#¥310200012-200310

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-36040iBB5#,RZB5#200012-200310

main76621-36050iBB5#,RZB5#200012-200310

COLD SPEC

main76621-36050iBB5#,RZB5#,TRB53,XZB53200310

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-36030iBB5#,RZB5#200012-200310

main76622-36040iBB5#,RZB5#200012-200310

COLD SPEC

main76622-36040iBB5#,RZB5#,TRB53,XZB53200310

76623MUDGUARD, FRONT BODY, REAR RH

main76623-36030iBB5#,RZB5#200012-200310

76624MUDGUARD, FRONT BODY, REAR LH

main76624-36030iBB5#,RZB5#200012-200310

5842136050A0COVER ASSY, ENGINE FRONT

main58421-36050A0

5870236010PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH

main58702-36010

5873636070SILENCER, ENGINE SERVICE COVER, REAR

main58736-36070¥3,510

5875436040PLATE, ENGINE SERVICE COVER CATCH

main58754-36040¥270

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110¥190

8271436010

main82714-36010¥220

9011906166

main90119-06166¥80

9011906373

main90119-06373¥100

9011906535

main90119-06535¥120

9011906543

main90119-06543¥70

9011906615

main90119-06615¥160

9011906699

main90119-06699¥70

9018005003

main90180-05003¥90

9033325001

main90333-25001¥140

9046707103

main90467-07103¥160

9046709006

main90467-09006¥110

9054006004

main90540-06004¥300

9054109080

main90541-09080¥190

9090467033

main90904-67033¥80

9095001450

main90950-01450¥210

9095001557

main90950-01557¥200

9095001865

main90950-01865¥100

9095006034

main90950-06034¥270

9163540620

main91635-40620¥60

9165140625

main91651-40625¥70

9165160616

main91651-60616¥100

9323955016

main93239-55016¥70

9331116012

main93311-16012¥90

9354055012

main93540-55012¥60

9356714514

main93567-14514¥70

89 parts on this diagram · 5 diagrams in section
