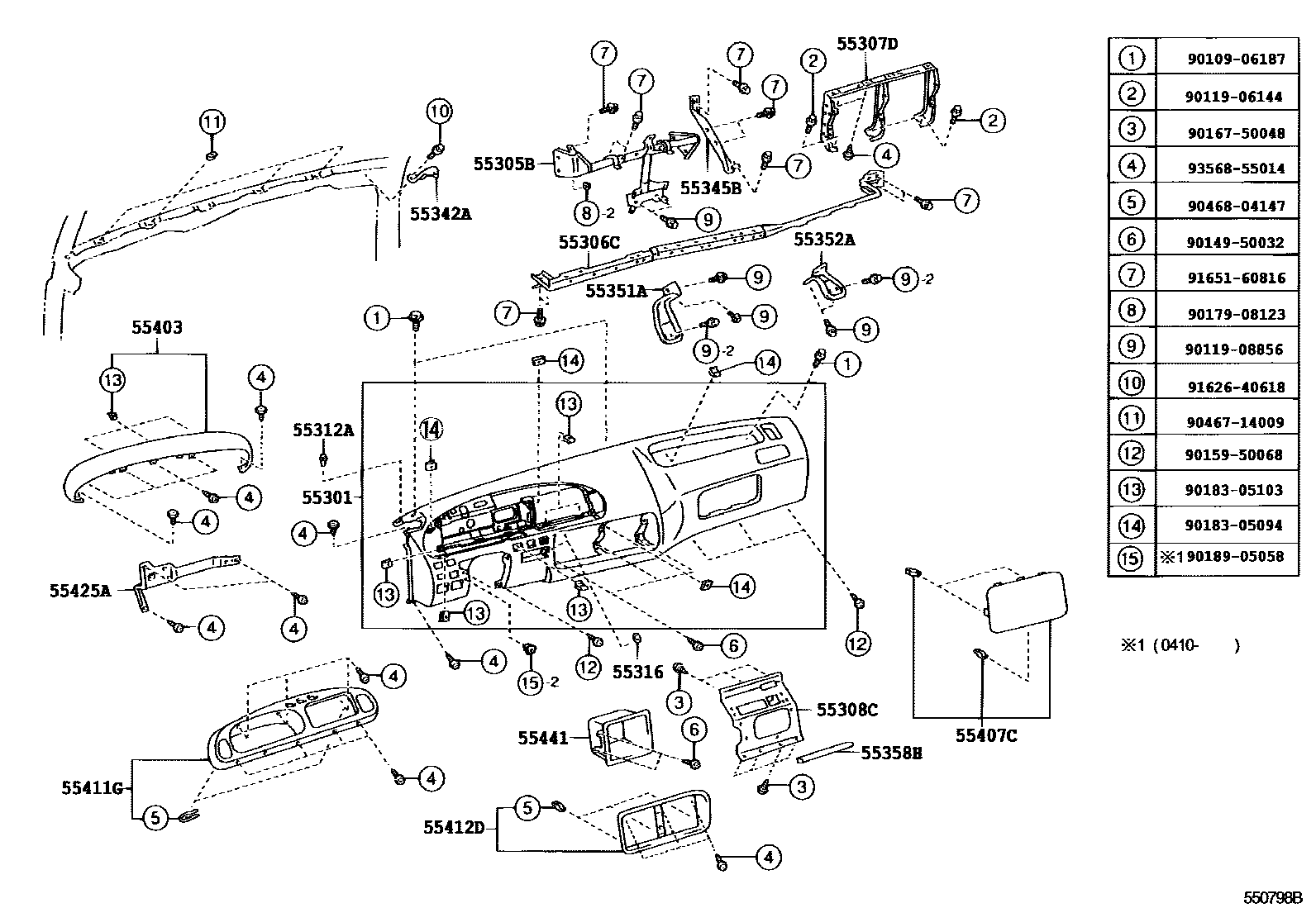

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0S010-E0iTRB53,XZB53201108-201201

GREIGE,TRIM4#

sub55301-0S011

main55301-0S011-E0iTRB53,XZB53201202-201403

GREIGE,TRIM4#

sub55301-0S012

main55301-36020-E0iBB5#,RZB5#200012-200706

GREIGE,TRIM4#

sub55301-36021

main55301-36021-E0iTRB53,XZB53200707-200805

GREIGE,TRIM4#

sub55301-36022

main55301-36022-E0iTRB53,XZB53200806-200812

GREIGE,TRIM4#

sub55301-36023

main55301-36023-E0iTRB53,XZB53200901-201108

GREIGE,TRIM4#

sub55301-36024

main55301-36080iBB54,RZB54..29S,30S200410-200411

main55301-36080-E0iBB5#,RZB5#..20S,23S,24S200410-200701

GREIGE,TRIM4#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-36021iBB5#,RZB5#¥8,500200012-200705

sub55305-36022

main55305-36022iTRB53,XZB53200706

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-36040iBB5#,RZB5#¥7,700200012-200612

sub55306-36042

main55306-36042iTRB53,XZB53200701-200705

sub55306-36043

main55306-36043iTRB53,XZB53200706-201108

sub55306-36044

main55306-36044iTRB53,XZB53201108-201203

sub55306-36045

main55306-36045iTRB53,XZB53201204

55307DREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3

main55307-36010iBB5#,RZB5#¥4,540200012-201108

main55307-36030iTRB53,XZB53201108

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-36020iBB5#,RZB5#¥3,080200012-200708

sub55308-36021

main55308-36021iTRB53,XZB53200709-201209

sub55308-36022

main55308-36022iTRB53,XZB53201210

sub55308-36023

55312ACLIP, INSTRUMENT PANEL

main90467-07071-E3iBB5#,RZB5#200012-201403

GREIGE,TRIM4#

sub90467-07071¥110

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-36010iBB54,RZB54..29S,30S¥160200012-201108

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-36040iBB5#,RZB5#,TRB53,XZB53¥470200012-200310

55345BBRACE, INSTRUMENT PANEL TO COWL, NO.4

main55345-36010iBB5#,RZB5#¥950200012-200310

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-36020iBB5#,RZB5#¥780200012-200310

sub55351-36021

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-36020iBB5#,RZB5#¥610200012-200310

sub55352-36021

55358HPROTECTOR, INSTRUMENT PANEL

main55358-36010iBB5#,RZB5#¥260200012-200310

55403HOOD SUB-ASSY, METER

main55421-0S010-E0iTRB53,XZB53201108-201403

GREIGE,TRIM4#

sub55421-0S011

main55421-36020-E0iBB5#,RZB5#200012-201108

GREIGE,TRIM4#

sub55421-36021

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-0S010-E0iTRB53,XZB53201108-201403

GREIGE,TRIM4#

main55407-36020-E0iBB5#,RZB5#200012-201108

GREIGE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-0S010iTRB53,XZB53201108

sub55411-0S011

main55411-36020iBB5#,RZB5#,TRB53,XZB53¥11,800200012-201108

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-0S010-E0iTRB53,XZB53201108-201403

GREIGE,TRIM4#

sub55412-0S011

main55412-36011-E0iBB5#,RZB5#,TRB53,XZB53200012-200708

GREIGE,TRIM4#

sub55412-36012¥3,400

main55412-36012-E0iTRB53,XZB53200709-201108

GREIGE,TRIM4#

55425ABRACKET, METER HOOD SET

main55425-0S010iTRB53,XZB53201108

main55425-36020iBB5#,RZB5#¥1,050200012-201108

55441BOX, INSTRUMENT PANEL

main55441-36010iBB5#,RZB5#¥6,300200012-201108

9010906187

main90109-06187¥300

9011906144

main90119-06144¥80

9011908856

main90119-08856¥140

9014950032

main90149-50032¥80

9015950068

main90159-50068¥70

9016750048

main90167-50048¥70

9017908123

main90179-08123¥160

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9018905058

main90189-05058¥80

9046714009

main90467-14009¥90

9046804147

main90468-04147¥70

9162640618

main91626-40618¥90

9165160816

main91651-60816¥100

9356855014

main93568-55014¥70

33 parts on this diagram · 4 diagrams in section
