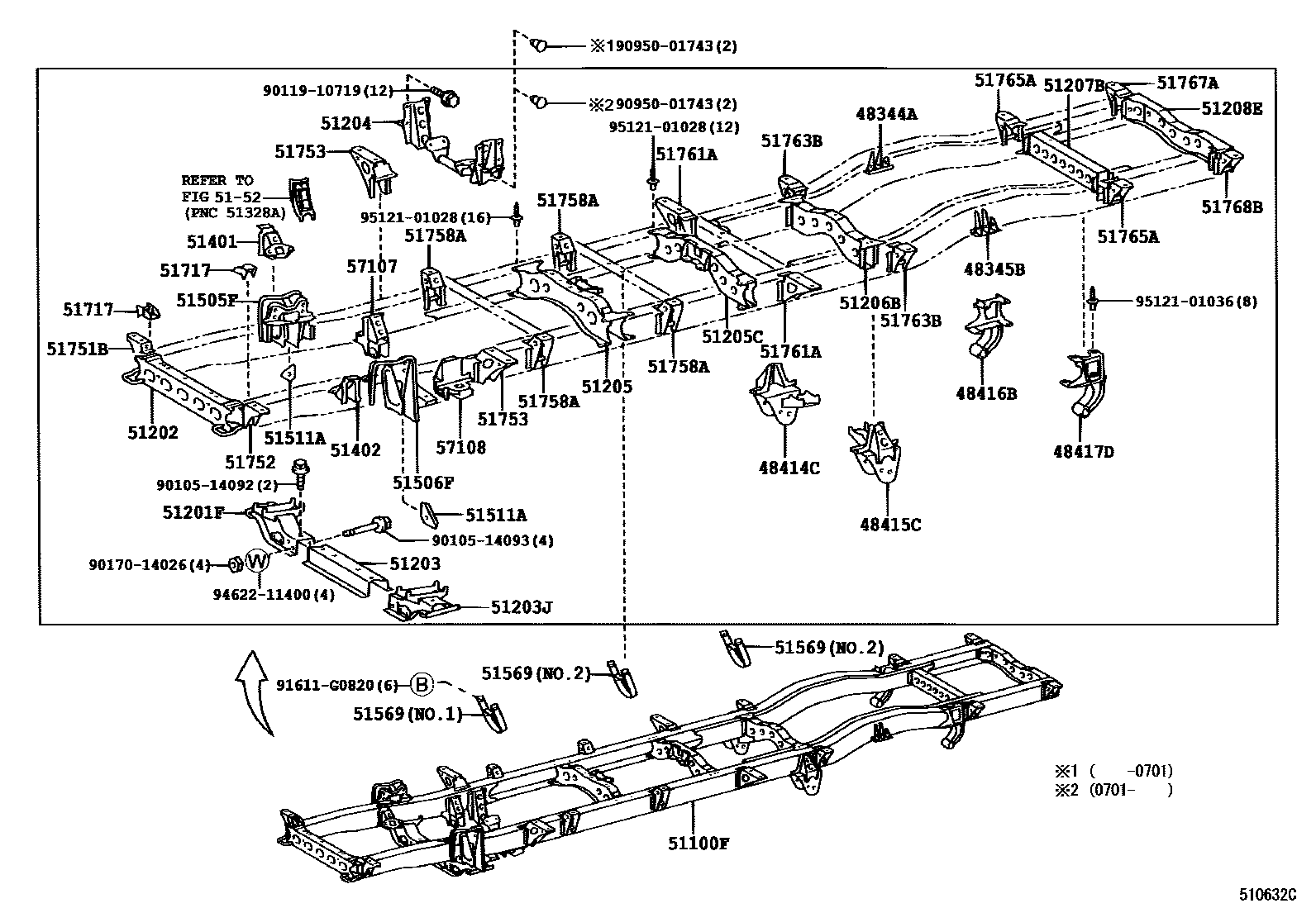

FRAME

0001 1 0002 1

48344ASTOPPER, BUMPER, REAR RH

main48344-36460iBB5#,RZB5#200012-200310

48345BSTOPPER, BUMPER, REAR LH

main48345-36070iBB5#,RZB5#200012-200310

48414CBRACKET, SPRING, NO.3 RH

main48414-0S010iTRB53,XZB53201102

main48414-36330iBB5#,RZB5#200012-200404

main48414-36360iBB5#,RZB5#,TRB53,XZB53200404-201102

48415CBRACKET, SPRING, NO.3 LH

main48415-0S010iTRB53,XZB53201102

main48415-36110iBB5#,RZB5#200012-200404

main48415-36120iBB5#,RZB5#,TRB53,XZB53200404-201102

48416BBRACKET, SPRING, NO.4 RH

main48416-0S010iTRB53,XZB53201102

main48416-36330iBB5#,RZB5#200012-201102

48417DBRACKET, SPRING, NO.4 LH

main48417-0S010iTRB53,XZB53201102

main48417-36200iBB5#,RZB5#,TRB53,XZB53200012-201102

51100FFRAME SUB-ASSY

main51001-0S010iXZB53201108-201310

main51001-0S020iTRB53201108-201212

sub51001-0S021

sub48046-0S010

sub48047-0S010

sub48812-0S010

sub48823-0S010

sub48830-0S010

sub90119-C0267

sub94151-21241

main51001-0S030iXZB53201102-201108

sub51001-0S010

main51001-0S040iTRB53201102-201108

sub51001-0S020

main51001-0S060iXZB53201311

main51001-36A80iXZB53200701-201102

main51001-36A90iTRB53200701-201102

main51001-3C090iBB54200012-200701

main51001-3C100iRZB54200012-200701

main51001-3C110iBB53200012-200701

main51001-3C120iRZB53200012-200701

51201FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-36220iBB53,RZB53200012-201207

sub51201-36221

main51201-36221iTRB53,XZB53201208

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36210iBB5#,RZB5#200012-200310

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-36200iBB54,RZB54200012-200701

main51202-36210iBB53,RZB53200012-200701

main51202-36211iTRB53,XZB53200701

51203JCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LH

main51203-36380iBB53,RZB53200012-201207

sub51203-36381

main51203-36381iTRB53,XZB53201208

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36320iBB53,RZB53200012-200701

main51203-36340iTRB53,XZB53200701

main51203-36350iRZB54200012-200701

main51203-36370iBB54200012-200701

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-36220iTRB53200012-201310

sub51204-36221

main51204-36221iXZB53201311

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-36200iBB5#,RZB5#200012-201310

sub51205-36201

main51205-36202iXZB53201311

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-36130iBB5#,RZB5#200012-200310

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-36150iBB5#,RZB5#200012-200310

51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8

main51208-36060iBB5#,RZB5#200012-200310

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-0S010iXZB53201102

main51421-0S020iTRB53201102-201301

main51421-36210iBB53200012-201102

main51421-36220iRZB53200012-201102

main51421-36230iBB54200012-200701

main51421-36240iRZB54200012-200701

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51421-0S010iXZB53201102

main51421-0S020iTRB53201102-201301

main51421-36210iBB53,XZB53200012-201102

main51421-36220iRZB53,TRB53200012-201102

main51422-36160iBB54200012-200701

main51422-36170iRZB54200012-200701

51505FSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-36030iBB53,RZB53200012-200310

51506FSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-36120iBB53,RZB53,TRB53,XZB53200012-200310

51511ASEAT, FRONT SPRING SUPPORT

main51511-36080iBB53,RZB53,TRB53,XZB53200012-200310

5152

51569GUARD, PROPELLER SHAFT

main51569-0S010iTRB53,XZB53201104

NO.2

main51569-0S020iTRB53,XZB53201104

NO.1

main51569-36180iBB5#,RZB5#,TRB53,XZB53200012-201104

NO.2

main51569-36190iBB5#,RZB5#200012-201104

NO.1

51717PLATE, BODY SUPPORT BRACKET

main51717-36010iBB5#,RZB5#,TRB53,XZB53200012-200310

51751BBRACKET, BODY SUPPORT, NO.1 RH

main51751-36090iBB5#,RZB5#200012-200310

51752BRACKET, BODY SUPPORT, NO.1 LH

main51752-36010iBB5#,RZB5#200012-200310

51753BRACKET, BODY SUPPORT, NO.2

main51753-0S010iTRB53,XZB53201108

main51753-36051iBB53,RZB53200012-201108

main51753-36080iBB54,RZB54200012-200701

RH

main51754-36030iBB54,RZB54200012-200701

LH

51758ABRACKET, BODY SUPPORT, NO.4 LH

main51758-0S010iTRB53,XZB53201108

main51758-36020iBB5#,RZB5#,TRB53,XZB53200012-201108

51761ABRACKET, BODY SUPPORT, NO.5 RH

main51761-36041iBB5#,RZB5#,TRB53,XZB53200012-200310

51763BBRACKET, BODY SUPPORT, NO.6

main51763-36061iBB54,RZB54..29S,30S200012-201102

51765ABRACKET, FRAME BODY MOUNTING, NO.7 RH

main51765-0S010iTRB53,XZB53201102

main51765-36051iBB5#,RZB5#200012-201102

51767ABRACKET, FRAME BODY MOUNTING, NO.8 RH

main51767-0S010iTRB53,XZB53201102

main51767-36150iBB5#,RZB5#200012-201102

sub51767-36151

51768BREINFORCEMENT, BODY SUPPORT BRACKET, LH

main51767-0S010iTRB53,XZB53201102

main51767-36150iBB5#,RZB5#200012-201102

sub51767-36151

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57121-36020iBB53,RZB53200012-200310

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57122-36020iBB53,RZB53200012-200310

9010514092

main90105-14092

9010514093

main90105-14093

9011910719

main90119-10719

9017014026

main90170-14026

9095001743

main90950-01743

91611G0820

main91611-G0820

9462211400

main94622-11400

9512101028

main95121-01028

9512101036

main95121-01036

45 parts on this diagram · 2 diagrams in section
