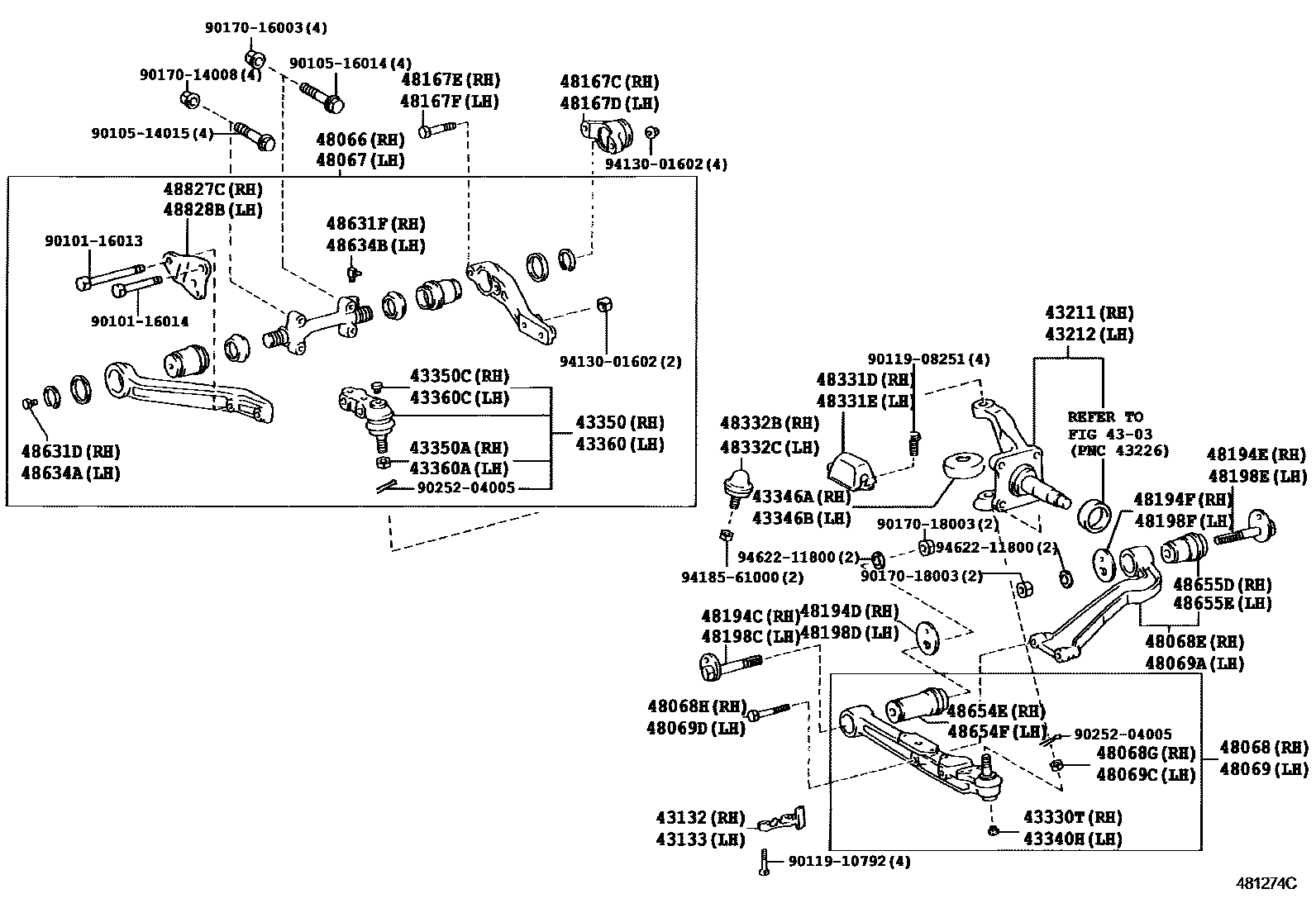

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

4303

43132STOPPER, STEERING KNUCKLE, RH

main43132-36080iBB53,RZB53200012-200310

sub43132-36081

43133STOPPER, STEERING KNUCKLE, LH

main43133-36040iBB53,RZB53,TRB53,XZB53200012-200310

sub43133-36041

43211KNUCKLE, STEERING, RH

main43201-36120iBB54,RZB54200012-200310

main43201-36130iBB54,RZB54200310-200701

main43211-36900iBB53,RZB53200012-200210

sub43211-36902

sub45611-36241

main43211-36902iBB53,RZB53200210-200310

sub43211-36905

main43211-36906iBB53,RZB53,TRB53,XZB53200310

43212KNUCKLE, STEERING, LH

main43202-36110iBB54,RZB54200012-200310

main43202-36120iBB54,RZB54200310-200701

main43212-36900iBB53,RZB53200012-200210

sub43212-36902

sub45612-36151

main43212-36902iBB53,RZB53200210-200310

sub43212-36905

main43212-36906iBB53,RZB53,TRB53,XZB53200310

43330TPLUG (FOR FRONT LOWER BALL JOINT RH)

main90345-06014iBB53,RZB53200012-200503

43340HPLUG (FOR FRONT LOWER BALL JOINT LH)

main90345-06014iBB53,RZB53200012-200310

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-36010iBB53,RZB53200012-200310

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-36010iBB53,RZB53200012-200310

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39095iBB53,RZB53200012-200310

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-20001iBB53,RZB53200012-200310

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iBB53,RZB53200012-200501

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39095iBB53,RZB53200012-200310

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-20001iBB53,RZB53200012-200310

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iBB53,RZB53200012-200501

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-36050iBB53,RZB53,TRB53,XZB53200501

main48601-39025iBB53,RZB53200012-200501

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-36040iBB53,RZB53,TRB53,XZB53200501

main48602-39025iBB53,RZB53200012-200501

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-39015iBB53,RZB53,TRB53,XZB53200012-200310

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48607-36010iBB53,RZB53200012-200503

main48607-36020iBB53,RZB53,TRB53,XZB53200503

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90171-22001iBB53,RZB53,TRB53,XZB53200012-200310

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90901-01002iBB53,RZB53200012-200310

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-39015iBB53,RZB53200012-200310

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48607-36010iBB53,RZB53200012-200503

main48607-36020iBB53,RZB53,TRB53,XZB53200503

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90171-22001iBB53,RZB53200012-200310

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90901-01002iBB53,RZB53,TRB53,XZB53200012-200310

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-36020iBB53,RZB53200012-200501

main48106-36040iBB53,RZB53,TRB53,XZB53200501

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-36020iBB53,RZB53200012-200501

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90101-16012iBB53,RZB53200012-200310

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90101-16012iBB53,RZB53200012-200310

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-36010iBB53,RZB53200012-200310

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-36020iBB53,RZB53200012-200310

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main48190-36020iBB53,RZB53200012-200310

48194FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH

main48198-36020iBB53,RZB53200012-200310

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-36010iBB53,RZB53200012-200310

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-36020iBB53,RZB53,TRB53,XZB53200012-200310

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main48190-36020iBB53,RZB53200012-200310

48198FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH

main48198-36020iBB53,RZB53200012-200310

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-0S020iTRB53,XZB53201108

main48304-36140iBB53,RZB53200012-200106

main48304-36170iBB53,RZB53,TRB53,XZB53200106-201108

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-0S020iTRB53,XZB53201108

main48304-36140iBB53,RZB53200012-200106

main48304-36170iBB53,RZB53,TRB53,XZB53200106-201108

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-0S020iTRB53,XZB53201108

main48332-36030iBB53,RZB53200012-201108

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-0S020iTRB53,XZB53201108

main48332-36030iBB53,RZB53,TRB53,XZB53200012-201108

48631DPLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main90345-06014iBB53,RZB53200012-200310

48631FFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main96459-00609iBB53,RZB53200012-200310

48634APLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main90345-06014iBB53,RZB53200012-200310

48634BFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main96459-00609iBB53,RZB53200012-200310

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-36020iBB53,RZB53200012-200310

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-36020iBB53,RZB53200012-200310

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-36010iBB53,RZB53200012-200310

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-36010iBB53,RZB53200012-200310

48827CBRACKET, STABILIZER, NO.2 RH

main48827-36060iBB53,RZB53200012-200501

main48827-36080iBB53,RZB53,TRB53,XZB53200501

48828BBRACKET, STABILIZER, NO.2 LH

main48828-36040iBB53,RZB53200012-200501

main48828-36060iBB53,RZB53,TRB53,XZB53200501

9010116013

main90101-16013

9010116014

main90101-16014

9010514015

main90105-14015

9010516014

main90105-16014

9011908251

main90119-08251

9011910792

main90119-10792

9017014008

main90170-14008

9017016003

main90170-16003

9017018003

main90170-18003

9025204005

main90252-04005

9413001602

main94130-01602

9418561000

main94185-61000

9462211800

main94622-11800

64 parts on this diagram · 3 diagrams in section
