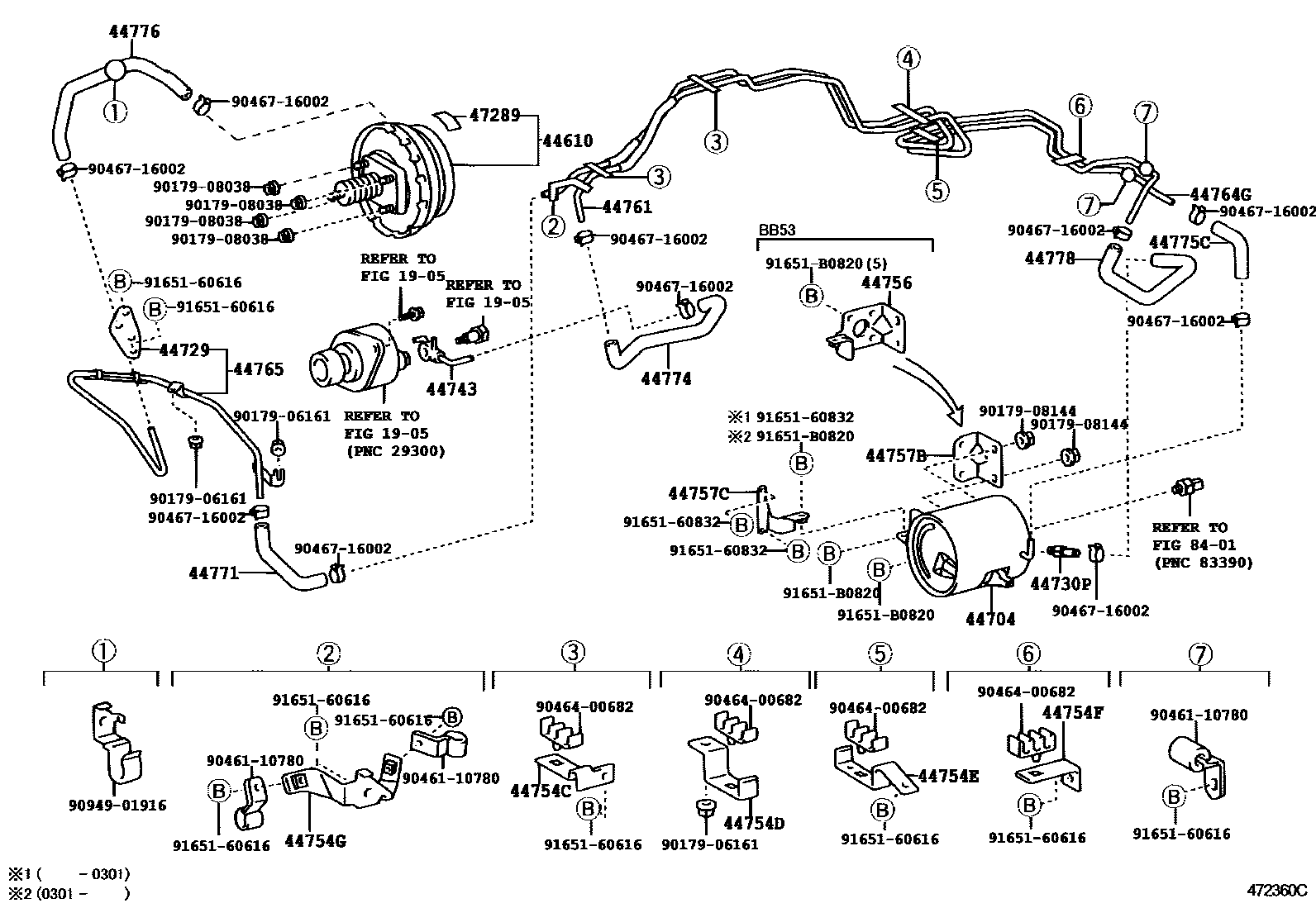

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44704RESERVOIR SUB-ASSY, VACUUM
44729GASKET, VACUUM TUBE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730PVALVE ASSY, VACUUM CHECK, NO.1
44743UNION(FOR VACUUM PUMP)
44754CBRACKET, VACUUM TUBE, NO.1
44754DBRACKET, VACUUM TUBE, NO.2
44754EBRACKET, VACUUM TUBE, NO.3
44754FBRACKET, VACUUM TUBE, NO.4
44754GBRACKET, VACUUM TUBE, NO.5
44756BRACKET, VACUUM RESERVOIR
44757BBRACKET, VACUUM TANK CLAMP, NO.2
44757CBRACKET, VACUUM TANK CLAMP, NO.1
44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
NO.1
NO.2
NO.2
44764GTUBE, CONNECTOR TO BRAKE BOOSTER
44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44778HOSE, CONNECTOR TO CHECK VALVE
47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
8401
9017906161
main90179-06161
9017908038
main90179-08038
9017908144
main90179-08144
9046110780
main90461-10780
9046400682
main90464-00682
9046716002
main90467-16002
9094901916
main90949-01916
9165160616
main91651-60616
9165160832
main91651-60832
91651B0820
main91651-B0820
35 parts on this diagram · 6 diagrams in section
