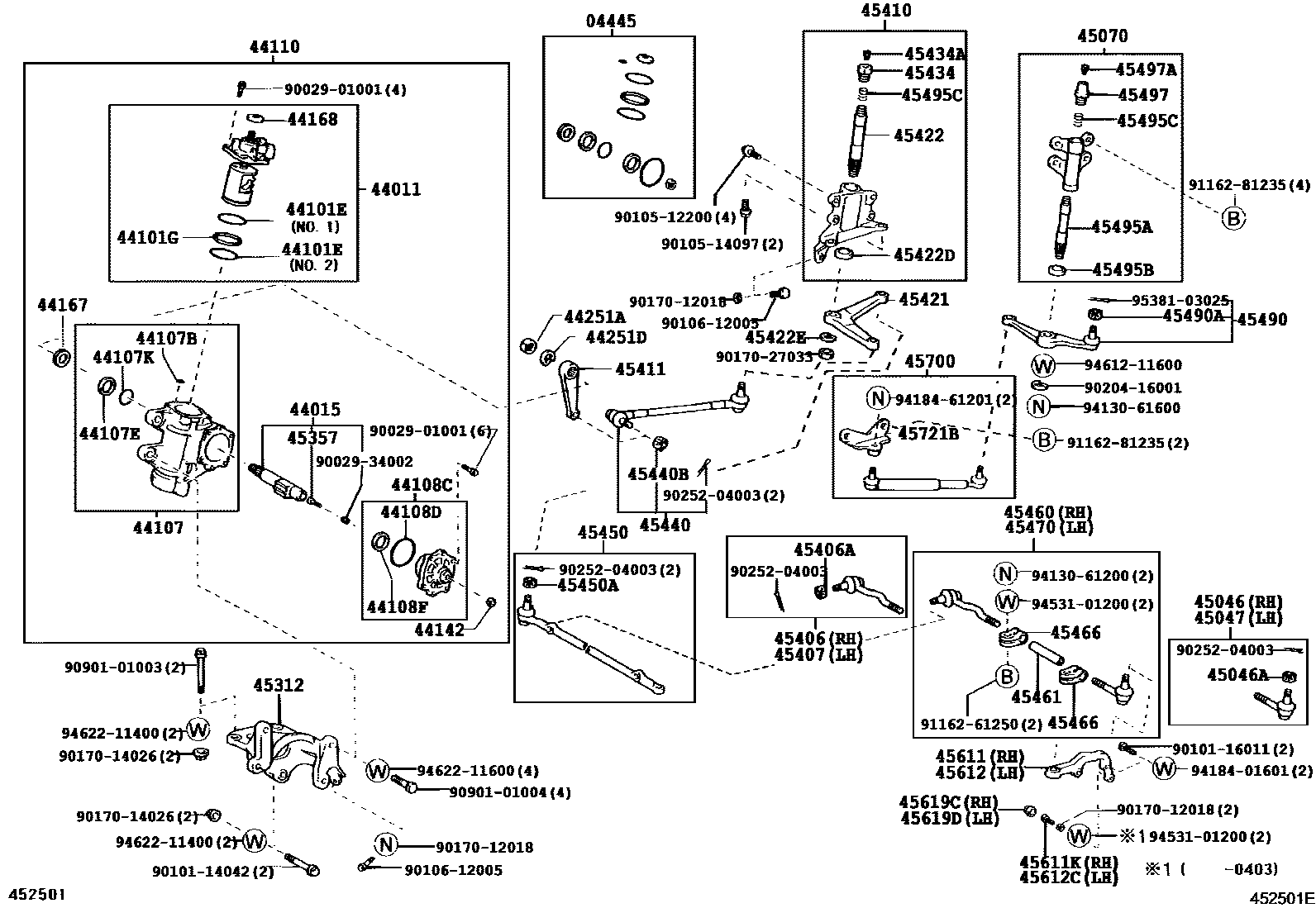

FRONT STEERING GEAR & LINK
04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
44011PISTON SUB-ASSY, POWER
44015SHAFT SUB-ASSY, SECTOR
44101ERING, O(FOR STEERING WORM)
NO.1
NO.2
44101GSEAL, DUST(FOR STEERING WORM)
44107HOUSING SUB-ASSY, POWER STEERING GEAR
44107BRING, O(FOR POWER STEERING GEAR HOUSING)
44107ESEAL, OIL(FOR POWER STEERING GEAR HOUSING)
44107KRING, O(FOR POWER STEERING GEAR HOUSING)
44108CCOVER SUB-ASSY, SECTOR
44108DRING, O(FOR SECTOR COVER)
44108FSEAL, DUST(FOR SECTOR COVER)
44110GEAR ASSY, POWER STEERING
44142NUT, LOCK
44167COVER, SECTOR SHAFT DUST
44168COVER, WORM SHAFT DUST
44251ANUT, CASTLE(FOR PITMAN ARM)
44251DWASHER(FOR PITMAN ARM)
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45070BRACKET ASSY, IDLER ARM
45312BRACKET, STEERING GEAR HOUSING
45357SCREW, SECTOR SHAFT ADJUSTING
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45410BRACKET ASSY, CENTER ARM
sub45410-36041
45411ARM, PITMAN
45421ARM, STEERING CENTER
45422SHAFT, CENTER ARM
45422DSEAL(FOR CENTER ARM SHAFT)
45422EWASHER(FOR CENTER ARM SHAFT)
45434CAP, CENTER ARM BRACKET
sub45434-36011
45434APLUG(FOR CENTER ARM BRACKET CAP)
45440LINK ASSY, STEERING DRAG
45440BNUT, CASTLE(FOR STEERING DRAG LINK)
45450ROD ASSY, STEERING RELAY
45450ANUT, CASTLE(FOR RELAY ROD)
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45495ASHAFT, IDLER ARM
45495BSEAL(FOR IDLER ARM SHAFT)
45495CSPRING, COMPRESSION(FOR IDLER ARM SHAFT)
45497CAP, IDLER ARM BRACKET
45497APLUG(FOR IDLER ARM BRACKET CAP)
45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)
45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)
45619CCOVER, STEERING KNUCKLE STOPPER, RH
45619DCOVER, STEERING KNUCKLE STOPPER, LH
45700DAMPER ASSY, STEERING
45721BBRACKET, STEERING DAMPER, NO.3
9002901001
main90029-01001
9002934002
main90029-34002
9010114042
main90101-14042
9010116011
main90101-16011
9010512200
main90105-12200
9010514097
main90105-14097
9010612005
main90106-12005
9017012018
main90170-12018
9017014026
main90170-14026
9017027033
main90170-27033
9020416001
main90204-16001
9025204003
main90252-04003
9090101003
main90901-01003
9090101004
main90901-01004
9116261250
main91162-61250
9116281235
main91162-81235
9413061200
main94130-61200
9413061600
main94130-61600
9418401601
main94184-01601
9418461201
main94184-61201
9453101200
main94531-01200
9461211600
main94612-11600
9462211400
main94622-11400
9462211600
main94622-11600
9538103025
main95381-03025
83 parts on this diagram · 3 diagrams in section
