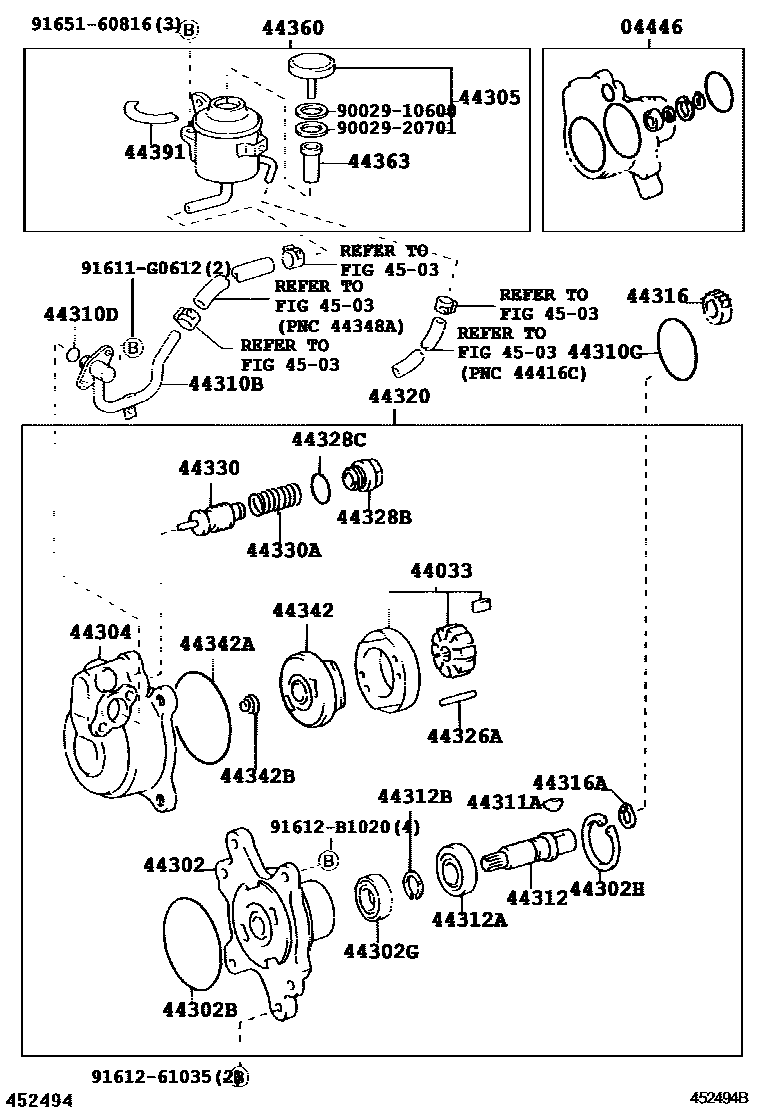

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44033ROTOR SUB-ASSY, W/CAM & VANE
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44310BUNION(FOR VANE PUMP)
44310CRING, O(FOR VANE PUMP)
44310DRING, O(FOR VANE PUMP UNION)
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312ABEARING(FOR VANE PUMP SHAFT)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44316ARING
44320PUMP ASSY, VANE
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=29.1
44328BEND, VANE PUMP HOUSING
subS4432-61180
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
TWO GROOVE
ONE GROOVE
NO GROOVE
TWO GROOVE
ONE GROOVE
NO GROOVE
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
44363STRAINER, OIL(FOR VANE PUMP)
4503
9002910600
main90029-10600
9002920701
main90029-20701
91611G0612
main91611-G0612
9161261035
main91612-61035
91612B1020
main91612-B1020
9165160816
main91651-60816
37 parts on this diagram · 5 diagrams in section
