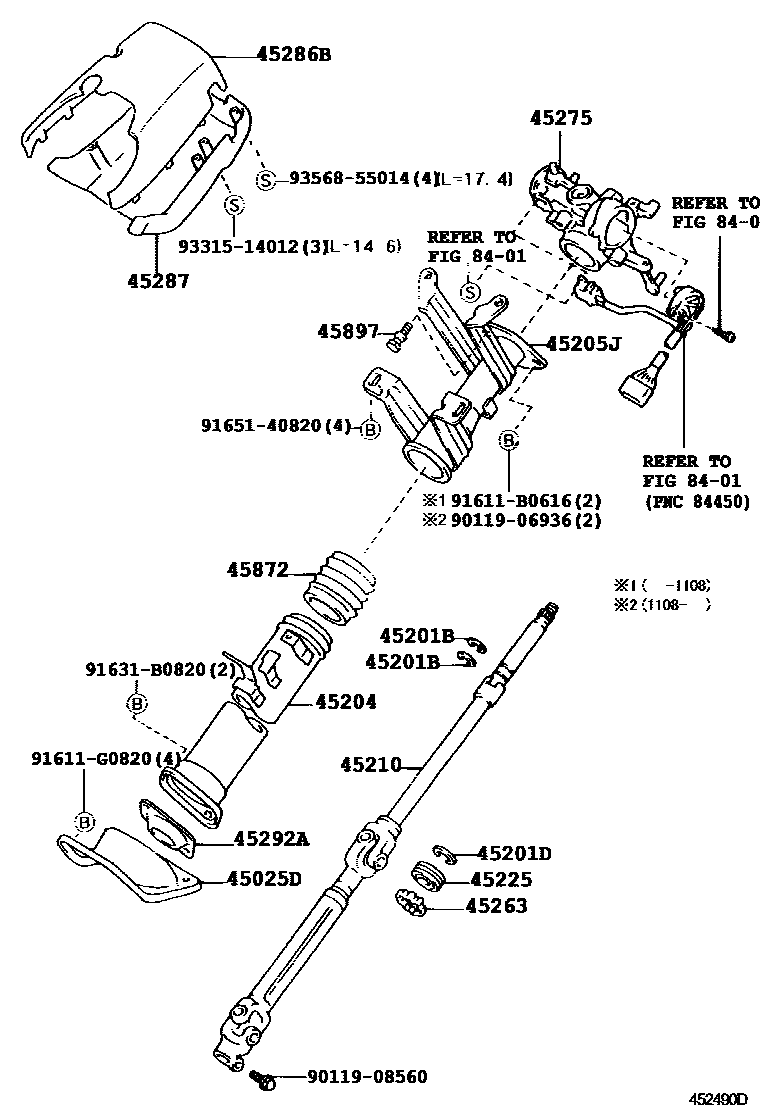

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-36160iBB5#,RZB5#200012-200310

sub45025-36150

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBB5#,RZB5#200012-200310

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iBB5#,RZB5#200012-200310

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36210iBB5#,RZB5#200012-200310

sub45204-36200

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36210iBB5#,RZB5#200012-200310

sub45205-36200

sub45210-36090

sub90520-17269

45210SHAFT ASSY, STEERING MAIN

main45210-36110iBB5#,RZB5#200012-200310

sub45205-36200

sub45210-36090

sub90520-17269

45225BLOCK, BEARING

main45225-26010iBB5#,RZB5#200012-200310

45263RING, STEERING COLUMN, NO.1

main45263-32010iBB5#,RZB5#200012-200310

45275BRACKET, STEERING COLUMN, UPPER

main45307-36230iBB5#,RZB5#200012-200310

45286BCOVER, STEERING COLUMN, UPR

main45286-36860-E0iBB5#,RZB5#200012-201403

GREIGE,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-36380-E0iBB5#,RZB5#200012-201403

GREIGE,TRIM4#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-36060iBB5#,RZB5#200012-200410

main45292-36070iBB5#,RZB5#,TRB53,XZB53200410

45872COVER, STEERING COLUMN TUBE

main45872-36040iBB5#,RZB5#200012-200410

main45872-36050iBB5#,RZB5#,TRB53,XZB53200410

45897BOLT, STEERING LOCK SET

main45897-12030iBB5#,RZB5#200012-201108

main45897-25010iBB5#,RZB5#200304-200310

8401

9011906936

main90119-06936

9011908560

main90119-08560

91611B0616

main91611-B0616

91611G0820

main91611-G0820

91631B0820

main91631-B0820

9165140820

main91651-40820

9331514012

main93315-14012

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
