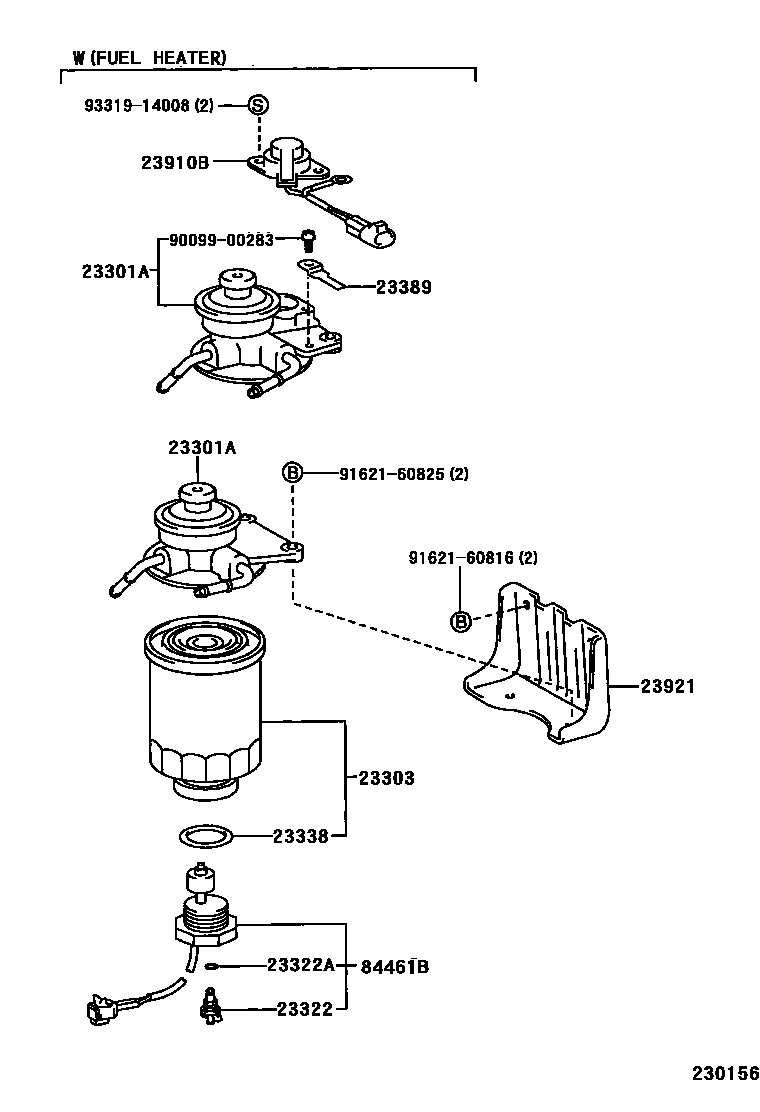

FUEL FILTER

0001 1 0002 1TYPE A 0003 1TYPE B 0004 1FRAME SIDE 0005 1ENGINE SIDE

23301ACAP ASSY, FUEL FILTER

main23380-58310i15BF..BB5#200012-200310

sub23380-58311

main23380-58320i15BFT..BB5#200310-200701

main23380-58330i15BF..BB5#200012-200310

W(FUEL HEATER)

sub23380-58331

main23380-78340iN04C..XZB53200701-200902

sub23380-78341

main23380-78341iN04C..XZB53200902-201305

sub23380-78342

main23380-78342iN04C..XZB53201305

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-59015i15BFT..BB5#..20S,24S,29S200310-200701

main23390-64480i15BF..BB5#200012-200310

main23390-78340iN04C..XZB53200701

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-54010i15BFT..BB5#200407-200701

NO.2

main23388-64470i15BF..BB5#200012-200310

main23388-64470i15BFT..BB5#200411-200701

NO.1

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i15BFT..BB5#200411-200701

TYPE B:REFER TO ILLUSTRATION,NO.1

main23344-54010i15BF..BB5#200012-200310

main23344-54010i15BFT..BB5#200407-200701

TYPE B:REFER TO ILLUSTRATION,NO.2

main23344-54020i15BFT..BB5#200310-200701

TYPE A:REFER TO ILLUSTRATION

23338GASKET(FOR WARNING SWITCH)

main23338-54010i15BFT..BB5#200407-200701

main23344-64010i15BF..BB5#200012-200310

23389CLAMP, FUEL FILTER

main23389-17380i15BF..BB5#200012-200310

main23389-78340iN04C..XZB53200701

23910BHEATER ASSY, FUEL

main23910-17070i15BF..BB5#200012-200310

23921SUPPORT, FUEL FILTER

main23921-17040i15BF..BB5#200012-200310

main23921-78240iN04C..XZB53200701

84461BSWITCH, LEVEL WARNING

main84461-28040iBB5#200407-200701

NO.1

sub84461-28041

main84461-28040iBB5#200012-201203

sub84461-28041

main84461-28041iXZB53201204-201403

main84461-35120iBB5#200407-200701

NO.2

9009900283

main90099-00283

9162160816

main91621-60816

9162160825

main91621-60825

9331914008

main93319-14008

13 parts on this diagram · 5 diagrams in section
