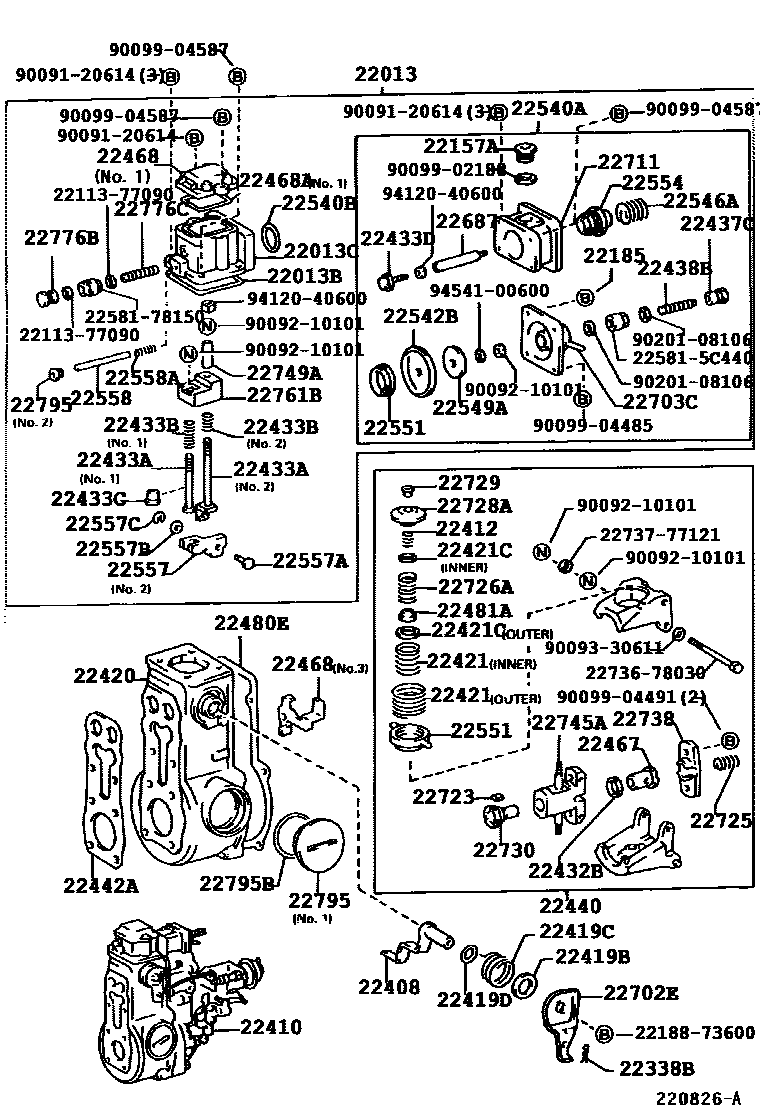

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
22013CHOUSING, FULLROAD STOPPER, NO.2
22157APLUG(FOR NB BOOST COMPENSATOR)
22185PLATE, TAPPET ADJUSTING SHIM(FOR NB BOOST COMPENSATOR)
22338BPIN, LEVER CONECTING
22408ARM, STOPPER
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
22412SPRING, MECHANICAL GOVERNOR
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.20
T=0.50,OD=16
T=0.50
T=0.10
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22421SPRING, IDLING
INNER
OUTER
22421CWASHER, IDLING SPRING
T=0.3,INNER
T=0.2,INNER
T=0.60,INNER
22432BSHIM
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.10
T=2.20
T=2.30
T=2.05
T=2.15
T=2.25
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.2
NO.1
22433BSPRING(FOR ADAPTER SCREW)
NO.2
NO.1
22433CBUSH(FOR ADAPTER SCREW)
22433DADAPTER, NB BOOST COMPENSATOR
22437CNUT, CAP(FOR NB BOOST COMPENSATOR)
22438BSCREW, STOP(FOR NB BOOST COMPENSATOR)
22440FLYWEIGHT SUB-ASSY
22442AGASKET, GOVERNOR
22467NUT, ROUND
22468COVER, PLATE
NO.3
NO.2
NO.1
22468AO, RING
NO.1
NO.2
22480COVER SUB-ASSY, GOVERNOR
22480EGASKET, GOVERNOR COVER
22481ASEAT, SPRING, INNER
22540ACOMPENSATOR SUB-ASSY, BOOST(FOR NB PUMP)
22540BRING, O(FOR NB BOOST COMPENSATOR)
22542BDIAPHRAGM, NB BOOST COMPENSATOR
22546ASPRING(FOR NB BOOST COMPENSATOR)
22549AWASHER, THRUST(FOR NB BOOST COMPENSATOR)
22551SEAT, SPRING(FOR FLYWEIGHT)
BOOST COMPENSATOR
FLYWEIGHT
22554BUSHING(FOR NB BOOST COMPENSATOR)
22557CAM, FULL STOP
NO.1
NO.2
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.05
T=0.10
T=0.20
22557CRING, E(FOR CONNECTING PIN)
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22687ROD, PUSH(FOR BELLOWS)
22702LEVER ASSY, FLOATING
22702ELEVER SUB-ASSY, CONTROL
22703CCOVER SUB-ASSY, GOVERNOR
22711HOUSING, NB BOOST COMPENSATOR
22723DAMPER, FLYWEIGHT HOLDER
22725SPRING, IDLING
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22745AFLYWEIGHT, DISTRIBUTIVE PUMP
22749ACOLLAR, THRUST(FOR NB INJECTION PUMP)
22761SLIDER(FOR SPEED CONTROL)
22761BBLOCK, SLIDING
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
22795PLUG, SCREW
NO.2
NO.1
22795BGASKET, SCREW PLUG
2211377090
main22113-77090
2218873600
main22188-73600
225815C440
main22581-5C440
2258178150
main22581-78150
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
9009120614
main90091-20614
9009210101
main90092-10101
9009330611
main90093-30611
9009902188
main90099-02188
9009904485
main90099-04485
9009904491
main90099-04491
9009904587
main90099-04587
9020108106
main90201-08106
9412040600
main94120-40600
9454100600
main94541-00600
79 parts on this diagram · 3 diagrams in section
