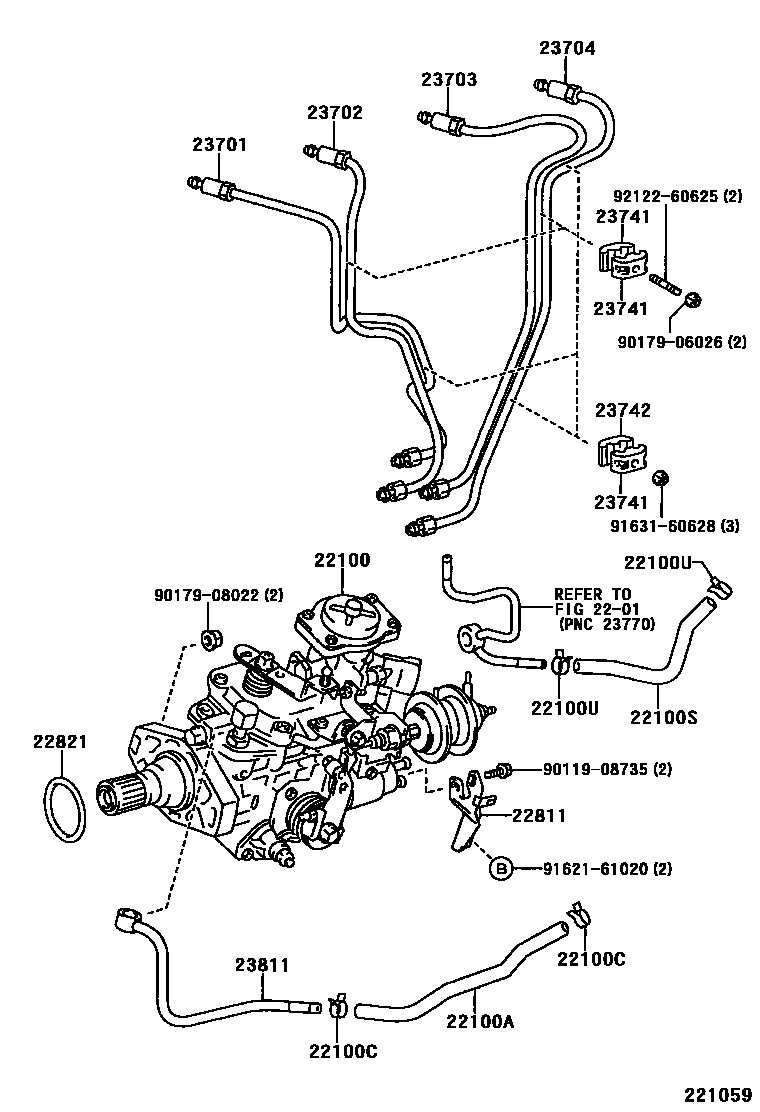

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5C350i15BFT..BB5#200310-200701

main22100-5C650i15BF..BB5#200012-200310

main22100-78250iN04C..XZB53200701-200708

sub22100-78251

main22100-78251iN04C..XZB53200708-200709

sub22100-78252

main22100-78252iN04C..XZB53200709-200805

sub22100-78253

main22100-78253iN04C..XZB53200805-200905

sub22100-78254

main22100-78254iN04C..XZB53200905-200909

sub22100-78255

main22100-78255iN04C..XZB53200909-200912

sub22100-78256

main22100-78256iN04C..XZB53200912-201108

main22100-E0550iN04C..XZB53201108

sub22100-E0551

sub26223-E0010

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-58150i15BF..BB5#200012-200310

main23271-58170i15BFT..BB54200310-200701

main23271-58180i15BFT..BB53200310-200701

main23271-78330iN04C..XZB53200701-201108

22100CCLAMP, FUEL HOSE, NO.2

main96132-41500i15BF..BB5#200012-200701

main96132-51300iN04C..XZB53200701-201108

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-58100i15BF..BB5#200012-200310

main23273-78311iN04C..XZB53200701-201108

main95333-06030i15BFT..BB5#200310-200701

sub95338-06030

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-18008iN04C..XZB53200701-201108

main96132-41100i15BF..BB5#200012-200310

sub96132-51100

main96132-51100i15BFT..BB5#200310-200701

22811STAY, INJECTION PUMP, NO.1

main22811-58030i15BF..BB5#200012-200109

sub22811-58031

main22811-58031i15BF..BB5#200109-200310

main22811-58040i15BFT..BB5#200310-200701

main22811-78141iN04C..XZB53201108

22821GASKET, INJECTION PUMP

main90301-49003i15BF..BB5#200012-200310

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-58030i15BF..BB5#200012-200310

main23701-58040i15BFT..BB5#200310-200701

main23701-78131iN04C..XZB53200701-201101

sub23701-E0012

main23701-78160iN04C..XZB53201108

main23701-E0012iN04C..XZB53201101-201108

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-58030i15BF..BB5#200012-200310

main23702-58040i15BFT..BB5#200310-200701

main23702-78131iN04C..XZB53200701-201101

sub23702-E0012

main23702-78160iN04C..XZB53201108

main23702-E0012iN04C..XZB53201101-201108

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-58030i15BF..BB5#200012-200310

main23703-58040i15BFT..BB5#200310-200701

main23703-78121iN04C..XZB53200701-201101

sub23703-E0012

main23703-78150iN04C..XZB53201108

sub23703-78151

main23703-E0012iN04C..XZB53201101-201108

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-58030i15BF..BB5#200012-200310

main23704-58040i15BFT..BB5#200310-200701

main23704-78121iN04C..XZB53200701-201101

sub23704-E0012

main23704-78150iN04C..XZB53201108

sub23704-78151

main23704-E0012iN04C..XZB53201101-201108

23741CLAMP, INJECTION PIPE, NO.1

main23741-58010i15BFT..BB5#200012-200701

main90034-68024iN04C..XZB53201108

23742CLAMP, INJECTION PIPE, NO.2

main23742-58010i15BF..BB5#200012-200701

main23742-66020iN04C..XZB53200701-201108

main90034-68026iN04C..XZB53201108-201305

NO.2

mainS2304E0020iN04C..XZB53201108

NO.1

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-78040iN04C..XZB53200701-201101

sub23801-E0021

main23801-E0021iN04C..XZB53201101-201108

main23801-E0390iN04C..XZB53201305

NO.2

main23811-58010i15BF..BB5#200012-200310

main23811-E0851iN04C..XZB53201108

NO.1

sub23811-E0852

main23811-E0A40iN04C..XZB53201108-201305

NO.2

sub23801-E0390

sub90031-05123

9011908735

main90119-08735

9017906026

main90179-06026

9017908022

main90179-08022

9162161020

main91621-61020

9163160628

main91631-60628

9212260625

main92122-60625

21 parts on this diagram · 7 diagrams in section
