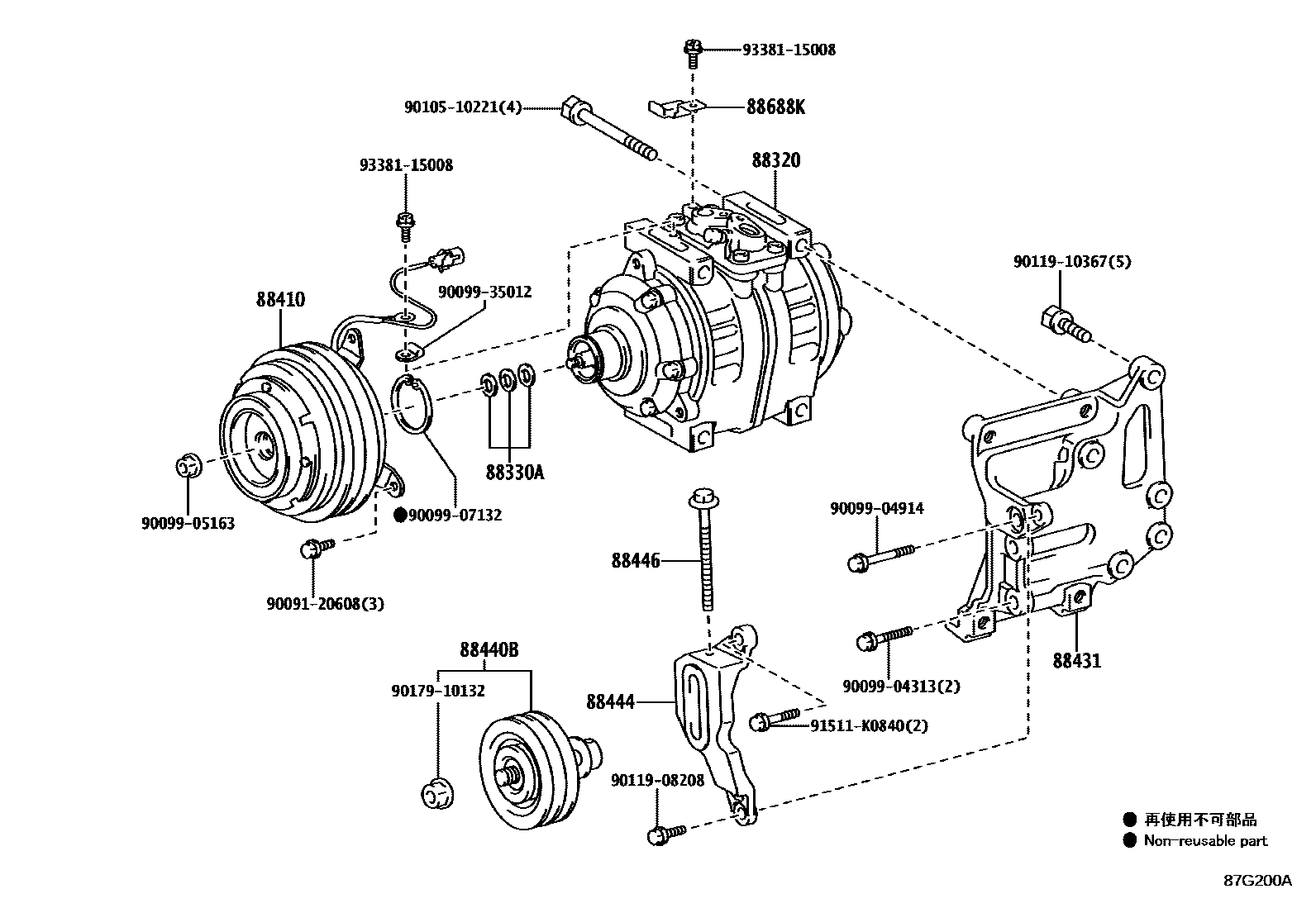

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88320COMPRESSOR ASSY, COOLER

main88320-36530iXZB60..GCC201701-201907

main88320-36540iTRB60,70..GCC202201-202303

main88320-36560iBB60..WC201701-201907

main88320-60D50iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,70,TRB70..WC..(BTN,GEN);GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

88410CLUTCH ASSY, MAGNET

main88410-36430iTRB60..WC..GEN201701

main88410-36520iXZB80;XZB70..20S..5F202201-202512

main88410-36530iHZB70..19S201701

main88410-V4010iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36421iBZB60201701-201712

main88431-36610iHZB70..19S201701

main88431-36690iTRB60,70..19S,20S,23S,30S201701-202201

main88431-E0150iXZB70..GCC;XZB70..22S..GEN202201-202412

main88431-V4010iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

88440BPULLEY ASSY, IDLE

main16604-76010iHZB60,70..WC..GEN202201

main88440-36130iXZB70..GCC;XZB70..22S..GEN202201-202412

main88440-36171iTRB60,70..19S,20S,23S,30S201701-202201

88444BRACKET, IDLE PULLEY

main88444-36092iBZB60201701-201712

main88444-36150iHZB60,70..(23S,25S,26S,30S)..WC201701-202201

88446BOLT, IDLE PULLEY

main88446-35010iTRB60,70..GCC202201-202303

main90099-04306iXZB70..GCC;XZB70..22S..GEN202201-202412

main90105-08099iHZB60,70..(23S,25S,26S,30S)..WC201701-202201

88688KBRACKET, COOLER COMPRESSOR

main88688-36610iBB60..WC201701-201907

main88688-36620iHZB60,70..(23S,25S,26S,30S)..WC201701-202201

main88688-3B120iXZB60201701-201712

main88849-60050iGDB60..WC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

9009120608

main90091-20608

9009904313

main90099-04313

9009904914

main90099-04914

9009905163

main90099-05163

9009907132

main90099-07132

9009935012

main90099-35012

9010510221

main90105-10221

9011908208

main90119-08208

9011910367

main90119-10367

9017910132

main90179-10132

91511K0840

main91511-K0840

9338115008

main93381-15008

20 parts on this diagram · 6 diagrams in section
