MOULDING

53105EGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-36010-A0iXZB70..6FC..DX201701

WHITE,058 ,2HL

main53105-36010-B0iHZB70..DX..GEN;XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC202201

SILVER M.M.,1E7

main53105-36010-E0iXZB70..DX..GCC;XZB70..RHD..23S..GEN202501

BEIGE ME.,4R4

main53105-36010-F0iXZB70..22S..GEN202401-202412

YELLOW,541

main53105-36010-J0iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

LAVENDER BLUE,2KA

main53105-36010-K0iXZB70..6FC..STD..GEN201701

P.L.B CREAM,9A8

main53105-36020-A1iGDB70..STD..ARL202201-202512

WHITE,058 ,2HL

53141JGARNISH, RADIATOR GRILLE, NO.1

main53141-36020-A0iGDB70..STD..ARL202201-202512

WHITE,058 ,2HL

53142EGARNISH, RADIATOR GRILLE, NO.2

main53142-36010-A0iGDB70..STD..ARL202201-202512

WHITE,058 ,2HL

53181ACOVER, HEADLAMP, RH

main53107-36010-A0iXZB70..6FC..DX201701

WHITE,058 ,2HL

main53107-36010-B0iXZB70..4FC..EX201701-202012

SILVER M.M.,1E7

main53107-36010-E0iXZB70..RHD..23S..GEN202201-202312

BEIGE ME.,4R4

main53107-36010-F0iHZB70,TRB60..19S,26S;XZB70..(23S,25S,30S)..STD..GEN201701

YELLOW,541

main53107-36010-J0iHZB60,70..23S,25S,26S,30S;TRB60,70..19S,20S,23S,24S,30S;XZB70..(19S,23S,29S)..WC..(GCC,GEN)201701-202201

LAVENDER BLUE,2KA

main53107-36010-K0iBZB60,XZB60201701-201712

P.L.B CREAM,9A8

53182ACOVER, HEADLAMP, LH

main53108-36090-A0iXZB80..5F,6FC;XZB70..RHD..(20S,22S,23S)..5F..(GEN,SA)201701-202201

WHITE,058 ,2DT ,2HL ,2JP

main53108-36090-B0iTRB70..GCC;HZB70,XZB70..(20S,23S,30S)..5F..(DX,EX)..(GCC,GEN)201701-202201

SILVER M.M.,1E7

main53108-36090-E0iTRB70..DX202201-202303

BEIGE ME.,4R4

main53108-36090-F0iHZB70,TRB60..19S,26S;XZB70..(23S,25S,30S)..STD..GEN201701

YELLOW,541

main53108-36090-J0iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

LAVENDER BLUE,2KA

main53108-36090-K0iGDB70..STD..GEN;XZB70..20S..5F..STD202201-202409

P.L.B CREAM,9A8

75039CLIP SUB-ASSY, OUTSIDE MOULDING

main62217-13010×8iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

NATURAL

main90467-09206×8iBZB60,XZB60201701-201712

NATURAL,W/PAD

main90467-10167×8iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

BLUE

75039CCLIP SUB-ASSY, OUTSIDE MOULDING, NO.1

main62217-13010×14iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

75505GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

main75551-36010iGDB70..SA202201

MATERIAL BLACK

main75551-36040-A0iHZB60,70,XZB70..RHD..(26S,29S,30S)201701-202201

WHITE,058 ,2DT ,2HL ,2JP

main75551-36040-F0iGDB70..DX..GEN202401

YELLOW,541

main75551-36040-J0iXZB70..RHD..23S..GEN202501

LAVENDER BLUE,2KA

main75551-36040-K0iXZB70..6FC..STD..GEN201701

P.L.B CREAM,9A8

75506GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

main75552-36010iXZB60..GCC201701-201907

main75552-36030-A0iTRB70..WOC202201-202412

WHITE,058 ,2DT ,2HL ,2JP

main75552-36030-F0iTRB70..WOC202201-202412

YELLOW,541

main75552-36030-J0iHZB70..23S..WOC202201-202312

LAVENDER BLUE,2KA

75551HMOULDING, ROOF DRIP SIDE, RH

main75551-36021iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

75552HMOULDING, ROOF DRIP SIDE, LH

main75552-36021iTRB60,70..GCC202201-202303

75561FCLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020×2iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

6295550010SEAL, ROOF SIDE VENT

main62955-50010

9016740057

main90167-40057

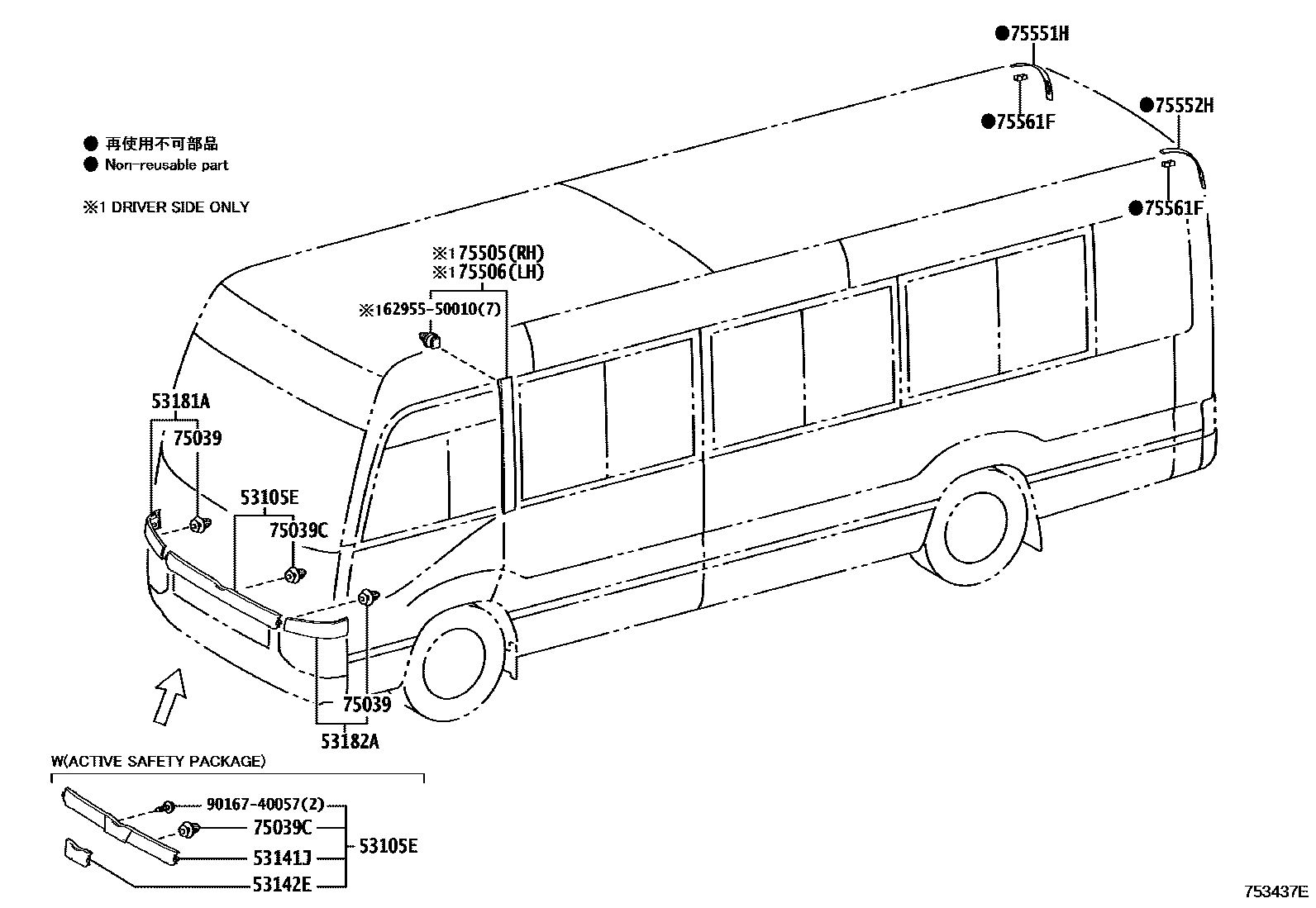

14 parts on this diagram · 1 diagram in section
