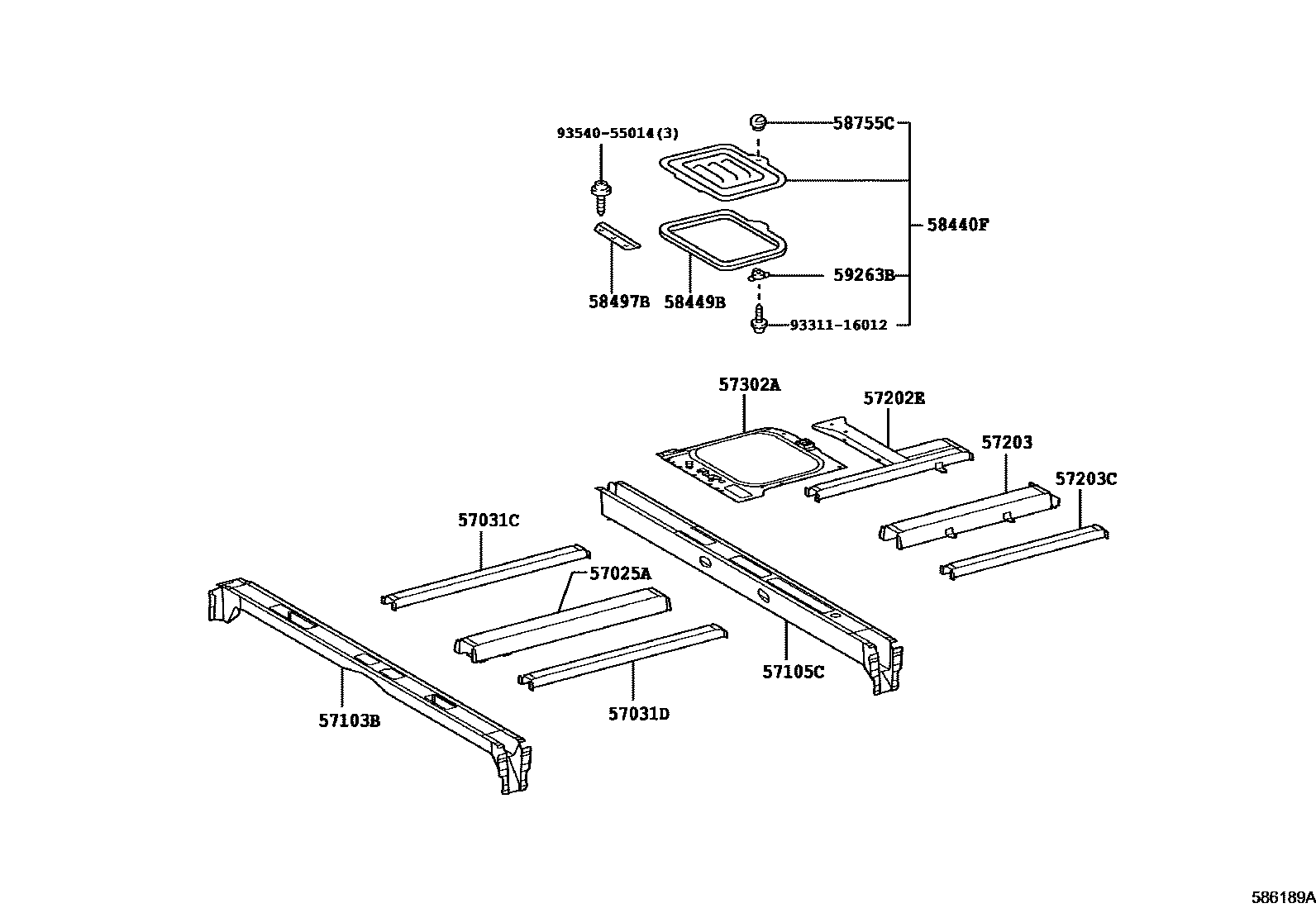

REAR FLOOR PANEL & REAR FLOOR MEMBER
57025ASTRENGTH, SUB-ASSY, CROSSMEMBER FLOOR, NO.2 SUB
PAPUA NEW GUINEA SPEC&REAR SEAT BELT-WITH(2-POINT TYPE)
REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE)
PAPUA NEW GUINEA SPEC&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE)
REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45
SAUDIARABIA SPEC&REAR SEAT-WITH(BACK BOARD), NO.8 SEAT = 3S
REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = LH ONLY
57031CSTRENGTH SUB-ASSY, ANCHOR SIDE, NO.1
57031DSTRENGTH SUB-ASSY, ANCHOR SIDE, NO.2
REAR SEAT-HIGH BACK TYPE, NO.8 SEAT = LH ONLY
57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3
sub57103-36172
sub57103-36371
sub57103-36372
sub57103-36391
sub57103-36411
sub57103-36441
sub57103-36471
57202ESTRENGTH SUB-ASSY, ANCHOR, NO.2
REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S
57203STRENGTH SUB-ASSY, ANCHOR NO.3
REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE)
PAPUA NEW GUINEA SPEC&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE)
PAPUA NEW GUINEA SPEC&REAR SEAT BELT-WITH(2-POINT TYPE)
REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45
SAUDIARABIA SPEC&REAR SEAT-WITH(BACK BOARD), NO.8 SEAT = 3S
SINGAPORE SPEC
57203CSTRENGTH SUB-ASSY, ANCHOR, NO.4
REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S
SINGAPORE SPEC
main57232-36230iXZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S);HZB60,TRB70..LHD..(19S,23S,26S,30S)201701-202412
57302APANEL SUB-ASSY, BATTERY BOX
CENTER DOOR-GLIDING(AUTO)
58440FCOVER ASSY, BATTERY SERVICE HOLE
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
58449BPACKING, BATTERY SERVICE HOLE COVER
58497BPLATE, BATTERY SERVICE HOLE COVER LOCK
main58497-36010-B2iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
58755CHANDLE, ENGINE SERVICE COVER CATCH
main58755-95D00iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)¥570201701-202512
59263BHOOK, ENGINE COVER LOCK
main59263-95D00iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)¥180201701-202512
9331116012
9354055014
16 parts on this diagram · 16 diagrams in section
