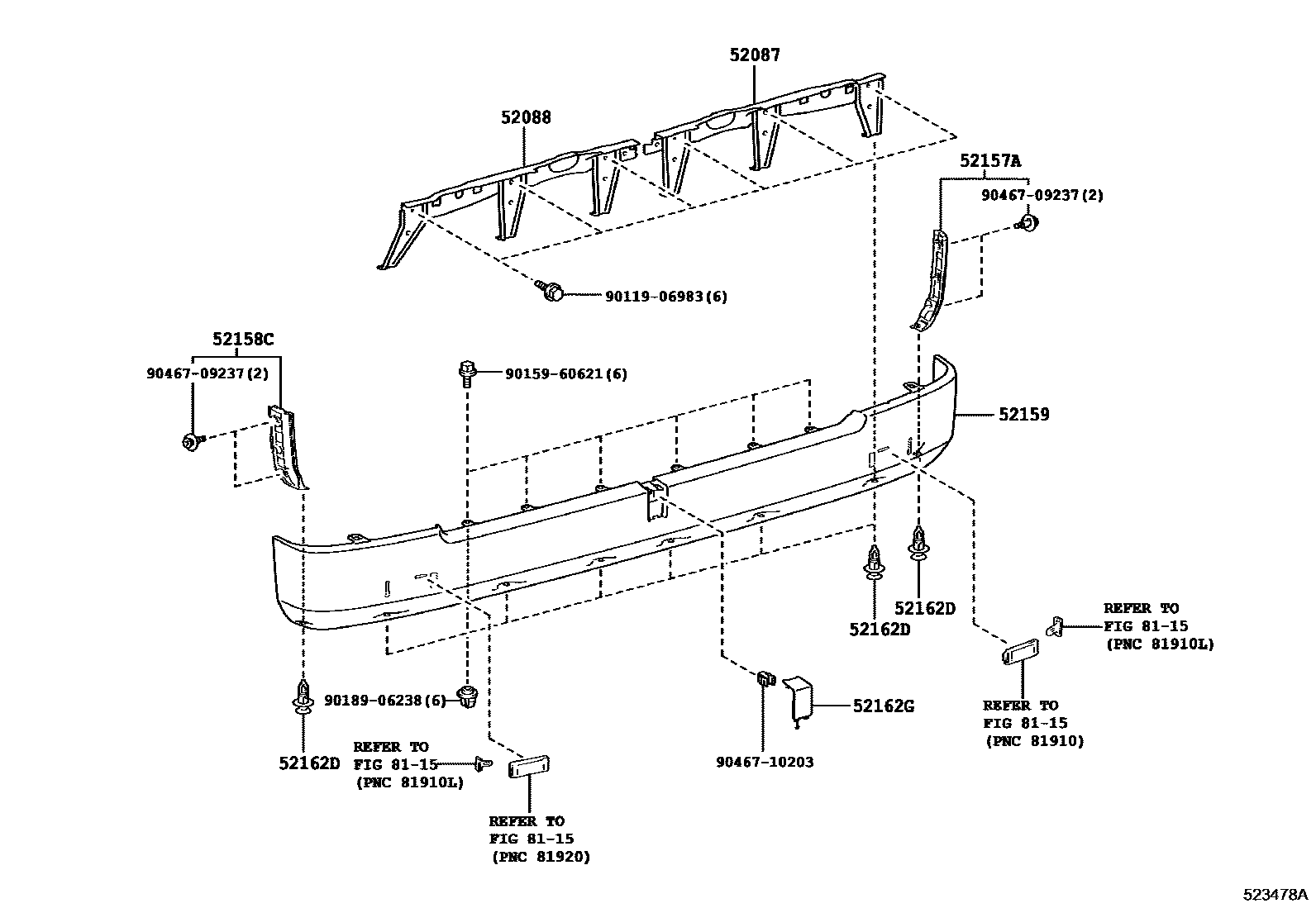

REAR BUMPER & BUMPER STAY

0001 1W/O(BACK STEP) 0002 1W(BACK STEP) 0003 1W(BACK STEP),SAUDIARABIA SPEC

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-36010iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main52087-36020iGDB70,TRB70..19S..(6F,6FC)202201

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-36010iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

main52088-36020iTRB70,XZB70..19S201701-202201

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-36030iBZB60,XZB60201701-201712

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-36040iBB60,XZB60..20S,26S201701-201907

52159COVER, REAR BUMPER

main52159-36900supersedes 52159-36904iTRB70..WOC;XZB70..23S..GCC202201-202412

PAINT REQ.

main52159-36902iTRB70..23S201701-201801

PAINT REQ.

main52159-36903iGDB70..DX..GEN202201-202401

PAINT REQ.

main52159-36904iXZB70..22S..GEN202201-202312

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-16010×8iXZB70..19S202201-202412

sub52161-0K040

52162GPLATE, REAR BUMPER, NO.1

main52162-36900iBB60,XZB60..20S,26S201701-201907

8115

9011906983

main90119-06983

9015960621

main90159-60621

9018906238

main90189-06238

9046709237

main90467-09237

9046710203

main90467-10203

13 parts on this diagram · 3 diagrams in section
