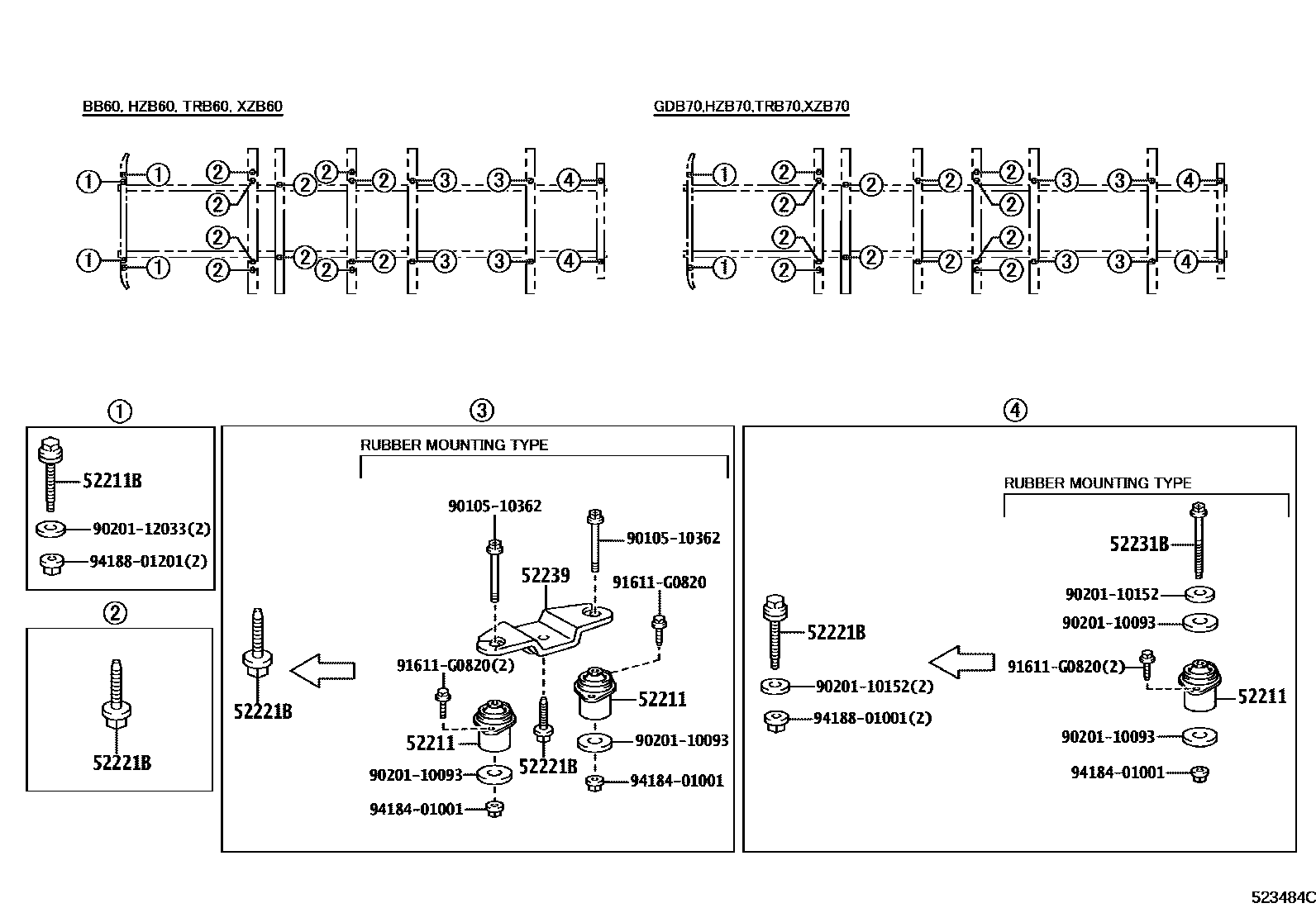

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-36070×10supersedes 52211-36070iHZB70,TRB60,70,XZB70..GCC201701-202201

ROUGH ROAD AREA SPEC

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main91673-L1235×4iXZB70..22S..GEN202401-202412

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10762×16supersedes 90119-10762iTRB60..6F202201

JORDAN SPEC

main90119-10995×18supersedes 90119-10995iBB60,HZB70,TRB60,70,XZB60,70..02S,17S,19S,22S,23S,26S201701-201709

JORDAN SPEC

main90119-10A08×2supersedes 90119-10A08iBZB70,HZB70,TRB70,XZB70201810-201811

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90901-05014×2iXZB60..GCC201701-201907

52239PLATE, BODY MOUNTING

main52239-36010×4supersedes 52239-36010iXZB70..ARL201701-202012

9010510362

main90105-10362

9020110093

main90201-10093

9020110152

main90201-10152

9020112033

main90201-12033

91611G0820

main91611-G0820

9418401001

main94184-01001

9418801001

main94188-01001

9418801201

main94188-01201

13 parts on this diagram · 3 diagrams in section
