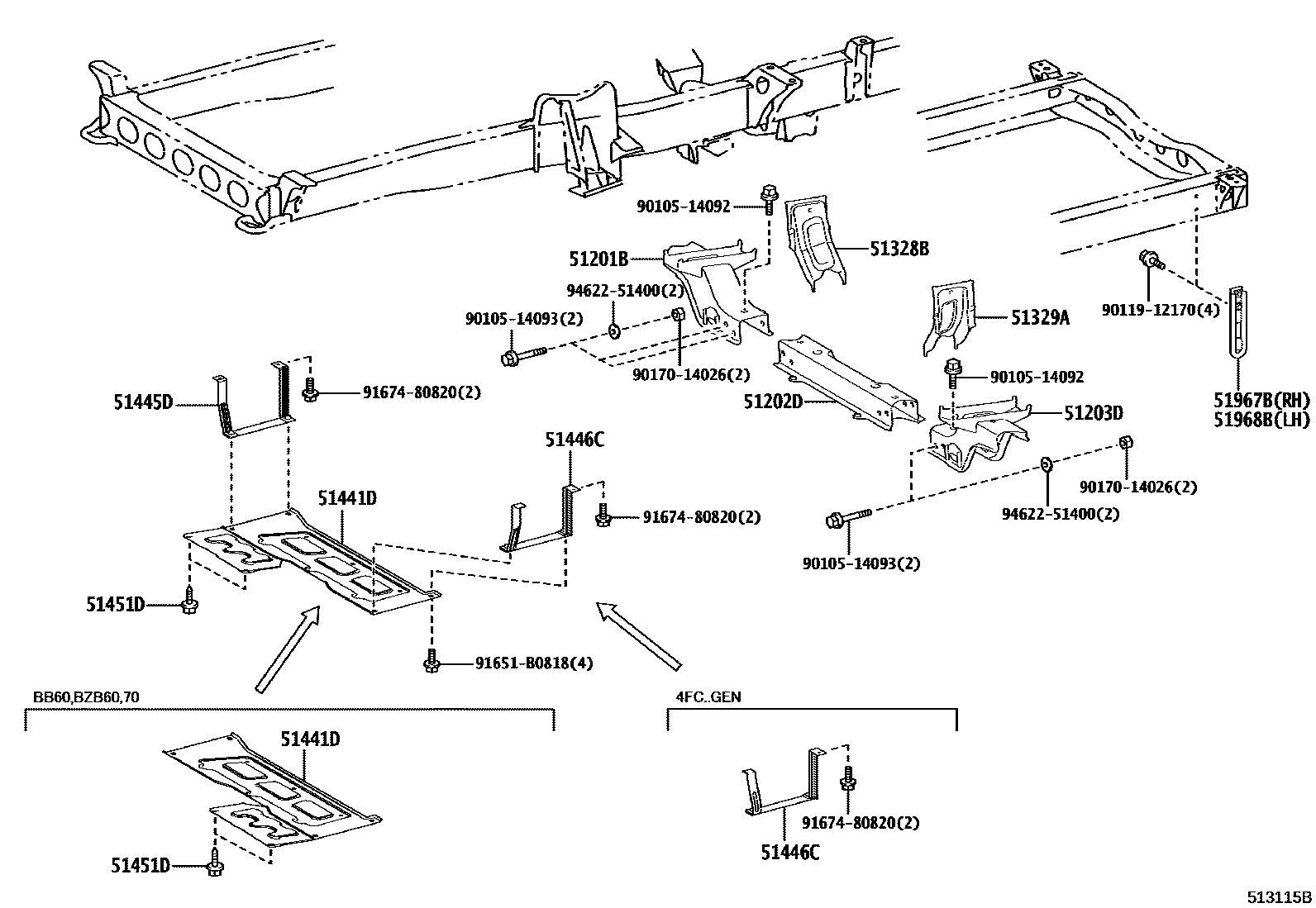

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201BCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH

main51201-36160iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-36171iXZB70..GCC201701-202201

main51202-36171iXZB70..STD..GEN201701-201801

JORDAN SPEC

main51202-36220iBB60,XZB60..20S,26S201701-202201

main51202-36220iXZB70..GCC201801-202201

ROUGH ROAD AREA SPEC

main51202-V4010iTRB60,70..GCC202201-202512

51203DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH

main51203-36330iXZB70..RHD..23S..GEN201701-202512

51328BSUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-36020iBZB60,XZB60201701-202512

51329ASUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-36010iBZB60,XZB60201701-202512

51441DCOVER, ENGINE UNDER

main51441-36252iXZB70..RHD..23S..GEN201701-202512

main51441-36282iBB60201701-202012

main51441-36350iXZB70..TAIW;XZB70..6FC..ARL201701-202012

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-36040iXZB70..6FC..GEN;HZB70,TRB60..19S,26S;XZB70..(23S,25S,30S)..STD..GEN201701-202512

main51445-36080iXZB70..ARL201701-202012

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-36040iXZB70..RHD..23S..GEN201701-202512

main51446-36060iXZB70..5F..ARL201701-202012

main51446-36070iXZB70..4FC..ARL201701-202012

main51446-36080iXZB70,80..4FC..GEN201701-202012

51451DSCREW, NO.1

main90159-60477iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

51967BHOOK, TRANSPORT, REAR RH

main51963-36060iBZB60,XZB60201701-202512

51968BHOOK, TRANSPORT, REAR LH

main51963-36060iBZB60,XZB60201701-202512

9010514092

main90105-14092

9010514093

main90105-14093

9011912170

main90119-12170

9017014026

main90170-14026

91651B0818

main91651-B0818

9167480820

main91674-80820

9462251400

main94622-51400

18 parts on this diagram · 2 diagrams in section
