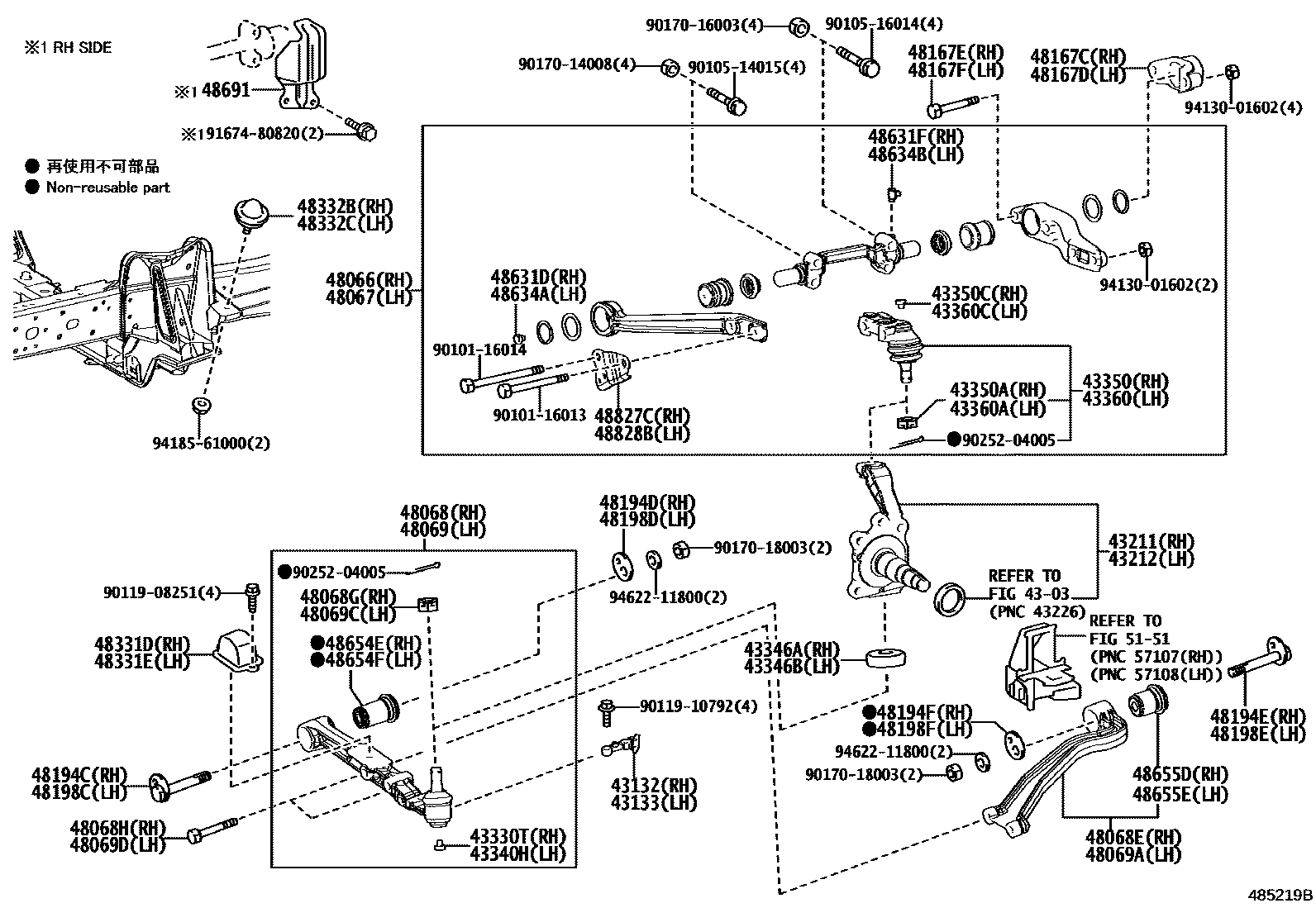

FRONT AXLE ARM & STEERING KNUCKLE

4303

43132STOPPER, STEERING KNUCKLE, RH

main43132-36070iXZB80201908-202512

main43132-36080iBZB60,XZB60201701-201812

sub43132-36081

main43132-36081iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201901-202512

43133STOPPER, STEERING KNUCKLE, LH

main43133-36030iXZB80..4FC201908-202512

main43133-36040iBB60,BZB70,HZB70,TRB60,70,XZB60,70..01S,02S,19S,20S,22S,23S,24S,25S,26S,29S,30S201701-201812

sub43133-36041

main43133-36041iTRB60,70..GCC201901-202512

43211KNUCKLE, STEERING, RH

main43211-36905iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202412

main43211-36906iHZB70..GEN201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main43211-36906iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main43211-36909iHZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN202201-202412

ABS-WITH

main43211-36909iTRB70..WC..GEN202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main43211-36909iXZB70..RHD..23S..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main43211-36909iXZB60..GCC201701-202512

main43211-36909iXZB80..5F201908-202101

SINGAPORE SPEC

main43211-36909iXZB80..6FC;TRB60,70,XZB70..GCC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)201701-202201

ABS-WITH(ABS & VSC)

43212KNUCKLE, STEERING, LH

main43212-36905iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202412

main43212-36906iBZB60,XZB60201701-202012

main43212-36906iHZB70..GCC;XZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main43212-36908iXZB70..LHD..(23S,29S)..WC..GEN201701-202201

ABS-WITH(ABS & VSC)

main43212-36908iTRB70..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main43212-36908iHZB70..19S201701-202512

main43212-36908iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main43212-36908iHZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

ABS-WITH

main43212-36908iXZB80..5F201908-202101

SINGAPORE SPEC

43330TPLUG (FOR FRONT LOWER BALL JOINT RH)

main90345-06014iBZB60,XZB60201701-202512

43340HPLUG (FOR FRONT LOWER BALL JOINT LH)

main90345-06014iBZB60,XZB60201701-202512

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-36010iBZB60,XZB60201701-202512

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-36010iBZB60,XZB60201701-202512

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39095iBZB60,XZB60201701-202512

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-20001iBZB60,XZB60201701-202512

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iBZB60,XZB60201701-202512

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39095iBZB60,XZB60201701-202512

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-20001iBZB60,XZB60201701-202512

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iBZB60,XZB60201701-202512

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-39075iBZB60,XZB60201701-202512

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-39065iBZB60,XZB60201701-202512

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-39015iBZB60,XZB60201701-202512

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48607-36010iBZB60,XZB60201701-202512

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90171-22001iBZB60,XZB60201701-202512

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90901-01002iBZB60,XZB60201701-202512

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-39015iBZB60,XZB60201701-202512

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48607-36010iBB60,XZB60..20S,26S201701-202512

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90171-22001iBZB60,XZB60201701-202512

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90901-01002iBZB60,XZB60201701-202512

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-36020iBZB60,XZB60201701-202512

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-36020iBZB60,XZB60201701-202512

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90101-16012iBZB60,XZB60201701-202512

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90101-16012iBZB60,XZB60201701-202512

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-36010iBZB60,XZB60201701-202512

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-36020iBZB60,XZB60201701-202512

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main48190-36020iBZB60,XZB60201701-202512

48194FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH

main48198-36020iBZB60,XZB60201701-202512

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-36010iBZB60,XZB60201701-202512

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-36020iBZB60,XZB60201701-202512

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main48190-36020iBZB60,XZB60201701-202512

48198FCAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH

main48198-36020iBZB60,XZB60201701-202512

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-36140iXZB70..TAIW;XZB70..6FC..GEN201701-202512

main48304-36170iXZB70..6FC..ARL;HZB70,TRB60..19S,26S;XZB70..(23S,25S,30S)..STD..GEN201701-202512

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-36140iBZB60,XZB60201701-202512

main48304-36170iTRB60,70..GCC201701-202512

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-36030iBZB60,XZB60201701-202512

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-36030iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

48631DPLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main90345-06014iBZB60,XZB60201701-202512

48631FFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT RH)

main96459-00609iBZB60,XZB60201701-202512

48634APLUG(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main90345-06014iBZB60,XZB60201701-202512

48634BFITTING, GREASE(FOR FRONT SUSPENSION UPPER ARM SHAFT LH)

main96459-00609iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-36020iBB60,XZB60..20S,26S201701-202512

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-36020iBZB60,XZB60201701-202512

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-36010iBZB60,XZB60201701-202512

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-36010iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)201701-202512

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-36010iXZB60..GCC201701-202512

main48691-V4020iGDB70..BTN202201-202512

48827CBRACKET, STABILIZER, NO.2 RH

main48827-36090iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

48828BBRACKET, STABILIZER, NO.2 LH

main48828-36070iBZB60,XZB60201701-202512

5151

9010116013

main90101-16013

9010116014

main90101-16014

9010514015

main90105-14015

9010516014

main90105-16014

9011908251

main90119-08251

9011910792

main90119-10792

9017014008

main90170-14008

9017016003

main90170-16003

9017018003

main90170-18003

9025204005

main90252-04005

9167480820

main91674-80820

9413001602

main94130-01602

9418561000

main94185-61000

9462211800

main94622-11800

67 parts on this diagram · 1 diagram in section
