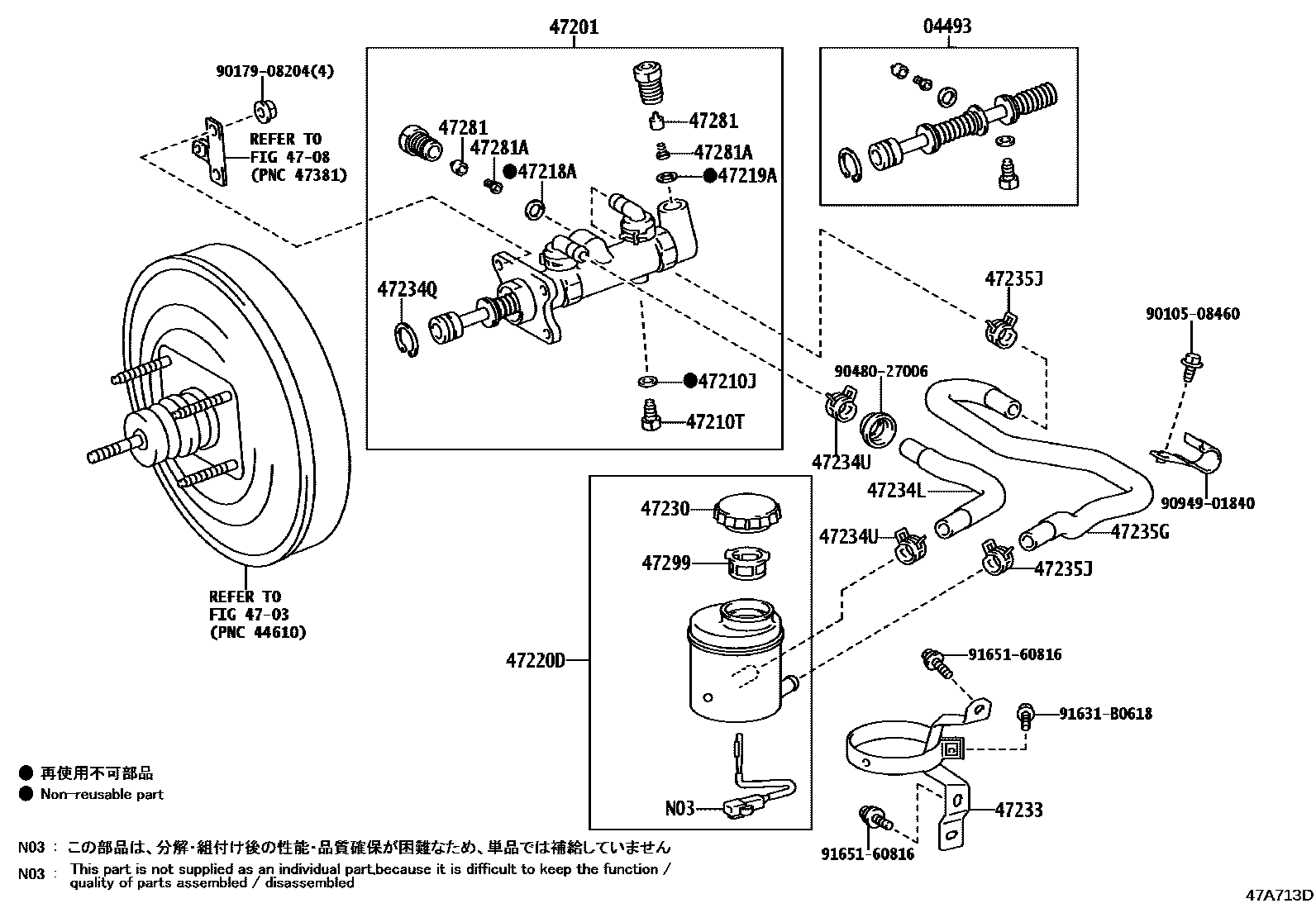

BRAKE MASTER CYLINDER

0001 1W/O(ABS) 0002 1W(ABS) 0003 1W(ABS & VSC) OR W(ABS) 0005 1 0006 1 0007 1W/O(ABS) 0008 1W(ABS) 0009 1SINGAPORE SPEC 0010 1W(ABS & VSC) OR W(ABS) 0011 1 0012 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36171iBB60201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main04493-36230iHZB70..GCC;XZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main04493-36230iBZB60,XZB60201701-202012

main04493-37022iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

main04493-37032iXZB70..(23S,25S,30S)..STD..GEN201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main04493-37032iTRB70..WOC202201-202412

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-36382iHZB60,70..RHD201701-202501

main47201-36392iHZB60..LHD;HZB70..30S..WOC;HZB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

main47201-36402iHZB60..RHD201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47201-36412iBB60..LHD201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47201-36422iHZB70..RHD201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47201-36432iTRB70..WC..GEN201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47201-36432iTRB70..WOC202201-202412

main47201-37280iXZB70,80..(01S,20S)..5F202101-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47201-37280iXZB80..5F201908-202101

SINGAPORE SPEC

main47201-37280iXZB80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)201801-202512

main47201-37280iXZB70..SA;GDB70..DX..(GEN,SA);GDB60,XZB70..RHD..(25S,26S,29S)202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47201-37290iXZB70..TAIW201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47201-37290iXZB70..19S;HZB70..23S..GCC202201-202412

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47201-37290iXZB60..GCC201701-202303

main47201-V4010iHZB60,70..RHD202501

main47201-V4020iHZB70..30S..WOC;HZB70..LHD..WC..GEN;HZB60,TRB70..LHD..(26S,30S);XZB70..LHD..(23S,29S)..WC..GEN202501

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBB60201701-202501

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iBZB60,XZB60201701-202012

main47218-36091iHZB70..GCC;XZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

main90430-16013iHZB70..GEN201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main90430-16013iBZB60,XZB60201701-202012

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-11001iHZB60,70,TRB70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-36070iXZB80..6FC201701-202512

main47220-36120iXZB70,80..(01S,20S)..5F201701-202512

main47220-36130iTRB70..WOC;XZB70..19S;HZB70..23S..GCC201701-202412

main47220-36140iGDB70..LHD202201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

47233BRACKET, RESERVOIR

main47233-36060iBZB60,XZB60201701-202512

main47233-36090iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202412

47234LHOSE, RESERVOIR, NO.1

main47234-36160iBB60..RHD201701-202501

main47234-36180iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main47234-36180iXZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47234-36210iHZB70..RHD202101-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47234-36210iXZB70..22S..GEN201801-202512

main47234-36210iHZB70..RHD202201-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47234-36210iXZB80..5F201908-202101

SINGAPORE SPEC

main47234-36220iHZB70..23S..WOC202201-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47234-36220iXZB60..GCC201701-202303

main47234-36220iTRB60,70,XZB70..GCC201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47234-36230iHZB60,70,TRB70..LHD..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

main47234-36240iHZB70..GCC201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-03000iHZB70..23S..WOC201701-202501

main96151-03200iHZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main96151-03200iTRB70..WOC202201-202412

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main90466-16004iTRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202501-202512

main96133-41500iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202501

47235GHOSE, RESERVOIR, NO.2

main47235-36160iBB60..RHD201701-202501

main47235-36190iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main47235-36190iXZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47235-36220iHZB70..RHD202101-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47235-36220iXZB70..22S..GEN201801-202512

main47235-36220iHZB70..RHD202201-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47235-36220iXZB80..5F201908-202101

SINGAPORE SPEC

main47235-36230iHZB70..23S..GCC201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47235-36230iXZB60..GCC201701-202303

main47235-36230iHZB70..23S..WOC202201-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47235-36240iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202501

main47235-36250iHZB70..GCC201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main90466-16004iTRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202501-202512

main96133-41500iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202501

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47281-30020iTRB70..WOC202201-202412

main47281-36010iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main47281-36010iHZB70..GEN201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90501-05012iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202501

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main90501-05012iTRB70..WOC202201-202412

main90905-01054iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main90905-01054iHZB70..GCC;XZB70,80..(01S,20S)..5F201701-202101

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iBB60,XZB60..20S,26S201701-202512

9010508460

main90105-08460

9017908204

main90179-08204

9048027006

main90480-27006

9094901840

main90949-01840

91631B0618

main91631-B0618

9165160816

main91651-60816

26 parts on this diagram · 11 diagrams in section
