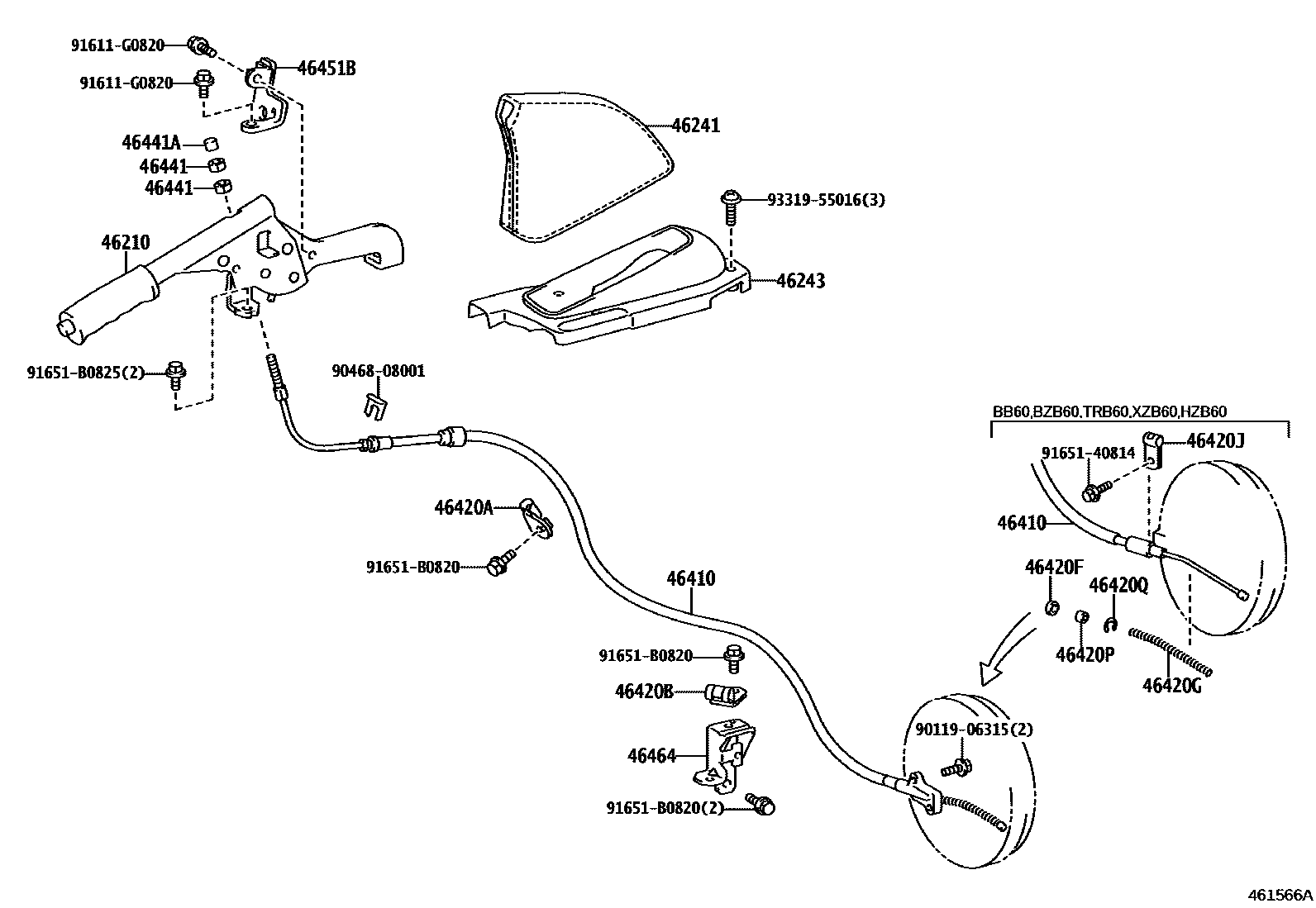

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46210LEVER ASSY, PARKING BRAKE

main46210-36040-B2iBZB60,XZB60201701-202512

MD.GRAY,TRIM1#

sub46210-36040

46241BOOT, PARKING BRAKE LEVER

main46241-36020-B2iXZB70..22S..GEN201701-202512

MD.GRAY,TRIM1#

main46241-36030-B2iBB60,XZB60..LHD201701-202412

MD.GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-36050-B0iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

MD.GRAY,TRIM1#

main46243-36060-B0iHZB70..23S..WOC201701-202412

MD.GRAY,TRIM1#

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36370iBB60..RHD201701-202201

main46410-36380iHZB60..LHD201701-202201

main46410-36410iHZB70..RHD201701-202201

main46410-36420iHZB70..LHD..(23S,25S,30S)201701-202412

main46410-36470iTRB60..GEN201701-202303

main46410-36480iTRB70..GCC201701-202412

main46410-36530iXZB60201701-201712

main46410-36540iXZB70,80..RHD..5F..(GEN,SA)201701-202512

main46410-36580iXZB70..6FC201908-202512

main46410-36590iXZB60..GCC201701-202412

main46410-V4010iGDB60;GDB70..DX..(GEN,SA)202201-202512

main46410-V4020iGDB70..LHD202201

main46410-V4030iTRB60,70..6F202501

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01841iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201701-202512

main90949-01842iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202412

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01839iTRB60,70..GCC201701-202512

main90949-01B36iXZB70,80..(01S,20S)..5F201701-202512

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBZB60,XZB60201701-202303

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14021iBZB60,XZB60201701-202303

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90461-08225iBZB60,XZB60201701-202303

46420PSPACER, PARKING BRAKE

main90560-08002iBZB60,XZB60201701-202303

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBZB60,XZB60201701-202303

46441NUT, WIRE ADJUSTING, NO.1

main94130-60600iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

46441ANUT, WIRE ADJUSTING, NO.2

main90339-04024iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-36060iTRB60,70..GCC201701-202512

46464PLATE, CABLE CLAMP SUPPORT

main46464-36020iBZB60,XZB60201701-202512

main46464-36030iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC201701-202412

9011906315

main90119-06315

9046808001

main90468-08001

91611G0820

main91611-G0820

9165140814

main91651-40814

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9331955016

main93319-55016

22 parts on this diagram · 4 diagrams in section
