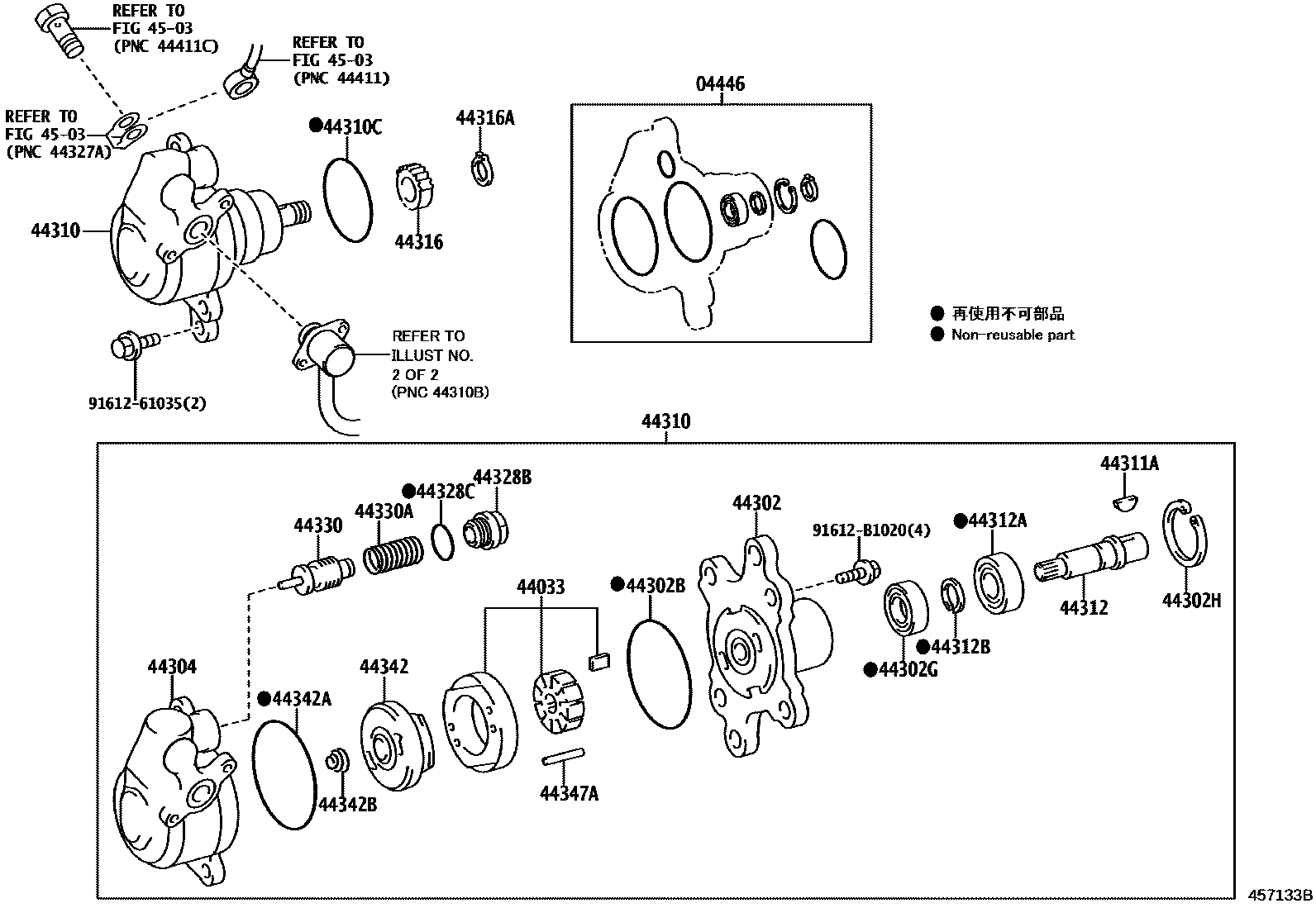

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26110iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main04446-32050iTRB60,70..GCC201701-202412

main04446-36090iHZB70..23S..GCC201701-202412

main04446-36100iBB60201701-202012

main04446-60130iXZB70..RHD..23S..GEN201701-202512

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36040iBZB60201701-202412

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36200iHZB70..19S201701-202412

main44302-36210iBZB70201701-202012

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20043iBZB60201701-202412

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iBZB60201701-202412

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBB60201701-202412

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36200iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

main44304-36210iBB60201701-202012

44310PUMP ASSY, VANE

main44310-36310iXZB60201701-202512

main44310-36320iTRB60..GEN201701-202412

main44310-36340iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main44320-36240iHZB70..23S..GCC201701-202412

main44320-36250iBZB60201701-202012

44310CRING, O(FOR VANE PUMP)

main90301-60002iBZB60,XZB60201701-202512

44311AKEY, VANE PUMP PULLEY

main90029-18001iBZB60201701-202012

main90029-18002iHZB60,70..23S,25S,26S,30S201701-202412

44312SHAFT, VANE PUMP

main44312-36110iBZB60201701-202012

main44312-89101iHZB60,70..23S,25S,26S,30S201701-202412

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBZB60201701-202412

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBZB60201701-202412

44316GEAR, VANE PUMP

main44316-36020iBZB60201701-202012

main44316-60010iHZB60,70..23S,25S,26S,30S201701-202412

44316ARING

main96150-01700iBZB60201701-202012

44328BEND, VANE PUMP HOUSING

mainS443261180iBZB60201701-202412

44328CRING, O(FOR PUMP HOUSING END)

main90029-20042iBZB60201701-202412

44330VALVE ASSY, FLOW CONTROL

main44330-36200iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

TWO GROOVE

main44330-36210iHZB70..19S201701-202412

ONE GROOVE

main44330-36220iHZB70..23S..WOC201701-202412

NO GROOVE

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

44342PLATE, VANE PUMP SIDE, REAR

main44342-36040iHZB70..19S201701-202412

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBZB60201701-202412

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90029-60003iHZB70..23S..WOC201701-202412

44347APIN, VANE PUMP

main44347-89101iBZB60201701-202412

4503

9161261035

main91612-61035

91612B1020

main91612-B1020

26 parts on this diagram · 9 diagrams in section
