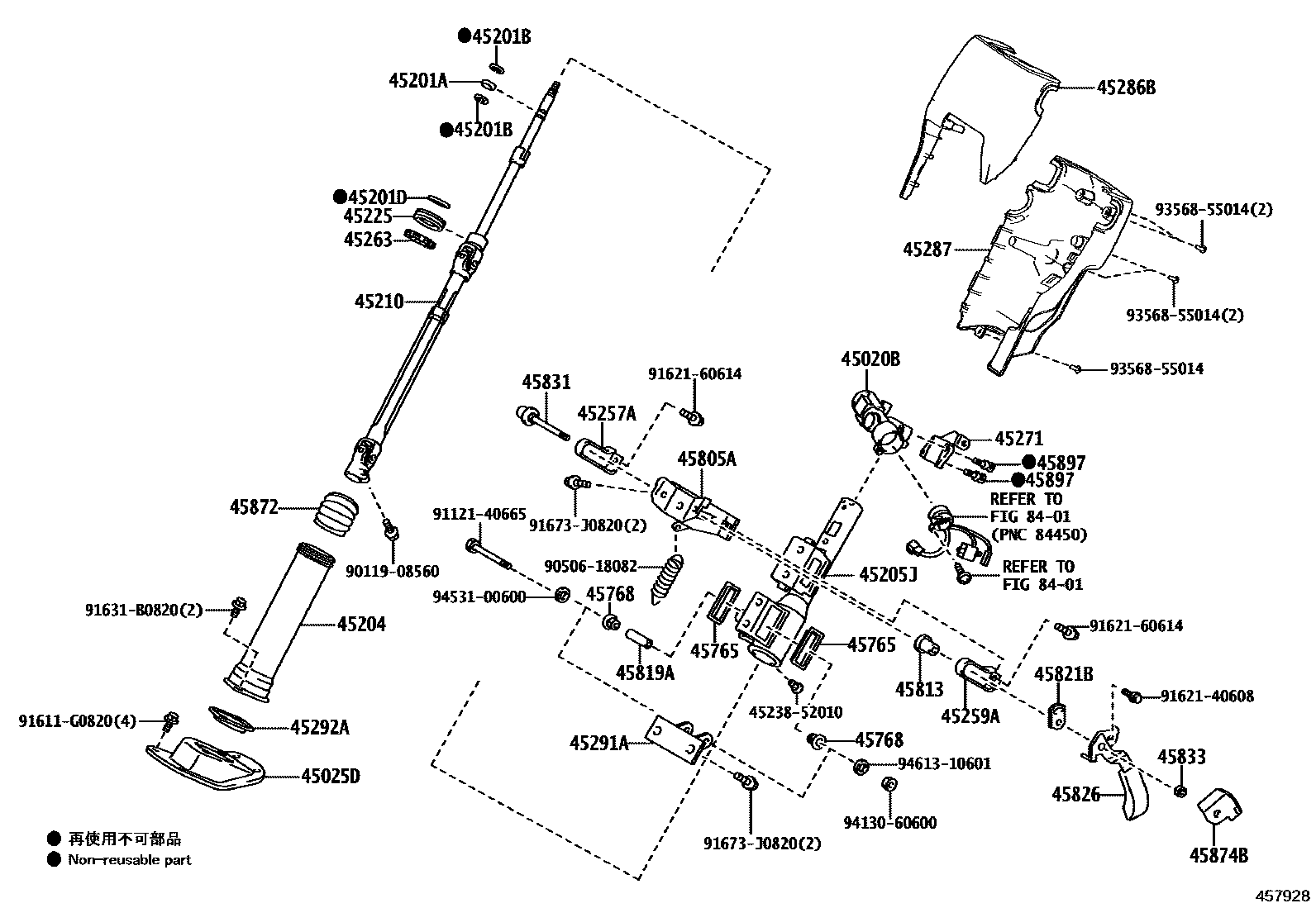

STEERING COLUMN & SHAFT

0001 1W(TILT & TELESCOPIC) 0002 1W/O(TILT & TELESCOPIC)

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-36370iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

main45280-36390iXZB70..SA202303

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main45280-36400iGDB70..SA202201

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main45280-36410iXZB70..RHD..23S..GEN201701-202512

main45280-36420iGDB70..BTN201701-202512

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-36150iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-19006iBZB60,XZB60201701-202512

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iBZB60,XZB60201701-202512

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iXZB70..RHD..23S..GEN201701-202512

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36220iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)201701-202512

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36230iGDB70..DX..GEN201701-202512

main45205-36240iXZB80..5F202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45205-36240iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45205-36240iGDB70..DX..GEN202401

FIJI SPEC

45210SHAFT ASSY, STEERING MAIN

main45210-36120iBZB60,XZB60201701-202512

45225BLOCK, BEARING

main45225-26010iBZB60,XZB60201701-202512

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iTRB60,70..20S,23S202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45257-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45257-37010iGDB70..DX..GEN202401

FIJI SPEC

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-36010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45259-36010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45259-36010iGDB70..DX..GEN202401

FIJI SPEC

45263RING, STEERING COLUMN, NO.1

main45263-32010iBZB60,XZB60201701-202512

45271CLAMP, STEERING COLUMN, UPPER

main45271-36010iBZB60,XZB60201701-202512

45286BCOVER, STEERING COLUMN, UPR

main45286-36870-C0iGDB70..SA;GDB60,XZB70..BTN,SA201701-202512

BLACK,TRIM1#

main45286-36870-C0iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC),BLACK,TRIM1#

main45286-36870-C0iGDB70..DX..GEN202401

FIJI SPEC,BLACK,TRIM1#

main45286-36880-C0iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..5F;XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN)201701-202512

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-36390-C0iGDB70..DX..GEN202401

FIJI SPEC,BLACK,TRIM1#

main45287-36390-C0iXZB70..SA;XZB80..6FC201701-202512

BLACK,TRIM1#

main45287-36390-C0iHZB70..30S..WOC;XZB70..RHD..29S;TRB60,70..(20S,23S)..6F;GDB70,HZB70..(02S,23S,30S)..WC..(GEN,TAIW)202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC),BLACK,TRIM1#

main45287-36400-C0iGDB70..DX..GEN201701-202512

BLACK,TRIM1#

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45803-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45803-37010iGDB70..DX..GEN202401

FIJI SPEC

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-36060iBZB60,XZB60201701-202512

45765GUIDE, TELESCOPIC STEERING

main45765-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45765-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45765-37010iGDB70..DX..GEN202401

FIJI SPEC

45768BUSH, TELESCOPIC STEERING

main45768-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45768-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45768-37010iGDB70..DX..GEN202401

FIJI SPEC

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-36010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45805-36010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45805-36010iGDB70..DX..GEN202401

FIJI SPEC

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202512

OD=30

main45813-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

OD=30,STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45813-37010iGDB70..DX..GEN202401

OD=30,FIJI SPEC

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main90387-06037iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main90387-06037iGDB70..DX..GEN202401

FIJI SPEC

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45821-12010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45821-12010iGDB70..DX..GEN202401

FIJI SPEC

45826LEVER, STEERING TILT

main45826-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45826-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45826-37010iGDB70..DX..GEN202401

FIJI SPEC

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45831-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45831-37010iGDB70..DX..GEN202401

FIJI SPEC

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45833-37010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45833-37010iGDB70..DX..GEN202401

FIJI SPEC

45872COVER, STEERING COLUMN TUBE

main45872-36040iBZB60,XZB60201701-202512

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-36010iXZB70,80..4FC;XZB70..5F..ARL201701-202401

main45874-36010iHZB70..30S..STD;XZB70..RHD..29S;HZB70,TRB60,70,XZB80..(01S,20S,23S)..5F..WC202101-202512

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main45874-36010iGDB70..DX..GEN202401

FIJI SPEC

45897BOLT, STEERING LOCK SET

main45897-12050iBZB60,XZB60201701-202512

8401

4523852010CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010

9011908560

main90119-08560

9050618082

main90506-18082

9112140665

main91121-40665

91611G0820

main91611-G0820

9162140608

main91621-40608

9162160614

main91621-60614

91631B0820

main91631-B0820

91673J0820

main91673-J0820

9356855014

main93568-55014

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

43 parts on this diagram · 2 diagrams in section
