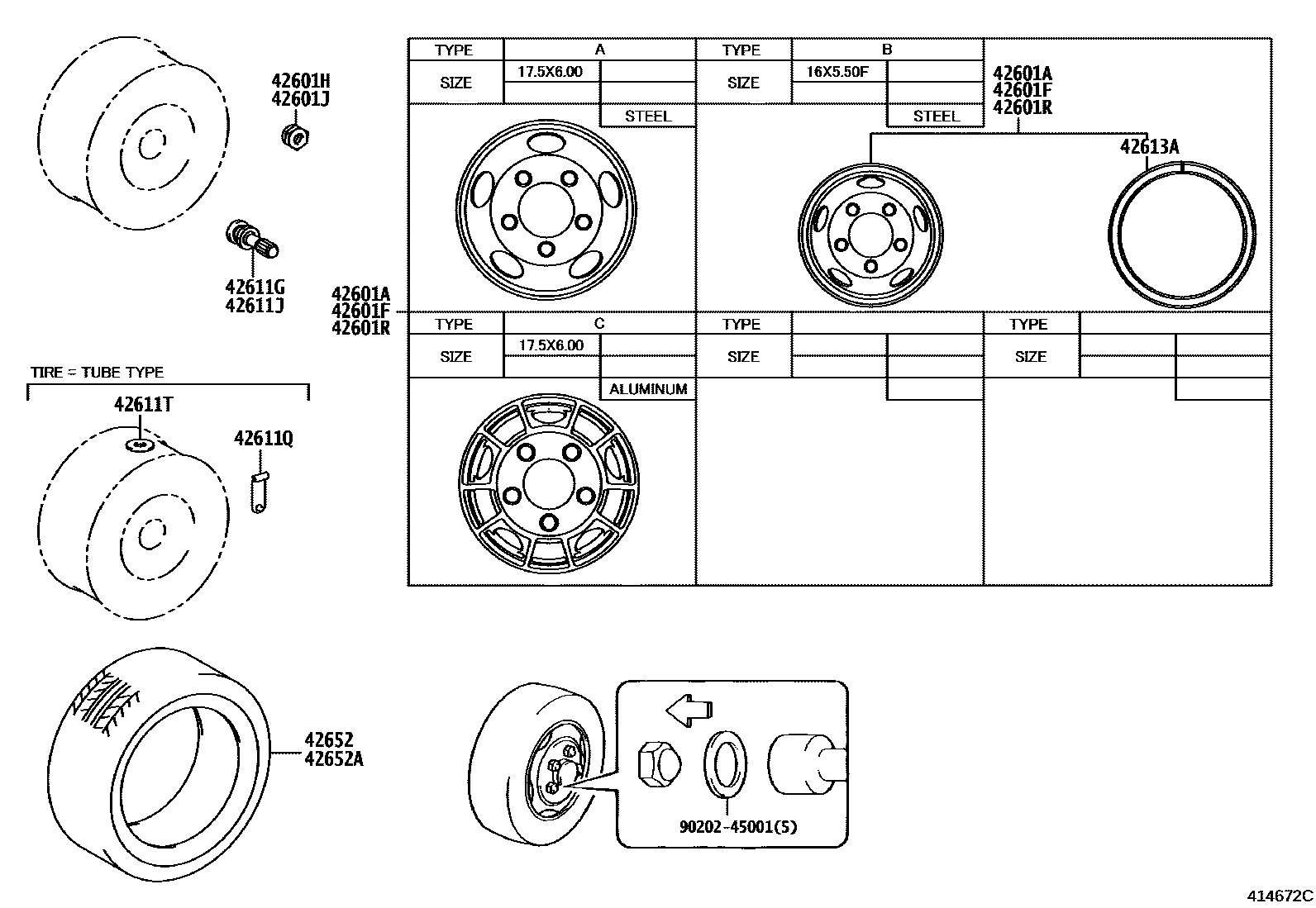

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1WHEEL CAP 0003 1BALANCE WEIGHT

42601AWHEEL, DISC (FOR SPARE)

main42601-36721iXZB70..RHD..23S..GEN¥13,500201701-202512

17.5X6.00, #,TYPE A:REFER ILLUST.

main42601-36721iGDB70..DX..ARL;XZB70..20S..5F;GDB70..RHD..(EX,STD)..(ARL,GEN)¥13,500202201-202512

17.5X6.00, #,SINGAPORE SPEC,TYPE A:REFER ILLUST.

main42611-36051iXZB80¥58,700202201-202512

17.5X6.00, #,TYPE C:REFER ILLUST.

42601FWHEEL, DISC (FOR FRONT)

main42601-36721iXZB70..23S..GCC¥13,500201701-202512

17.5X6.00, #,TYPE A:REFER ILLUST.

main42601-36721iGDB70..DX..ARL;XZB70..20S..5F;GDB70..RHD..(EX,STD)..(ARL,GEN)¥13,500202201-202512

17.5X6.00, #,SINGAPORE SPEC,TYPE A:REFER ILLUST.

main42611-36051iXZB80¥58,700202201-202512

17.5X6.00, #,TYPE C:REFER ILLUST.

42601HNUT,HUB (FOR FRONT AXLE)

main90942-01091iXZB80¥520202201-202512

RH

main90942-01092iXZB80¥520202201-202512

LH

main90942-01107iBB60,XZB60..20S,26S¥550201701-202512

RH

main90942-01107iXZB80..6FC¥550202201-202512

SINGAPORE SPEC,RH

main90942-01108iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)¥550201701-202512

LH

main90942-01108iGDB70..DX..ARL;XZB70..20S..5F;GDB70..RHD..(EX,STD)..(ARL,GEN)¥550202201-202512

SINGAPORE SPEC,LH

42601JNUT,HUB (FOR REAR AXLE)

main42633-55030iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD¥710201701-202512

RH

main42634-55030iXZB70..RHD..23S..GEN¥710201701-202512

LH

42601RWHEEL, DISC (FOR REAR)

main42601-36721iGDB70..DX..ARL;XZB70..20S..5F;GDB70..RHD..(EX,STD)..(ARL,GEN)¥13,500201701-202512

17.5X6.00, #,TYPE A:REFER ILLUST.

main42601-36721iGDB70..DX..ARL;XZB70..20S..5F;GDB70..RHD..(EX,STD)..(ARL,GEN)¥13,500202201-202512

17.5X6.00, #,SINGAPORE SPEC,TYPE A:REFER ILLUST.

main42611-36061iXZB80¥58,700202201-202512

17.5X6.00, #,TYPE C:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05023iBZB60,XZB60¥380201701-202512

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05023iBZB60,XZB60¥380201701-202512

42611QCLIP (FOR TUBE)

42611TWASHER (FOR TUBE)

42613ARING, DISC WHEEL SIDE

42652TIRE

main42652-36121iXZB70..TAIW201701-201705

215/70R17.5

sub42652-36122

main42652-36122iXZB70..TAIW201706-201908

215/70R17.5

main42652-36171iBB60,BZB60,70,HZB70,TRB60,70,XZB60,70..ARL,GCC,GEN201701-201705

215/70R17.5

sub42652-36172

42652ATIRE (FOR SPARE)

main42652-36121iXZB70..TAIW201701-201705

215/70R17.5

sub42652-36122

main42652-36122iXZB70..TAIW201706-201908

215/70R17.5

main42652-36171iBB60,BZB60,70,HZB70,TRB60,70,XZB60,70..ARL,GCC,GEN201701-201705

215/70R17.5

sub42652-36172

9020245001

main90202-45001¥90

13 parts on this diagram · 3 diagrams in section
