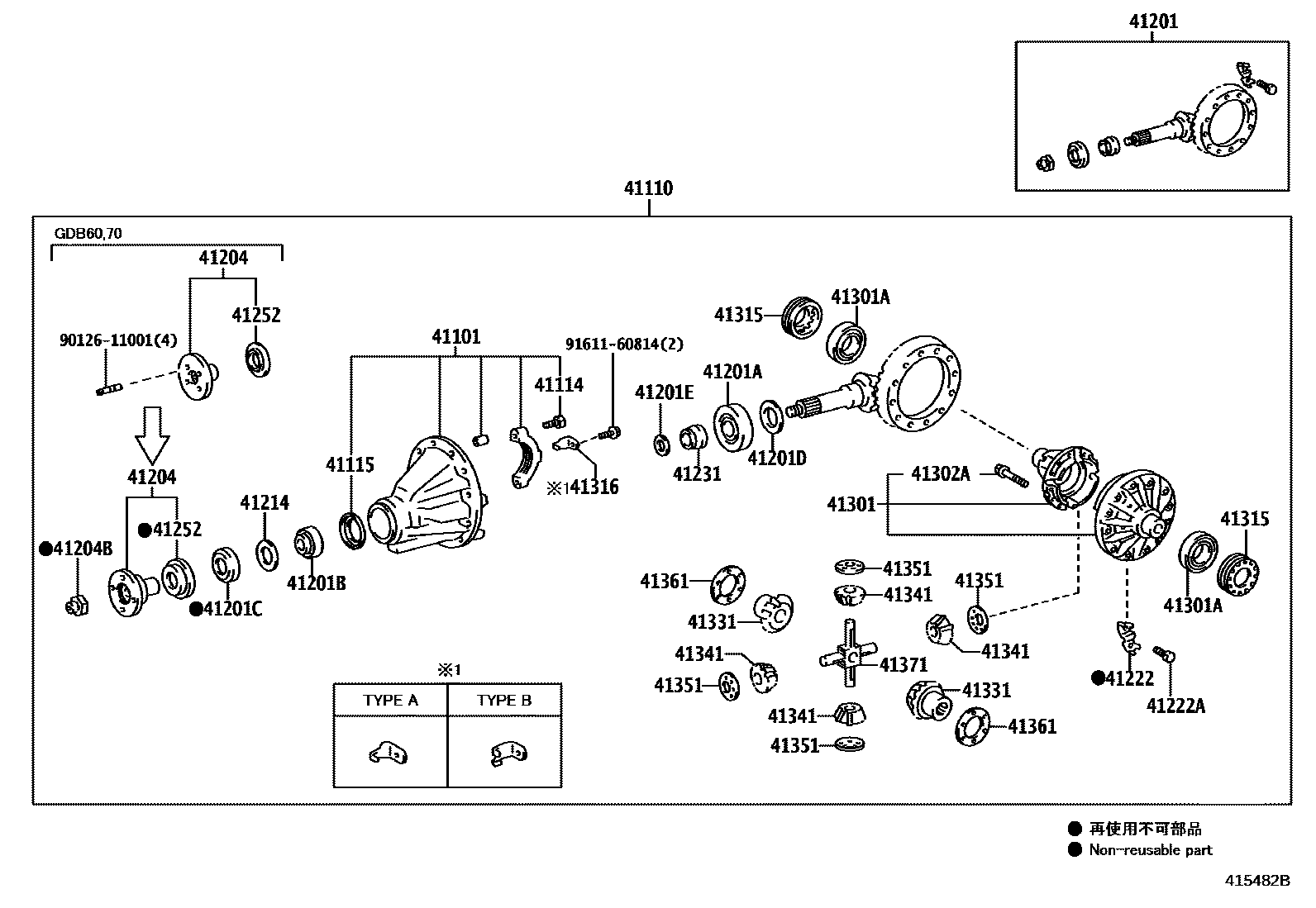

REAR AXLE HOUSING & DIFFERENTIAL

0001 1REAR DIFFERENTIAL CARRIER 0002 1REAR AXLE HOUSING

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-37010iBZB60,XZB60201701-202512

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36661iHZB60;TRB60,70..6F;HZB70..WC..GEN201701-202412

*FGR=45:8=5.625

main41110-36671iHZB70..LHD..WC..GEN201701-202303

*FGR=41:7=5.857

main41110-36681iTRB70201701-202412

*FGR=43:7=6.142

main41110-36720iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

*FGR=43:8=5.375

main41110-37081iXZB70..6FC201908-202512

*FGR=37:8=4.625

main41110-37091iXZB70,80..4FC201701-202012

*FGR=39:8=4.875

main41110-37111iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

*FGR=43:8=5.375

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-16022iBZB60,XZB60201701-202512

41115RING, DIFFERENTIAL OIL STORAGE

main41115-37010iBZB60,XZB60201701-202512

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-39798iTRB70201701-202412

*FGR=43:7=6.142

main41201-80591iXZB70..6FC201908-202512

*FGR=37:8=4.625

main41201-80601iXZB70,80..4FC201701-202012

*FGR=39:8=4.875

main41201-80757iHZB70..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202412

*FGR=45:8=5.625

main41201-80758iHZB70..LHD..WC..GEN201701-202201

*FGR=41:7=5.857,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857

main41201-80758iTRB60..GEN201701-202303

*FGR=41:7=5.857

main41201-80760iGDB60;XZB70..SA;XZB70..LHD..DX;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512

*FGR=43:8=5.375

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40100iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35108iBB60,XZB60..20S,26S201701-202512

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48024iBZB60,XZB60201701-202512

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-40004iTRB60,70..GCC201701-202512

T=1.05

main90564-40006iBZB60,XZB60201701-202512

T=1.075

main90564-40007iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)201701-202512

T=1.10

main90564-40008iTRB60,70..GCC201701-202512

T=1.125

main90564-40009iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,201701-202512

T=1.15

main90564-40010iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=1.175

main90564-40011iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)201701-202512

T=1.20

main90564-40012iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

T=1.225

main90564-40013iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=1.25

main90564-40014iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

T=1.275

main90564-40015iBB60,XZB60..20S,26S201701-202512

T=1.30

main90564-40016iBZB60,XZB60201701-202512

T=1.325

main90564-40017iTRB60,70..GCC201701-202512

T=1.35

main90564-40018iBZB60,XZB60201701-202512

T=1.375

main90564-40019iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

T=1.40

main90564-40020iBB60,XZB60..20S,26S201701-202512

T=1.425

main90564-40021iBB60,XZB60..20S,26S201701-202512

T=1.45

main90564-40022iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=1.475

main90564-40023iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

T=1.50

main90564-40024iBB60,XZB60..20S,26S201701-202512

T=1.525

main90564-40025iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=1.55

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBB60,XZB60..20S,26S201701-202512

T=1.80

main90564-35020iBZB60,XZB60201701-202512

T=1.82

main90564-35021iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

T=1.84

main90564-35022iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=1.86

main90564-35023iXZB70..RHD..23S..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)201701-202512

T=1.88

main90564-35024iTRB60,70..GCC201701-202512

T=1.90

main90564-35025iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

T=2.00

main90564-35026iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,201701-202512

T=2.10

main90564-35027iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=2.20

main90564-35028iBZB60,XZB60201701-202512

T=2.30

main90564-35029iTRB60,70..GCC201701-202512

T=2.40

main90564-35030iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

T=2.50

main90564-35031iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,201701-202512

T=2.60

main90564-35032iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

T=2.70

main90564-35033iBB60,XZB60..20S,26S201701-202512

T=2.80

main90564-35034iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

T=2.90

main90564-35035iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

T=3.00

main90564-35036iTRB60,70..GCC201701-202512

T=1.81

main90564-35037iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=1.83

main90564-35038iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

T=1.85

main90564-35039iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=1.87

main90564-35040iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=1.89

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36090iBB60,XZB60..20S,26S201701-202512

main41204-36100iGDB70..BTN202201-202512

41204BNUT (FOR REAR DRIVE PINION)

main90179-22029iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-37010iBZB60,XZB60201701-202512

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBZB60,XZB60201701-202512

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBZB60,XZB60201701-202512

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-37020iBZB60,XZB60201701-202512

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBZB60,XZB60201701-202512

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-52004iBZB60,XZB60201701-202512

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12087iBZB60,XZB60201701-202512

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iXZB70..RHD..23S..GEN201701-202512

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBZB60,XZB60201701-202512

TYPE A:REFER ILLUST.

main41317-36011iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

TYPE B:REFER ILLUST.

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBZB60,XZB60201701-202512

41341PINION, REAR DIFFERENTIAL

main41341-55013iBZB60,XZB60201701-202512

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iTRB60,70..GCC201701-202512

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60011iBB60,XZB60..20S,26S201701-202512

T=1.60

main41361-60021iXZB70..RHD..23S..GEN201701-202512

T=1.75

main41361-60031iXZB70..6FC;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

T=1.90

main41361-60041iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=2.05

main41361-60480iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

T=1.55

main41361-60490iTRB60,70..GCC201701-202512

T=1.65

main41361-60500iXZB70..RHD..23S..GEN201701-202512

T=1.70

main41361-60510iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

T=1.80

main41361-60520iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,201701-202512

T=1.85

main41361-60530iXZB70..RHD..23S..GEN201701-202512

T=1.95

main41361-60540iXZB70..RHD..23S..GEN201701-202512

T=2.00

main41361-60550iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

T=2.10

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBB60,XZB60..20S,26S201701-202512

9012611001

main90126-11001

9161160814

main91611-60814

29 parts on this diagram · 2 diagrams in section
