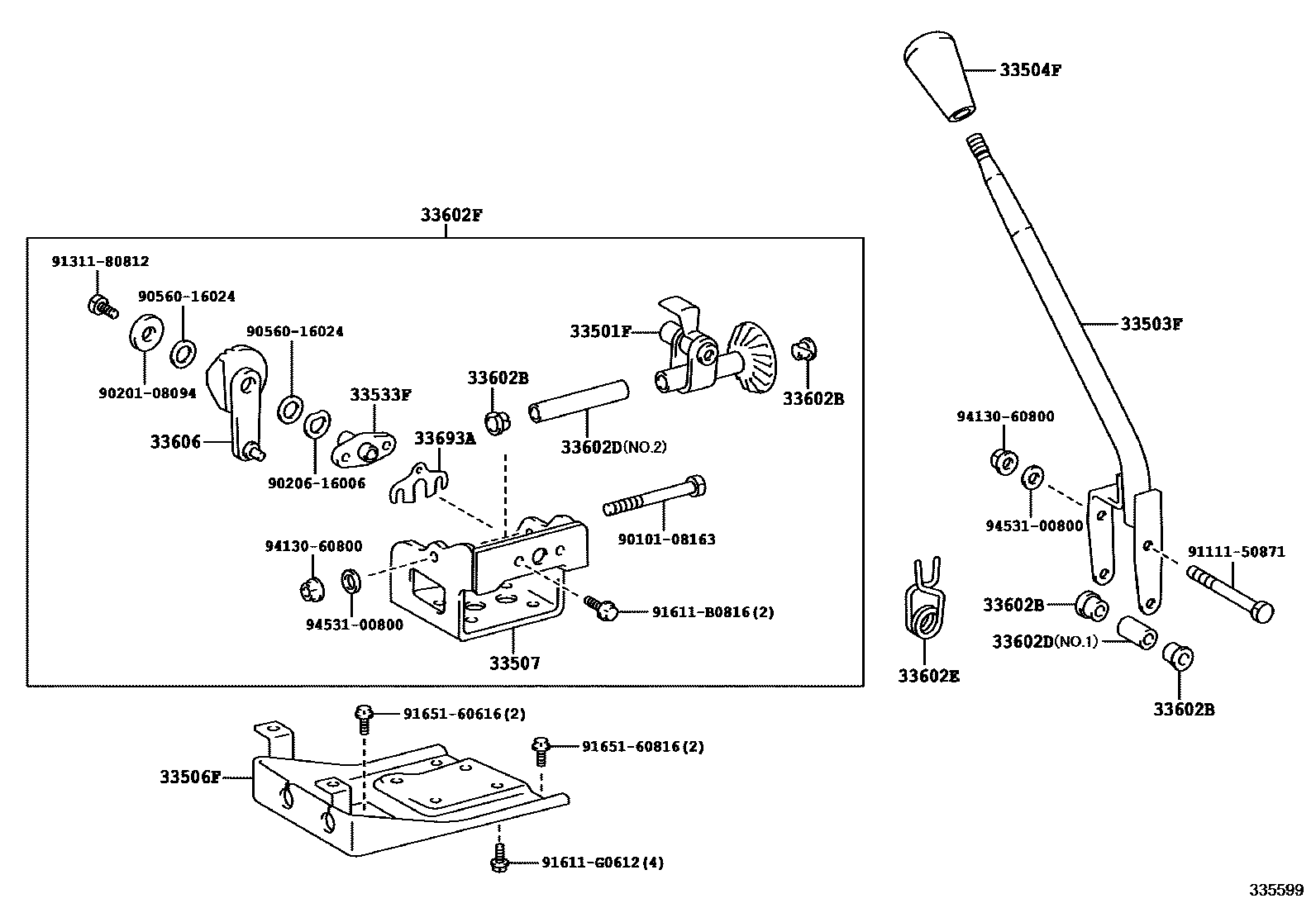

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-36240iBB60,XZB60..LHD201701-202412

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-36060iXZB70,80..(01S,20S)..5F201701-202512

main33055-36070iBB60,XZB60..LHD201701-202412

main33055-36080iBB60..RHD201701-202201

main33503-36130iXZB80..6FC201701-202512

main33503-36170iGDB70..LHD202201

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

BLACK,TRIM1#

sub33504-36051

main33504-37060-C0iTRB60,70..6F202501

BLACK,TRIM1#

main33542-20100-C0iXZB70,80..4FC201701-202512

BLACK,TRIM1#

sub33542-20100

main33542-36070-C0iGDB60;GDB70..DX..(GEN,SA)202201-202512

BLACK,TRIM1#

main33542-36080-C0iGDB70..LHD202201

BLACK,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-36010iBZB60,XZB60201701-202512

main33506-36020iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202412

main33571-36210iBB60..RHD201701-202201

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-36040iHZB70..30S..WOC;HZB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC;HZB60,TRB70..LHD..(26S,30S)201701-202412

33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)

main33533-36050iBB60,XZB60..LHD201701-202412

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iXZB70..22S..GEN201701-202512

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iXZB70..SA;XZB70..RHD..29S201701-202512

NO.1:REFER ILLUST.

main90387-08148iXZB70..RHD..23S..GEN201701-202512

NO.2:REFER ILLUST.

main90387-08153iHZB70..23S..WOC201701-202412

NO.2:REFER ILLUST.

main90440-13002iBB60,XZB60..LHD201701-202412

NO.1:REFER ILLUST.

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03066iBB60,XZB60..LHD201701-202412

main90949-03067iXZB70,80..RHD..5F..(GEN,SA)201701-202512

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-36031iXZB70..22S..GEN201701-202512

main33602-36040iHZB70..23S..WOC201701-202412

33606LEVER SUB-ASSY, WIRE PULL

main33606-36020iBB60,XZB60..LHD201701-202412

33693ASHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT)

main33693-36050iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202412

T=0.6

main33693-36060iTRB60,70..GCC201701-202412

T=0.8

main33693-36070iBB60,XZB60..LHD201701-202412

T=1.0

main33693-36080iHZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202412

T=1.2

main33693-36090iTRB70..WOC;XZB70..19S;HZB70..23S..GCC201701-202412

T=1.4

9010108163

main90101-08163

9020108094

main90201-08094

9020616006

main90206-16006

9056016024

main90560-16024

9111150871

main91111-50871

9131180812

main91311-80812

91611B0816

main91611-B0816

91611G0612

main91611-G0612

9165160616

main91651-60616

9165160816

main91651-60816

9413060800

main94130-60800

9453100800

main94531-00800

24 parts on this diagram · 17 diagrams in section
