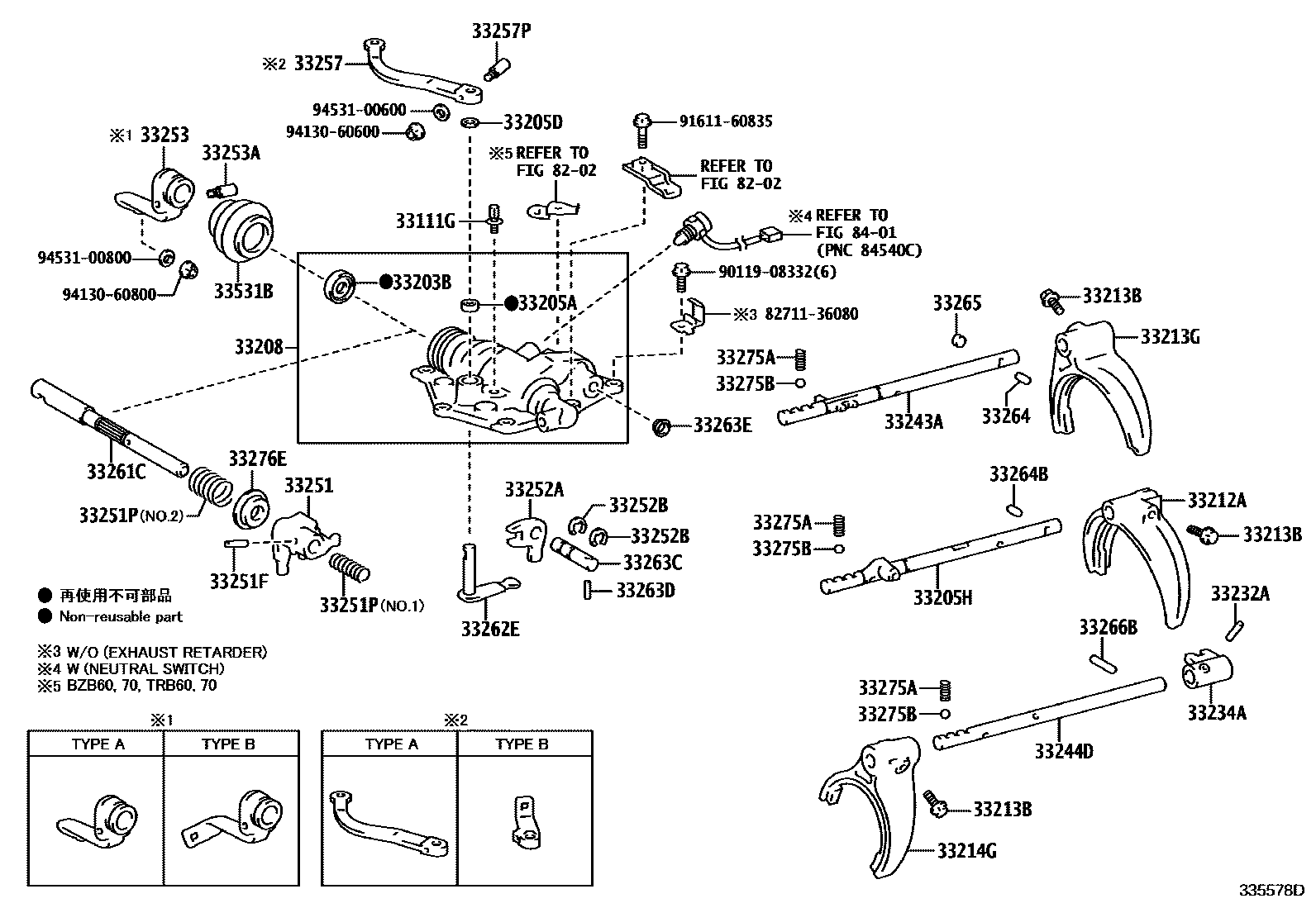

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
OD=28
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33234AHEAD, GEAR SHIFT, NO.3
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251LEVER, SHIFT & SELECT
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33251PSPRING (FOR SHIFT & SELECT LEVER)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
33252ALEVER, SHIFT, INNER NO.2
33252BRING, E (FOR SHIFT INNER LEVER)
33253LEVER, SHIFT OUTER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
33257PPIN, SELECT OUTER LEVER LOCK
33261CSHAFT, SHIFT & SELECT LEVER
33262ESHAFT, SELECT LEVER
33263CSHAFT, SHIFT LEVER, NO.2
33263DPIN (FOR SHIFT LEVER SHAFT)
33263EPLUG (FOR SHIFT LEVER SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=13.4,OD=9.53
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13
33265PIN, SHIFT INTERLOCK, NO.2
L=7.5,OD=9.67
33266BPIN, SHIFT INTERLOCK, NO.3
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=29.3,NO.1:REFER ILLUST.
L=31.7
L=115.5,NO.2:REFER ILLUST.
L=28.8
33275BBALL, SHAFT DETENT
33276ESEAT, SELECT SPRING, NO.1
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
8202
8401
8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011908332
9161160835
9413060600
9413060800
9453100600
9453100800
47 parts on this diagram · 3 diagrams in section
