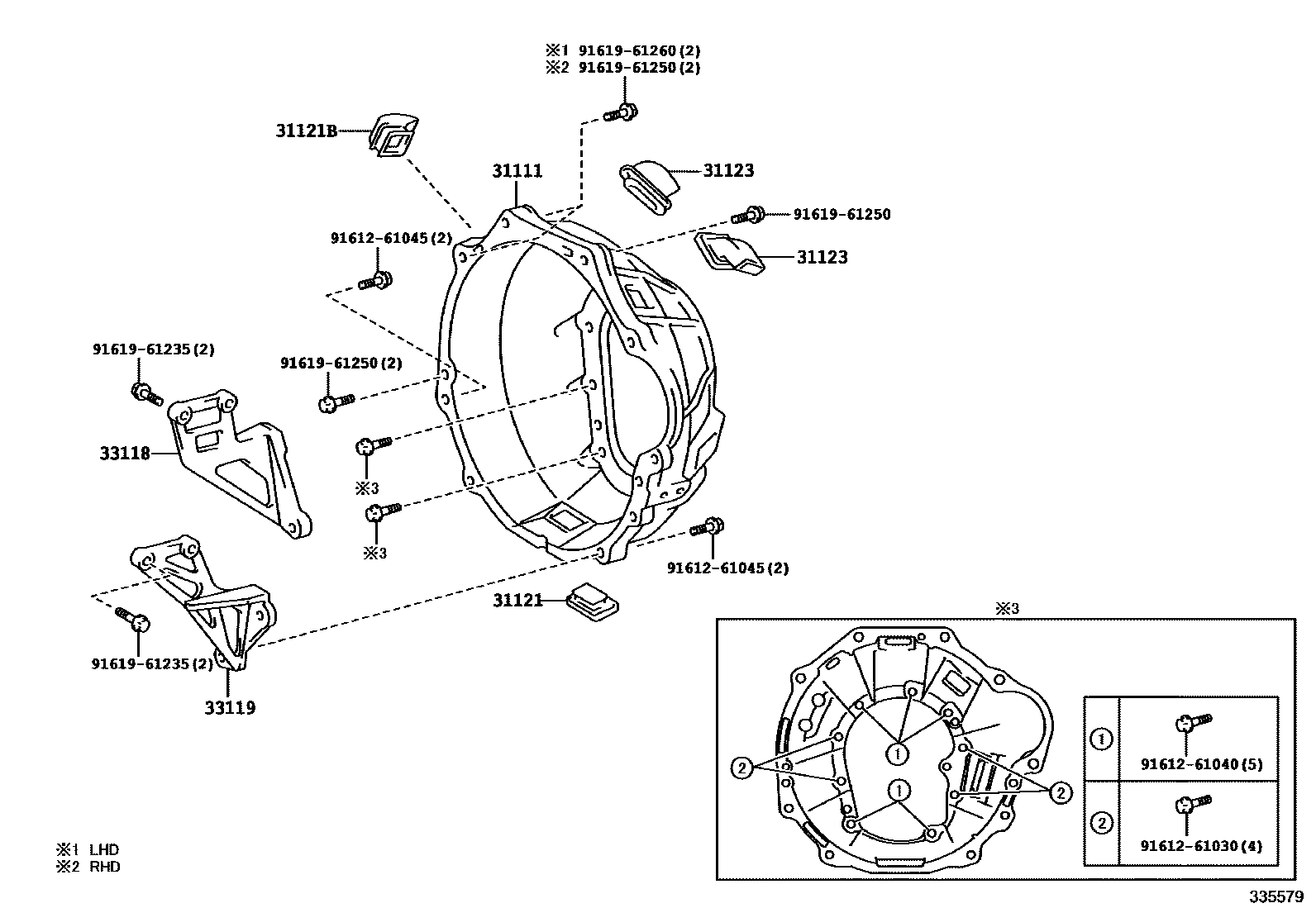

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M152 CLUTCH HOUSING 0002 1M155 CLUTCH HOUSING 0003 1M155 CLUTCH HOUSING 0004 1M156 CLUTCH HOUSING 0005 1M551 CLUTCH HOUSING 0006 1M152,M155 TRANSMISSION CASE 0007 1M156 TRANSMISSION CASE 0008 1M551 TRANSMISSION CASE 0009 1RE60

31111HOUSING, CLUTCH

main31111-36310iBB60201701-201907

main31111-36320iHZB70..19S201701-202412

main31111-36331iTRB60,70..19S,20S,23S,24S,30S201701-202412

main31111-36400iXZB60..GCC201701-202512

main31111-36410iTRB60,70..6F202501

main31111-37020iBZB70201701-202012

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXZB70..(19S,22S)..5F201701-202512

main31121-36110iBB60201701-202412

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-26020iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

main31121-28030iBB60201701-201907

31123COVER, CLUTCH HOUSING, NO.2

main31121-28041iTRB70..WOC201701-202412

main31121-36070iHZB60,70..23S,25S,26S,30S201701-202412

33118PLATE, STIFFENER, RH(MTM)

main33118-36021iBB60201701-201907

main33118-37020iBZB70201701-202012

main33118-60060iHZB70..23S..GCC201701-202412

33119PLATE, STIFFENER, LH(MTM)

main33119-36042iBB60201701-201907

main33119-37020iBZB60201701-202012

main33119-60070iHZB60;HZB70..WC..GEN;HZB70..30S..WOC201701-202412

9161261030

main91612-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

9161961260

main91619-61260

12 parts on this diagram · 9 diagrams in section
