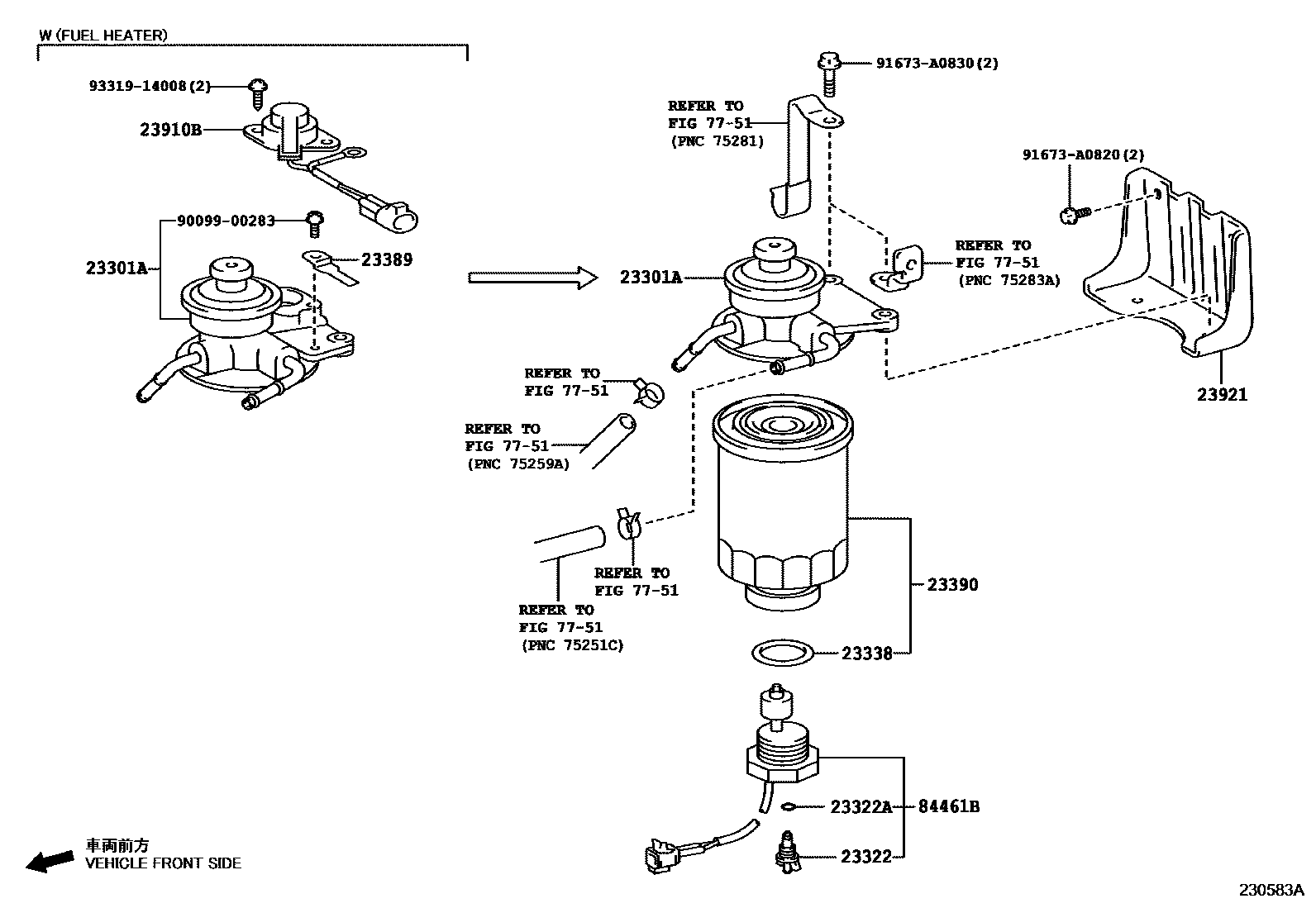

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1ENGINE SIDE, EURO 4 OR EURO 60007 1ENGINE SIDE, EURO 5 0008 1FRAME SIDE

23301ACAP ASSY, FUEL FILTER

main23380-17431i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main23380-58331i14B..BB60201701-201907

FUEL HEATER-WITH

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iN04C..XZB60201701-202512

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1GDFTV..GDB70..BTN201701-202512

23389CLAMP, FUEL FILTER

main23389-78350iN04C..XZB70..RHD..23S..GEN201701-202512

main23389-V4010i1GDFTV..GDB70..DX..GEN202201-202512

main23389-17380i14B..BB60201701-201907

FUEL HEATER-WITH

23390ELEMENT ASSY, FUEL FILTER

main23390-36760i1GDFTV..GDB70..ARL202201-202512

main23390-51080iN04C..XZB80..5F,6FC;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201801-202512

main23390-78280iN04C..XZB70201701-201801

main23390-30170i1HZ..HZB60,70..GEN201701-202201

FUEL HEATER-WITH

23910BHEATER ASSY, FUEL

main23910-17060i1HZ..HZB70..23S..WOC202201-202312

FUEL HEATER-WITH

23921SUPPORT, FUEL FILTER

main23921-17040i1HZ..HZB60,70..23S,25S,26S,30S201701-202512

7751

84461BSWITCH, LEVEL WARNING

main84461-28041iXZB60201701-202512

9009900283

main90099-00283

91673A0820

main91673-A0820

91673A0830

main91673-A0830

9331914008

main93319-14008

14 parts on this diagram · 8 diagrams in section
