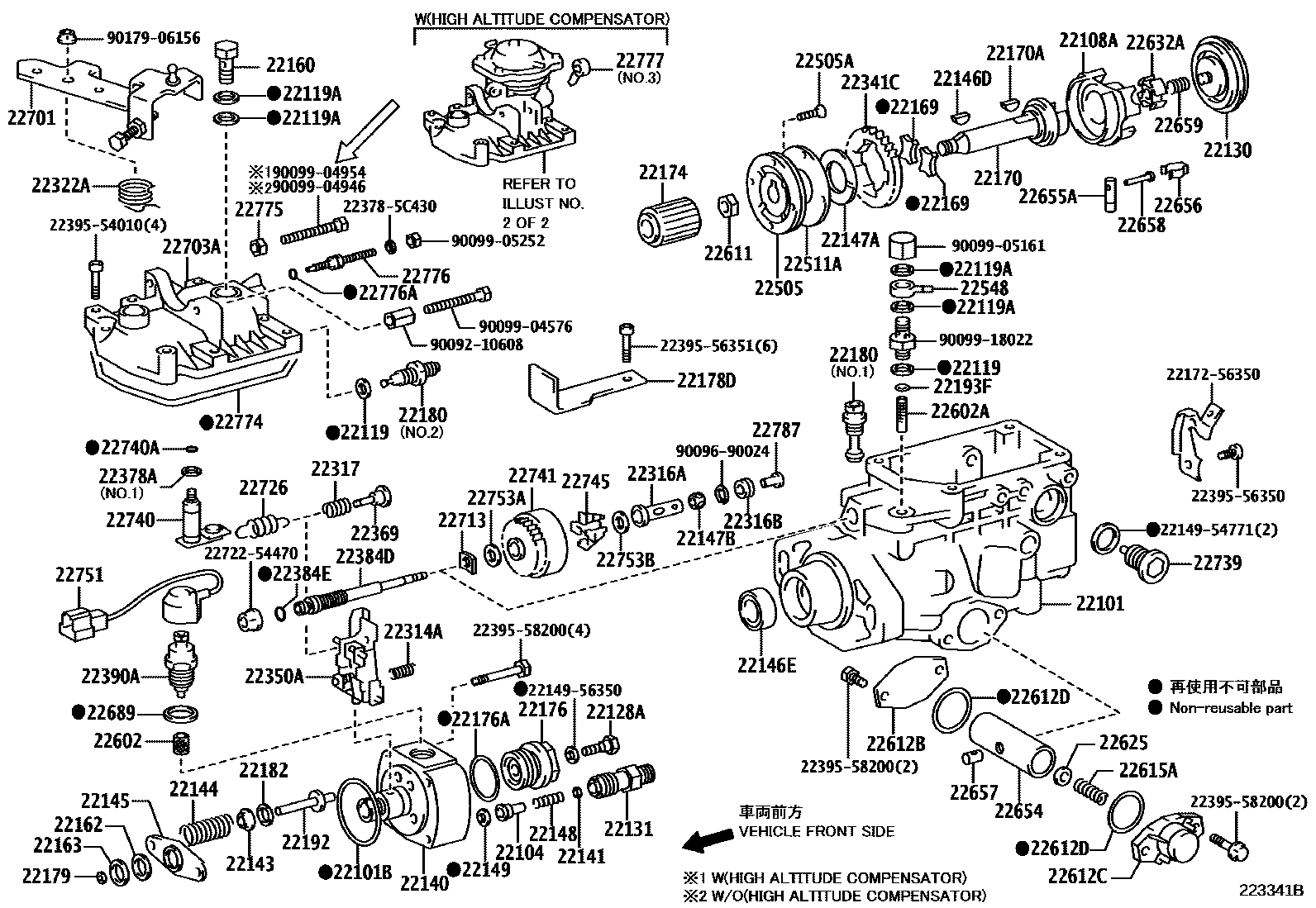

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
HIGH ALTITUDE COMPENSATOR-WITH
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
T=3.7
T=3.1
T=1.0
22119AWASHER, AIR BLEEDER NIPPLE, NO.2
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22174SHAFT, SPLINE
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22178DBRACKET, IDLE UP
22179SHIM, PLUNGER ADJUSTING
T=3.15
T=1.97
T=2.07
T=2.17
T=2.27
T=2.37
T=2.47
T=2.57
T=2.67
T=2.77
T=2.87
T=3.01
T=3.07
T=3.13
T=2.94
T=3.19
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
NO.1
NO.2
YEMEN SPEC,NO.3
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.80
ID=0.70
MARK 45
ID=0.65
ID=0.85
ID=0.75
MARK 23,HIGH ALTITUDE COMPENSATOR-WITH
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.1,L=8.2
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22548NIPPLE, SWIVEL
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9,NO.2
K=1.96,NO.1
K=1.77,NO.1
K=0.19,NO.1
K=2.5,L=52.2
K=2.7,L=51.7
K=0.16,L=34.6,NO.1
K=0.17,L=34.4,NO.1
K=2.10,L=53.6
K=2.30,L=52.9
22625WASHER, TIMER SENSOR ADJUSTING
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 383
MARK 384
MARK 247
MARK 478
MARK 479
22703ACOVER SUB-ASSY, GOVERNOR
HIGH ALTITUDE COMPENSATOR-WITH
HIGH ALTITUDE COMPENSATOR-WITH
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22726SPRING, SPEED CONTROL
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
L=20
L=17.5
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22775NUT, LOCK(FOR INJECTION PUMP)
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22777CAP, RUBBER(FOR BELLOWS)
HIGH ALTITUDE COMPENSATOR-WITH,NO.2
YEMEN SPEC,NO.1
HIGH ALTITUDE COMPENSATOR-WITH,NO.3:REFER ILLUST.
HIGH ALTITUDE COMPENSATOR-WITH,NO.3
22787PLUG, GOVERNOR SLEEVE
L=5.1
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.5
L=5.9
L=6.1
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956350GASKET, DELIVERY VALVE
main22149-56350
2217256350CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-56350
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009210608
main90092-10608
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009904954
main90099-04954
9009905161
main90099-05161
9009905252
main90099-05252
9009918022
main90099-18022
9017906156
main90179-06156
