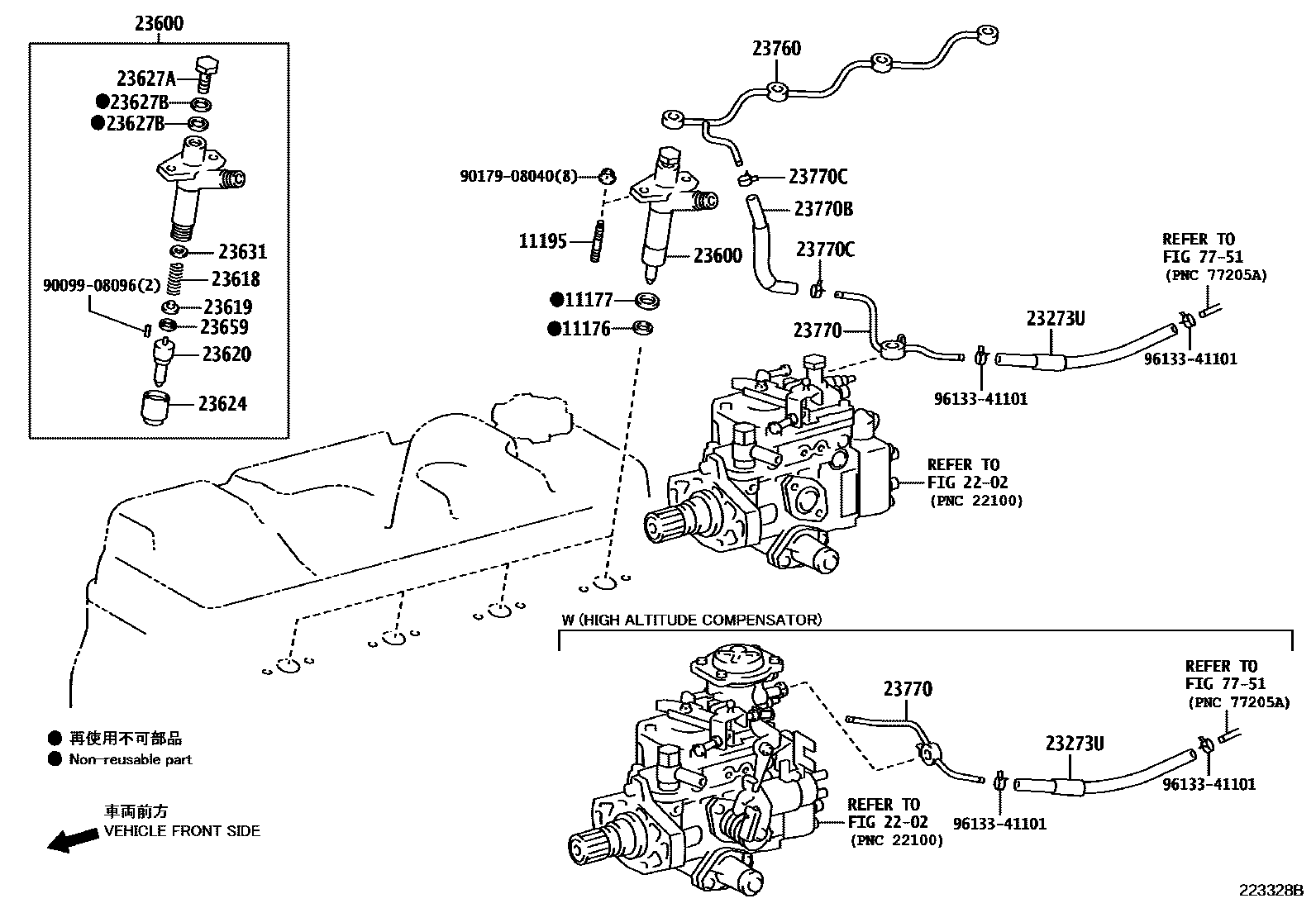

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1 0005 1EXCEPT EURO 6 0006 1EURO 6

11176SEAT, INJECTION NOZZLE

main11176-33010i1GDFTV..GDB70..BTN202201-202512

main11176-56031i14B..BB60201701-201907

main11176-64010i1HZ..HZB70..23S..GCC201701-202412

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i1HZ..HZB70..23S..GCC201701-202412

main23682-E0050iN04C..XZB80..5F,6FC;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

main90430-17003i14B..BB60201701-201907

11195BOLT, NOZZLE SET, STUD

main90116-08271i14B..BB60201701-201907

2202

23273UHOSE, FUEL, NO.2

main23273-58011i14B..BB60201701-201907

23600HOLDER & NOZZLE SET, NOZZLE

main23600-19075i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main23600-59415i14B..BB60201701-201907

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-17090i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main23618-58030i14B..BB60201701-201907

23619PIN, NOZZLE HOLDER PRESSURE

main23619-58030i14B..BB60201701-201907

main23619-64010i1HZ..HZB70..23S..GCC201701-202412

23620NOZZLE ASSY

main23620-19105i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main23620-58030i14B..BB60201701-201907

23624NUT, NOZZLE RETAINING

main23624-58010i14B..BB60201701-201907

main23624-64080i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XZB60201701-202512

main23625-58230i14B..BB60201701-201907

23627BWASHER, COPPER PLATE(FOR NOZZLE)

main90201-08106i14B..BB60201701-201907

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-58010i14B..BB60201701-201907

T=1.000

main23631-58011i14B..BB60201701-201907

T=1.050

main23631-58012i14B..BB60201701-201907

T=1.100

main23631-58013i14B..BB60201701-201907

T=1.150

main23631-58014i14B..BB60201701-201907

T=1.200

main23631-58015i14B..BB60201701-201907

T=1.250

main23631-58016i14B..BB60201701-201907

T=1.300

main23631-58017i14B..BB60201701-201907

T=1.350

main23631-58018i14B..BB60201701-201907

T=1.400

main23631-58019i14B..BB60201701-201907

T=1.450

main23631-64010i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=0.900

main23631-64011i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=0.925

main23631-64012i1HZ..HZB70..19S201701-202412

T=0.950

main23631-64013i1HZ..HZB70..19S201701-202412

T=0.975

main23631-64014i1HZ..HZB70..19S201701-202412

T=1.000

main23631-64015i1HZ..HZB70..19S201701-202412

T=1.025

main23631-64016i1HZ..HZB70..23S..WOC201701-202412

T=1.050

main23631-64017i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.075

main23631-64018i1HZ..HZB70..23S..WOC201701-202412

T=1.100

main23631-64019i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.125

main23632-58010i14B..BB60201701-201907

T=1.500

main23632-58011i14B..BB60201701-201907

T=1.550

main23632-58012i14B..BB60201701-201907

T=1.600

main23632-58013i14B..BB60201701-201907

T=1.650

main23632-58014i14B..BB60201701-201907

T=1.700

main23632-58015i14B..BB60201701-201907

T=1.750

main23632-58016i14B..BB60201701-201907

T=1.800

main23632-58017i14B..BB60201701-201907

T=1.275

main23632-58018i14B..BB60201701-201907

T=1.325

main23632-58019i14B..BB60201701-201907

T=1.375

main23632-64010i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.150

main23632-64011i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.175

main23632-64012i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.200

main23632-64013i1HZ..HZB70..23S..GCC201701-202412

T=1.225

main23632-64014i1HZ..HZB70..23S..GCC201701-202412

T=1.250

main23632-64015i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.275

main23632-64016i1HZ..HZB70..23S..GCC201701-202412

T=1.300

main23632-64017i1HZ..HZB70..23S..WOC201701-202412

T=1.325

main23632-64018i1HZ..HZB70..19S201701-202412

T=1.350

main23632-64019i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.375

main23633-58010i14B..BB60201701-201907

T=1.425

main23633-58011i14B..BB60201701-201907

T=1.475

main23633-58012i14B..BB60201701-201907

T=0.950

main23633-58013i14B..BB60201701-201907

T=0.700

main23633-58014i14B..BB60201701-201907

T=0.750

main23633-58015i14B..BB60201701-201907

T=0.800

main23633-58016i14B..BB60201701-201907

T=0.850

main23633-58017i14B..BB60201701-201907

T=0.900

main23633-58018i14B..BB60201701-201907

T=0.975

main23633-58019i14B..BB60201701-201907

T=1.025

main23633-64010i1HZ..HZB70..19S201701-202412

T=1.400

main23633-64011i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.425

main23633-64012i1HZ..HZB70..23S..WOC201701-202412

T=1.450

main23633-64013i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.475

main23633-64014i1HZ..HZB70..23S..WOC201701-202412

T=1.500

main23633-64015i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.525

main23633-64016i1HZ..HZB70..23S..WOC201701-202412

T=1.550

main23633-64017i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.575

main23633-64018i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.600

main23633-64019i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.625

main23634-58010i14B..BB60201701-201907

T=1.075

main23634-58011i14B..BB60201701-201907

T=1.125

main23634-58012i14B..BB60201701-201907

T=1.175

main23634-58013i14B..BB60201701-201907

T=1.225

main23634-64010i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.650

main23634-64011i1HZ..HZB70..23S..WOC201701-202412

T=1.675

main23634-64012i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.700

main23634-64013i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.725

main23634-64014i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.750

main23634-64015i1HZ..HZB70..23S..GCC201701-202412

T=1.775

main23634-64016i1HZ..HZB70..23S..WOC201701-202412

T=1.800

main23634-64017i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.825

main23634-64018i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.850

main23634-64019i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

T=1.875

main23635-64010i1HZ..HZB70..19S201701-202412

T=1.900

main23635-64011i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

T=1.925

main23635-64012i1HZ..HZB70..23S..WOC201701-202412

T=1.950

23659PACKING, TIP(FOR NOZZLE)

main23659-58030i14B..BB60201701-201907

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN201908-202512

main23760-0E011i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

(L)

main23760-11010i1GDFTV..GDB70202201-202206

(J)

sub23760-0E011

main23760-56060i14B..BB60201701-201907

main23761-17010i1HZ..HZB70..19S201701-202412

mainS230812630iN04C..XZB60..GCC201701-201908

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23762-17011i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main23770-0E011i1GDFTV..GDB70..BTN202201-202512

(L)

main23770-11011i1GDFTV..GDB70202201-202206

(J)

sub23770-0E011

main23770-56090i14B..BB60201701-201907

23770BHOSE, FUEL

main90447-11027i14B..BB60201701-201907

main95333-04020i1HZ..HZB70..23S..GCC201701-202412

L=200(*H,L=140),YEMEN SPEC

main95333-04020i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

L=200(*H,L=140)

main95333-04020i1HZ..HZB60,70..23S,25S,26S,30S201701-202312

L=200(*H,L=140),HIGH ALTITUDE COMPENSATOR-WITH

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10149i1HZ..HZB70..19S201701-202412

main96132-41000i14B..BB60201701-201907

7751

9009908096

main90099-08096

9017908040

main90179-08040

9613341101

main96133-41101

22 parts on this diagram · 6 diagrams in section
