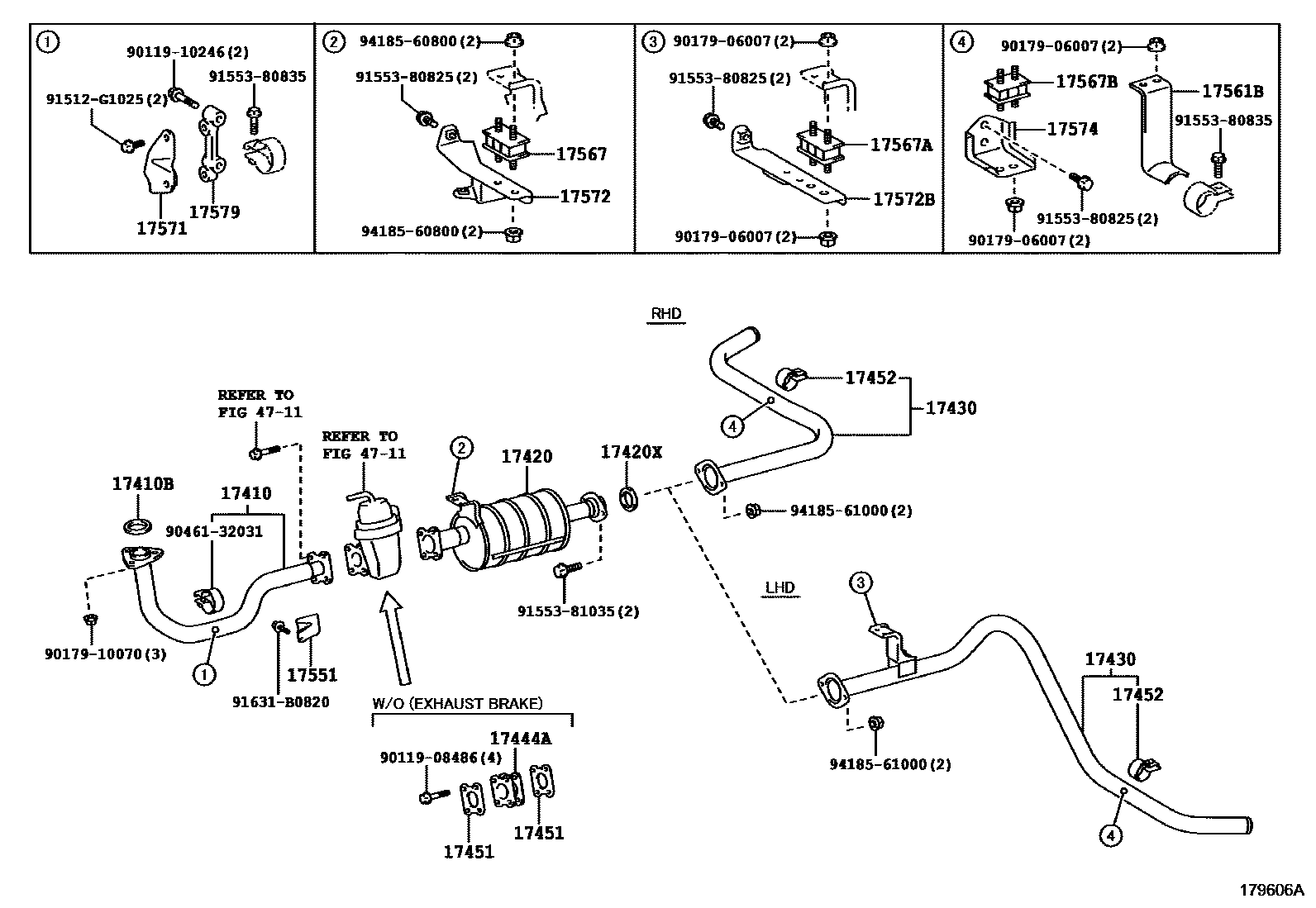

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1EURO 5 0019 1EURO 3 0020 1EURO 4 0021 1EURO 3 0022 1EURO 4 0023 1 0024 1EURO 5 0025 1EURO 6 0027 1EURO 6 0029 1EURO 5 0030 1 0031 1EURO 6 0032 1EURO 6 0033 1EURO 5 OR EURO 4 OR EURO 3 0034 1EURO 5 OR EURO 4 0036 1FIJI SPEC 0037 1 0038 1EURO 3

17410PIPE ASSY, EXHAUST, FRONT

main17401-17111i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main17401-58271i14B..BB60201701-201907

main17401-78400iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main17401-78400iN04C..XZB80..6FC201908-202512

main17401-E0S61iN04C..XZB70..ARL202101

main17410-48021i1BZFPE..BZB70201701-202012

main17410-75590i2TRFE..TRB60,70..GCC201701-202303

main17410-75600i2TRFE..TRB60..GEN201701-202412

main17410-78010iN04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202412

main17410-78010iN04C..XZB70..LHD..(23S,29S)..WC..GEN202201

PHILIPPINE SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17410-78010iN04C..XZB70..RHD..23S..GEN202201-202312

SRI LANKA SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17410-78010iN04C..XZB70..SA;N04C..XZB70..29S;N04C..XZB70..LHD..DX..GEN202201

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17410-78010iN04C..XZB70..WOC201701-202201

EXHAUST EMISSION CONTROL-EURO 4

main17410-78010iN04C..XZB70..23S..STD..GCC202304-202412

SAUDIARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 3

main17410-78010iN04C..XZB80..5F201908-201911

SINGAPORE SPEC

main17410-E0720iN04C..XZB70..RHD..29S201701-202412

EXHAUST EMISSION CONTROL-EURO 4

main17410-E0720iN04C..XZB70..GCC202201-202412

main17410-V4010i1GDFTV..GDB60,70..02S,25S202201-202512

main17410-V4020i2TRFE..TRB60,70..6F202501

17410BGASKET, EXHAUST PIPE

main17451-22070i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)201701-202512

main17451-E0110iN04C..XZB70,80..(01S,20S)..5F201908-202512

main17451-E0110iN04C..XZB70..WOC201701-202412

EXHAUST EMISSION CONTROL-EURO 4

main17451-E0110iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main90917-06059i1HZ..HZB70..19S201701-202412

main90917-06067iN04C..XZB70..22S..GEN201701-202412

main90917-06067iN04C..XZB70..23S..STD..GCC202304-202412

SAUDIARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 3

17420PIPE ASSY, EXHAUST, CENTER

main17403-17151i1HZ..HZB70..19S201701-202412

main17403-17250i1HZ..HZB70..GEN201701-202312

main17403-58402i14B..BB60201701-201907

main17403-75280i2TRFE..TRB60..6F201701-202303

main17403-78870iN04C..XZB70..ARL202101

main17403-78C40iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main17403-78C40iN04C..XZB80;N04C..XZB70..20S..5F201908-202512

main17420-17050i1HZ..HZB60201908-202201

main17420-75550i2TRFE..TRB70..GCC201701-202303

main17420-75560i2TRFE..TRB60..GEN201701-202412

main17420-78B60iN04C..XZB70..23S..STD..GCC202304-202412

SAUDIARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 3

main17420-78B60iN04C..XZB70..(19S,22S,23S,29S)..WC..(GCC,GEN,SA)201701-202412

main17420-78B70iN04C..XZB60201801-201907

main17420-78C20iN04C..XZB70..RHD..29S202201-202501

SRI LANKA SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17420-78C20iN04C..XZB70..19S202201-202412

main17420-78C20iN04C..XZB70..23S..GCC202201

PHILIPPINE SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17420-78C20iN04C..XZB70..LHD..(23S,29S)..WC..GEN202201

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4

main17420-78C20iN04C..XZB70..25S201701-202201

EXHAUST EMISSION CONTROL-EURO 4

main17420-V4020i1GDFTV..GDB70..GCC202201-202312

UAE SPEC

main17420-V4020i1GDFTV..GDB70..GCC202201

EXHAUST EMISSION CONTROL-EURO 6

main17420-V4020i1GDFTV..GDB70..ARL202201-202512

main17420-V4030i1GDFTV..GDB70..SA202201

main17420-V4030i1GDFTV..GDB70..23S..GCC202304-202501

EXHAUST EMISSION CONTROL-EURO 3

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74040i1HZ,2TRFE..HZB60,TRB70;N04C..XZB70..(19S,22S,23S,29S)..WC..(GCC,GEN,SA)201701-202312

NO.1:REFER ILLUST.

main17451-74040iN04C..XZB70,80..4FC;N04C,1BZFPE..BZB70,XZB70..(01S,22S)..5F..STD201701-202412

main17451-78100iN04C..XZB80..6FC201908-202512

NO.1

main17451-78100iN04C..XZB80..5F201908-202101

SINGAPORE SPEC,NO.1

main90917-06045i14B..BB60201701-201907

main90917-06054i1HZ..HZB70..GEN201701-202312

NO.2:REFER ILLUST.

main90917-06054i1HZ..HZB70..19S201701-202412

main90917-06090iN04C..XZB70,80..(01S,20S)..5F201908-202512

NO.2

main90917-06090iN04C..XZB80..5F201908-202101

SINGAPORE SPEC,NO.2

main90917-06095iN04C..XZB70..6FC..GEN201908-202512

NO.3

main90917-06095iN04C..XZB80..5F201908-202101

SINGAPORE SPEC,NO.3

17430PIPE ASSY, EXHAUST, TAIL

main17405-17290i1HZ..HZB70..LHD..GEN201701-202312

main17405-17300iN04C..XZB70..RHD..23S..GEN201701-202312

main17405-58730i14B..BB60..LHD201701-201907

main17405-58740i14B..BB60..RHD201701-201907

main17405-75640i2TRFE..TRB60..GCC201701-202412

main17405-78J70iN04C..XZB70..22S..GEN201801-202412

main17405-V4010i1GDFTV..GDB70..DX..GEN202401

main17430-17020i1HZ..HZB60..RHD201908-202201

main17430-17030i1HZ..HZB60..LHD201908-202201

main17430-48050i1BZFPE..BZB60201701-202012

main17430-75A10iN04C..XZB60..GCC201701-201907

main17430-75A20i2TRFE..TRB70..DX;2TRFE..TRB70..GEN201701-202412

main17430-78080iN04C..XZB70..ARL202101

main17430-78090iN04C..XZB60201701-201712

main17430-78100iN04C..XZB70,80..(01S,20S)..5F201701-202101

main17430-78110iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

main17430-78110iN04C..XZB70..TAIW201701

main17430-78120iN04C..XZB70..19S201701-202412

main17430-78130iN04C..XZB80;N04C..XZB70..20S..5F201908-202512

main17430-78130iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main17430-V4010i1GDFTV..GDB70..20S202201-202512

main17430-V4020i1GDFTV..GDB70..TAIW202201

main17430-V4030i1GDFTV..GDB70..DX..GEN202401

FIJI SPEC

main17430-V4030i1GDFTV..GDB70..ARL202201-202512

main17430-V4040i1GDFTV..GDB70..GCC202501-202601

OMAN SPEC

main17430-V4040i1GDFTV..GDB70..GCC202201-202501

main17430-V4040i1GDFTV..GDB70..(22S,23S)..GCC202501-202601

YEMEN SPEC

main17430-V4040i1GDFTV..GDB70..(22S,23S)..GCC202501-202601

UAE SPEC

main17430-V4040i1GDFTV..GDB70..(22S,23S)..GCC202501-202601

BAHRAIN SPEC

main17430-V4050i1GDFTV..GDB70..SA202201

main17430-V4060i1GDFTV..GDB70..GCC202201-202501

EXHAUST EMISSION CONTROL-EURO 5

main17430-V4060i1GDFTV..GDB70..LHD..(GCC,GEN)202501

main17430-V4080i1GDFTV..GDB70..23S..GCC202304-202501

EXHAUST EMISSION CONTROL-EURO 3

17444ASPACER, EXHAUST FRONT PIPE

main17404-58030i1HZ..HZB70..19S201701-202412

main17444-58010i14B..BB60201701-201907

main17444-78020iN04C..XZB60201701-202512

main17444-78020iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

17451GASKET, EXHAUST PIPE

main17451-74040i1GDFTV..GDB70..DX..GEN202401

main17451-78020iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201701-202101

main17451-78020iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

main46759-36030i14B..BB60201701-201907

main46759-36040i1HZ..HZB70..23S..WOC201701-202412

main90917-06073i1BZFPE..BZB70201701-202012

17452CLAMP, EXHAUST PIPE

main17452-75030i1HZ..HZB60..LHD201701-202201

main90461-32033iN04C..XZB70..19S;2TRFE..TRB70..WOC201701-202412

main90461-32037iN04C..XZB70..22S..GEN;1HZ,2TRFE..HZB70,TRB60..(20S,23S)..GCC201701-202412

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-17011i1BZFPE..BZB60201701-202412

main17551-78050iN04C..XZB70..SA;N04C..XZB70..LHD..DX;N04C..XZB70..(23S,29S)..STD..WC;1GDFTV,2TRFE..GDB60,TRB60,70..6F,6FC;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-17010iN04C,2TRFE..TRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202412

main17561-68010i1HZ..HZB70..19S201701-202412

main17561-75010i1HZ..HZB60..LHD201701-202201

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-58010i2TRFE..TRB60..GEN201701-202412

main17567-75050i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512

main17567-75050iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-17020i14B..BB60..LHD201701-201907

main17567-58010iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

main17567-58010i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main17567-75050i1GDFTV..GDB70..DX..GEN202401

FIJI SPEC

main17567-75050iN04C..XZB70..RHD..23S..GEN201701-202512

main17567-75050iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3

main17567-17020i2TRFE..TRB60..6F201701-202412

main17567-75060iN04C..XZB70..20S..5F;1GDFTV..GDB70..DX..ARL;N04C,1GDFTV..GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)201701-202512

main17567-75060i1GDFTV..GDB70..DX..GEN202401

FIJI SPEC

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-17080i1HZ..HZB70..23S..GCC201701-202412

main17571-58301i14B..BB60201701-202012

main17571-78110iN04C..XZB70,80..(01S,20S)..5F201701-202412

main17571-78110iN04C..XZB80..5F201908-201911

SINGAPORE SPEC

main17571-78110iN04C..XZB70..WOC201701-202312

EXHAUST EMISSION CONTROL-EURO 4

main17571-78110iN04C..XZB70..23S..STD..GCC202304-202412

EXHAUST EMISSION CONTROL-EURO 3

main17571-78140iN04C..XZB70,80..(01S,20S)..5F201908-202512

main17571-78140iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main17571-E0480iN04C..XZB70..LHD..(19S,23S,29S)..WC201701-202412

EXHAUST EMISSION CONTROL-EURO 4

main17571-E0480iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN202101-202412

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-17050i1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC;1HZ,2TRFE..HZB60,TRB70..26S,30S201701-202412

main17572-75220i1BZFPE..BZB60201701-201801

main17572-78271iN04C..XZB80..5F,6FC;N04C..XZB70..20S..5F201701-202512

main17572-78271iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

main17572-78460iN04C,1GDFTV..GDB70,XZB70..RHD..23S..(BTN,GEN)201801-202512

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-58090i14B..BB60..LHD201701-201907

main17572-75220iN04C..XZB70..STD..GEN201701-201801

main17572-75260i2TRFE..TRB60,70..GCC201701-202303

main17572-78460iN04C..XZB70..RHD..23S..GEN201801-202412

main17573-17010i1HZ..HZB70..23S,25S,30S201701-202412

main17573-17030iN04C..XZB80..4FC201908-202101

main17574-78120iN04C..XZB70..4FC;N04C..XZB70..5F..ARL201701-202412

main17574-78120iN04C..XZB70..23S..WC..GEN201908-202101

EXHAUST EMISSION CONTROL-EURO 5

main17574-78120i1GDFTV..GDB70..DX..GEN202401

FIJI SPEC

main17574-78180iN04C..XZB80..5F201908-202101

SINGAPORE SPEC

main17574-78180iN04C..XZB80..6FC201908-202512

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-58170iN04C,1BZFPE..BZB60,XZB60201701-202512

main17574-58170i1GDFTV..GDB70..DX..GEN202401

FIJI SPEC

main17574-75040i1GDFTV..GDB70..DX..GEN201701-202412

17579BRACKET, EXHAUST PIPE SUPPORT NO.1 SUB

main17579-73010i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

4711

9011908486

main90119-08486

9011910246

main90119-10246

9017906007

main90179-06007

9017910070

main90179-10070

9046132031

main90461-32031

91512G1025

main91512-G1025

9155380825

main91553-80825

9155380835

main91553-80835

9155381035

main91553-81035

91631B0820

main91631-B0820

9418560800

main94185-60800

9418561000

main94185-61000

31 parts on this diagram · 33 diagrams in section
