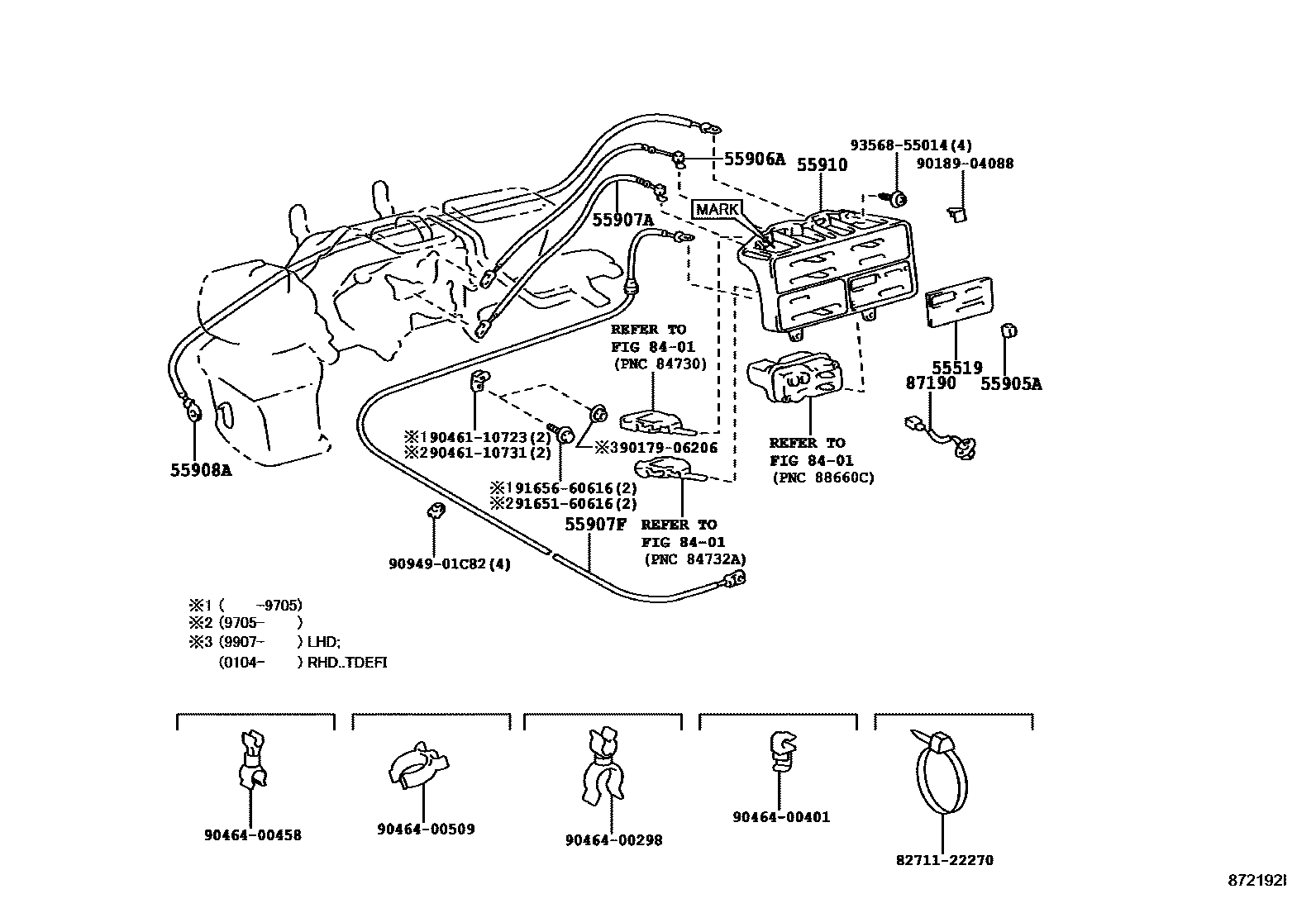

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1FRONT AIR DUCT & DAMPER 0003 1FRONT AIR DUCT & DAMPER 0004 1FRONT AIR DUCT & DAMPER 0006 1FRONT AIR DUCT & DAMPER 0007 1ROOF AIR DUCT & DAMPER 0009 1HONG KONG SPEC 0013 1ROOF AIR DUCT & DAMPER 0014 1DUCT W/O(DESTINATION EXPRESS 0015 1DUCT W(DESTINATION EXPRESS BO0016 1ROOF AIR DUCT 0017 1ROOF AIR DUCT 0019 1ROOF AIR DUCT 0020 1ROOF AIR DUCT 0021 1ROOF AIR DUCT 0022 1ROOF AIR DUCT 0023 1ROOF AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-36020iXZB50..WC..CBU;XZB50..LHD..WC..IV;BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,59..WC200408-201501

55905AKNOB, HEATER CONTROL

main55905-36030×2iBB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,HZB50,TRB40,50,XZB50..(21S,26S,30S)..WC..(4FC,5F)200408-201501

FRONT MANUAL HEATER

main55905-89115×6iBB42,HZB50,RZB40,50..WC..GCC199401-199505

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36070iBB50..RHD..6F199907-200105

main55906-36080iBB50,58..LHD..TDEFI200408-200608

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36070iBB50..EX..GEN;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main55907-36080iRZB40..HRF..GCC200408-200602

55907FCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36050iBB50..RHD..6F200408-200608

main55907-36090iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main55907-36091iBB50,RZB40,50..CHI199907-200211

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-36040iBB4#,5#,HZB50,RZB40,50199301-199907

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36120iBB40,42,HZB50..RHD..HRF..WC..(ARL,GEN)..5F199301-199901

MARK A

main55910-36121iBB40,42,HZB50..RHD..HRF..WC..5F199901-199907

MARK A

main55910-36130iBB42,HZB50..SCO199301-199407

MARK C OR P

main55910-36131iHZB50..4FC199907-200108

MARK V

main55910-36140iBB42..22S;HZB50..RHD..EX199907-200108

MARK E

main55910-36150iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50,RZB40..LHD..WC..CBU..5F199301-199505

MARK J

main55910-36151iRZB40,50,TRB40,50..WC200408-201501

FRONT MANUAL HEATER,MARK J

main55910-36170iBB40,HZB50..WOC..ARL199705-199901

W/O(AIR CONDITIONER),MARK B

main55910-36171iBB50..RHD..WOC..TDEFI199907-200408

COLD SPEC & FRONT MANUAL HEATER,MARK B

main55910-36190iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199301-199705

W/O(AIR CONDITIONER),MARK H

main55910-36191iHZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

FRONT MANUAL HEATER,MARK H

main55910-36210iRZB50..SRF..GEN;HZB50..30S..GEN..4FC;BB42,50,HZB50,RZB40..LHD..WOC199301-199901

MARK K OR L OR M

main55910-36211iBB42,HZB50..LHD..WOC201501

FRONT MANUAL HEATER,MARK M

main55910-36220iBB42,HZB50,RZB40,50..WC..GCC199401-199907

W/O(REAR HEATER),MARK Q OR R

main55910-36240iBZB40,XZB40..17S201501

MARK X

8401

87190SWITCH ASSY, TEMPERATURE CONTROL

main87190-36010iBB5#..STD;HZB50..SRF;BB40,42..WOC;BB42..LHD..WC;HZB50..RHD..TD;HZB50..HRF..WOC;HZB50..LHD..HRF..WC199301-199907

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017906206

main90179-06206

9018904088

main90189-04088

9046110723

main90461-10723

9046110731

main90461-10731

9046400298

main90464-00298

9046400401

main90464-00401

9046400458

main90464-00458

9046400509

main90464-00509

9094901C82

main90949-01C82

9165160616

main91651-60616

9165660616

main91656-60616

9356855014

main93568-55014

22 parts on this diagram · 17 diagrams in section
