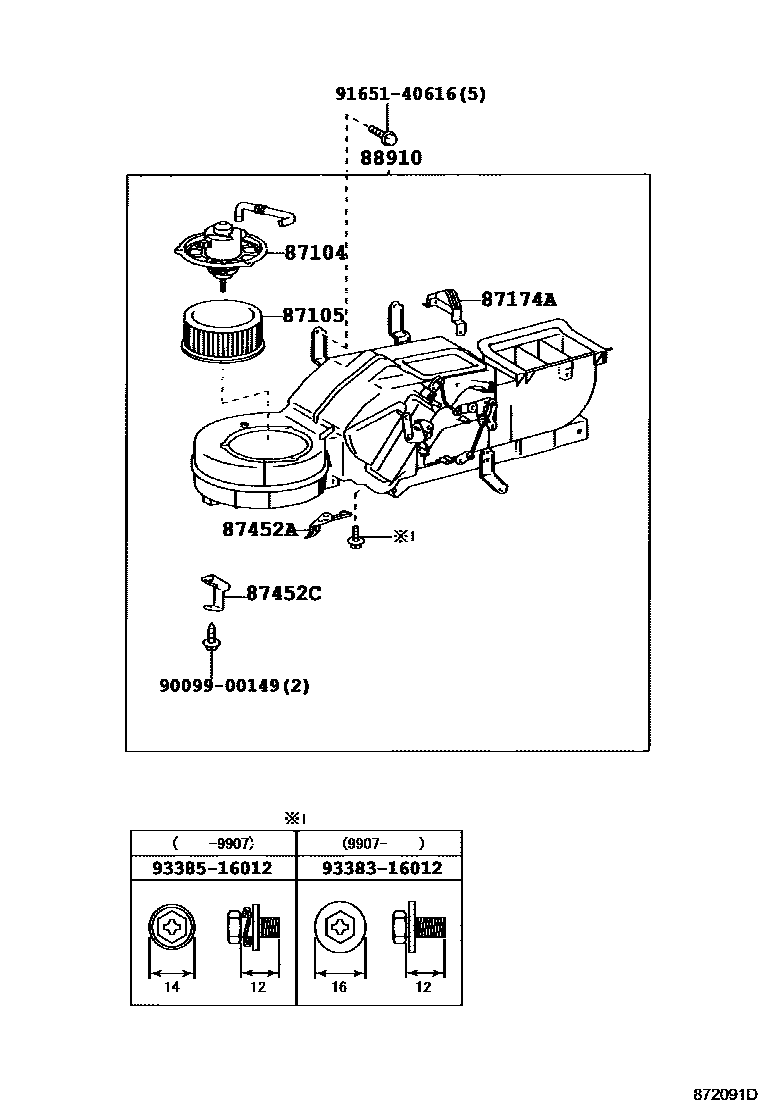

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT BOOST VENTILATOR 0002 1FRONT HEATER 0003 1FRONT HEATER 0004 1REAR 0005 1REAR 0006 1REAR 0007 1REAR

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-36200iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-200105

24V

main87104-36220iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199907-200408

COLD SPEC

main87104-36230iHZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

12V

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20110iBB4#,5#,HZB50,RZB40,50199301-199907

87174AGUIDE, AIR HEATER

main87174-36050iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199907-200408

87452ABRACKET, HEATER, FRONT

main87452-36030iBB4#,50..RHD;HZB50..RHD..(DX,STD)199705-199907

FR HEATER,W/O(FILTER)

main87452-36050iHZB50..GEN..4FC;BB42,HZB50,RZB40,50..LHD..(EUR,GCC)199301-199505

FR HEATER,W/O(FILTER)

87452CBRACKET, FRONT HEATER, NO.2

main87452-36040iBB42..RHD..SRF;BB50..RHD..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

main87452-36060iBB50,RZB40,50..CHI199907-200211

88910VENTILATOR ASSY, BOOST

main88910-36030iBB42..SCO199407-199705

main88910-36031iBB42,43..17S199705-199907

main88910-36040iXZB40200908-201501

9009900149

main90099-00149

9165140616

main91651-40616

9338316012

main93383-16012

9338516012

main93385-16012

10 parts on this diagram · 7 diagrams in section
