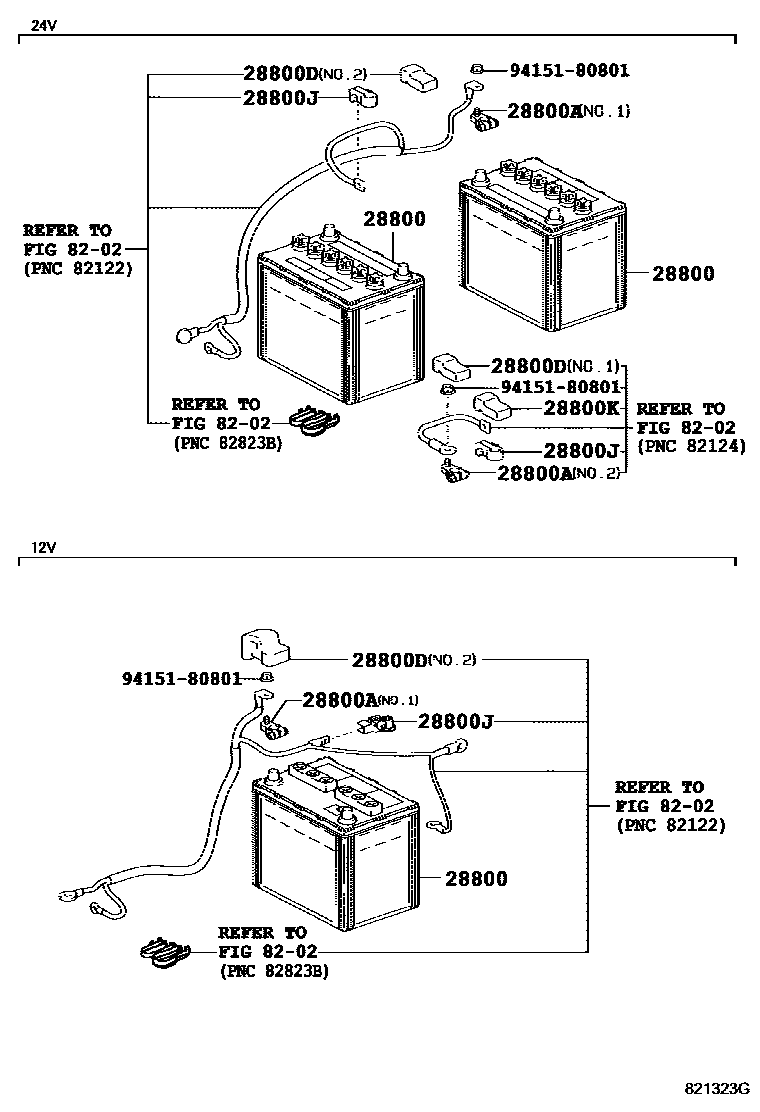

BATTERY & BATTERY CABLE

0001 1 0003 1

28800BATTERY

main28800-14010i1HZ..HZB50..EX;15BFT..BB43,5#..GEN;1HZ..HZB50..22S..4FC;1HZ..HZB50..GCC..4FC;14B,1HZ..BB42,HZB50..LHD..STD..WC..5F199301-199907

55D23R

sub28800-15020

main28800-14021i2TRFE..TRB40,50..GEN200408-201312

55D23R

sub28800-15012

main28800-15012i2TRFE..TRB40,50..GCC201501-201612

55D23R,GS YUASA

sub28800-15013

sub28800-15020

main28800-15012i2TRFE..TRB40,50..GCC201312-201612

55D23R

sub28800-15013

sub28800-15020

main28800-15021i14B,1HZ..BB42,HZB50..GCC201204-201501

55D23R,YUASA

sub28800-15012

main28800-15021i2TRFE..TRB40,50..GCC201204-201612

55D23R,FURUKAWA

sub28800-15012

main28800-15022i3RZFE,2TRFE..RZB40,50,TRB40,50..GCC200408-200811

55D23R,YUASA

sub28800-15021

main28800-15022i3RZFE..RZB40,50..GCC,GEN199907-200408

55D23R

sub28800-15021

main28800-30061i14B,1HZ..BB42,HZB50..(DX,STD)..5F199907-200408

48D26R

sub28800-15022

main28800-30082i1HZ..HZB50..30S..4FC;14B,3B,1HZ..BB40,42,HZB50..(DX,STD)..5F199301-199907

48D26R,GS

sub28800-30061

main28800-46160i14B,1HZ..BB42,HZB50..GCC200408-201204

55D23R,FURUKAWA

sub28800-15021

main28800-54040i14B,1HZ..BB42,HZB50..LHD..SRF..WOC..GEN;15BFT,1HZ..BB50,HZB50..LHD..STD..WC..GEN..CBU..5F199301-199907

95D31R

sub28800-64060

main28800-54150i1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..WOC..(GCC,GEN)199907-200004

75D26R

main28800-54232i3RZFE..RZB40,50..CHI199907-200211

80D26R

sub28800-54231

main28800-54260i1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..WOC..(GCC,GEN)199301-199907

75D26R

sub28800-54150

main28800-54271i14B,1HZ..BB42,HZB50..WOC200004-201612

75D26R

main28800-64060i1HZ..HZB50..LHD..WC..GEN;14B,1HZ..BB42,HZB50..LHD..SRF..WOC200408-200701

95D31R

sub28800-64062

main28800-64062i15BFT..BB50..STD..CHI;15BFT..BB50..LHD..(19S,20S);1HZ..HZB50..LHD..STD..WC..GEN;14B,1HZ..BB42,HZB50..LHD..SRF..WOC..GEN199907-200408

95D31R

sub28800-64061

main28800-67030i3RZF..RZB40,50..GEN199309-199907

80D26R

sub28800-54230

main28800-67070i15BFTE..BB50..GEN..6F200108-201206

105D31R

sub28800-67907

main28800-67071iN04C..XZB40,5#..ARL,GEN,TAIW201310-201612

105D31R

sub28800-67072

main28800-67907iN04C..XZB40,5#..ARL,GEN,TAIW201206-201309

105D31R

sub28800-67071

28800ATERMINAL, BATTERY POSITIVE

main82675-60030iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

NO.1

main90982-05030i1HZT..HZB50199301-199907

main90982-05035i15BFT,1HZ..BB50,HZB50..ARL,CHI199711-200708

NO.2

main90982-05037i3RZFE..RZB40..HRF..GCC199505-200708

NO.1

main90982-05053i14B..BB42..LHD..HRF200708-201501

NO.2

main90982-05058i14B..BB42..WOC;14B..BB42..RHD..HRF;14B..BB42..LHD..SRF..WC;15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50200708-201501

NO.1

main90982-05068iN04C..XZB40,5#200908-201501

NO.2

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i14B,1HZ..BB42,HZB50199705-201501

NO.1

main82821-12150i15BFT..BB50..EUR;14B,15BFT,3B,1HZ..BB4#,HZB50199509-199907

main82821-22110i15BFT..BB5#..GEN199705-200908

NO.2

main82821-22110i14B,3B,1HZ..BB4#,HZB50199505-199509

main82821-24010i14B..BB42..WOC;14B..BB42..RHD..HRF;14B..BB42..LHD..SRF..WC;15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50200908-201501

NO.2

main82821-36020iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

NO.1

28800JTERMINAL, BATTERY NEGATIVE

main90982-06013i14B..BB42..WOC;3RZF..RZB40,50;1HZ..HZB50..RHD;15BFT..BB50..EUR;1HZ..HZB50..LHD..WOC199705-200709

12V

main90982-06013i14B,15BFT,3B,1HZ..BB4#,50,HZB50199509-200408

main90982-06013i14B..BB42..WOC;3RZF..RZB40,50;1HZ..HZB50..RHD;15BFT..BB50..EUR;1HZ..HZB50..LHD..WOC199705-200709

24V

main90982-06022i14B,3B,1HZ..BB4#,HZB50199505-199509

main90982-06039iN04C..XZB40;N04C..XZB50..4FC200708-201501

main90982-06039iN04C..XZB59;N04C..XZB50..(20S,21S)..WC..5F200709-201612

24V

main90982-06039i14B,1HZ..BB42,HZB50..WOC200709-201612

12V

main90982-06070iN04C..XZB40,5#..ARL,GEN,TAIW200908-201612

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-12150i14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1HZ..BB50,HZB50199509-201501

main82821-22110i14B,3B,1HZ..BB4#,HZB50199505-199509

8202

9415180801

main94151-80801

7 parts on this diagram · 2 diagrams in section
