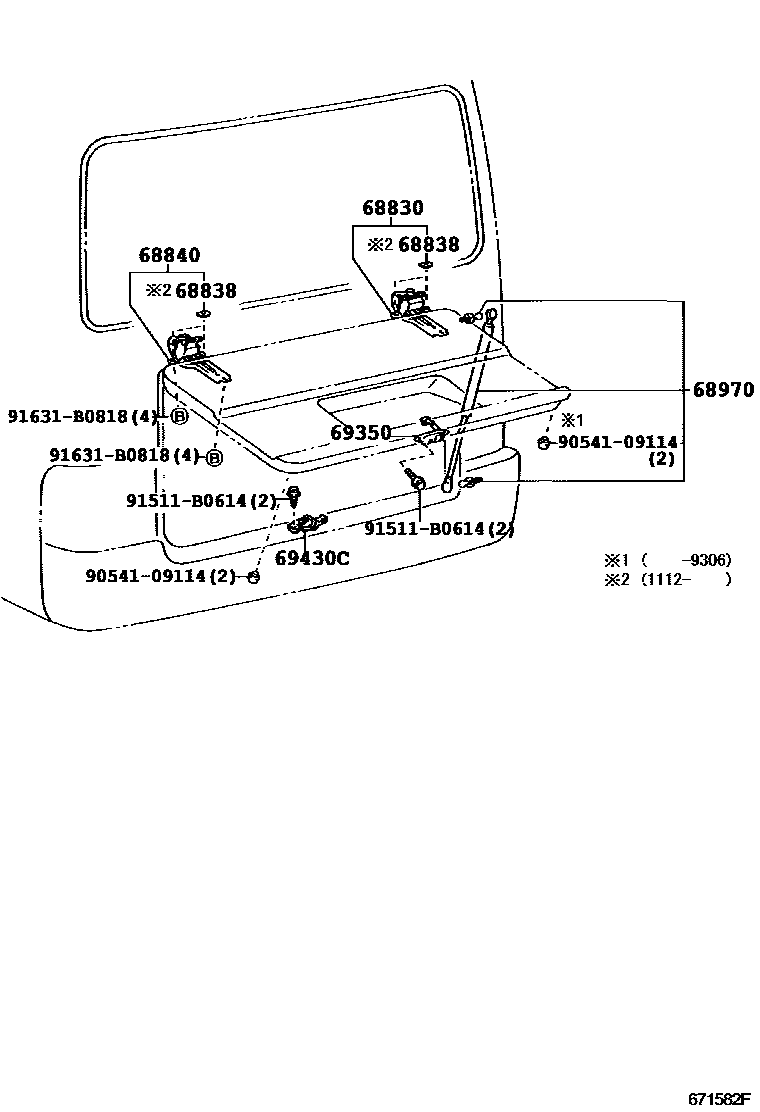

BACK DOOR LOCK & HINGE

0001 1LUGGAGE COMPARTMENT DOOR 0002 1SINGLE SWING BACK DOOR 0006 1SINGLE SWING BACK DOOR 0008 1DOUBLE SWING BACK DOOR 0009 1DOUBLE SWING BACK DOOR

68830HINGE ASSY, BACK DOOR, RH

main68801-36010iXZB50..WOC..CBU200408-200908

W(*SSBD) OR W(*DSBD),UPPER

main68801-36020iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

W(LUGGAGE COMPARTMENT DOOR)

main68801-36030iBB42,50,HZB50,TRB40,50201112-201501

W(LUGGAGE COMPARTMENT DOOR)

main68803-36010iHZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(*SSBD) OR W(*DSBD),LOWER

68838PAD, BACK DOOR HINGE, NO.1

main68838-36020×4iBB42,50,HZB50,TRB40,50201112-201501

68840HINGE ASSY, BACK DOOR, LH

main68801-36010iBB42..22S;BB42..WOC..GCC;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(*DSBD),UPPER

main68801-36020iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

W(LUGGAGE COMPARTMENT DOOR)

main68801-36030iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501

W(LUGGAGE COMPARTMENT DOOR)

main68803-36010iRZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB50,58,RZB50..(23S,30S)..(GCC,GEN);BB50,RZB40..(19S,20S,26S)..WC..(GCC,GEN)..(EFI,TDEFI)199907-200408

LOWER

68970STAY ASSY, BACK DOOR, RH

main68950-39265iHZB50..30S;BB42,RZB40,50..STD..(GCC,GEN)199301-199907

main68950-39275iBB50..STD..CBU;HZB50,RZB40..EX..(GCC,GEN)199301-199907

sub68950-39415

main68950-39405iBB50..GEN..6F200408-200608

69350LOCK ASSY, BACK DOOR

main69350-36010iBB42,HZB50,RZB40,50..GCC,GEN199301-199505

W(*DSBD)

main69350-36020iBB58199907-200408

main69350-36030iBB42..RHD..SRF..WC201108-201501

W(LUGGAGE COMPARTMENT DOOR)

main69350-90B06iHZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(SINGLE SWING BACK DOOR)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28010iBB42,HZB50..GCC,GEN199301-199309

W(*DSBD)

main69430-36010iBB50..ARL199907-200408

main69430-90B02iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-199907

W(LUGGAGE COMPARTMENT DOOR)

main69430-90B03iXZB50..STD..GEN200408-200803

W(SINGLE SWING BACK DOOR)

main69430-95702iHZB50..HRF..GCC200611-201108

W(DOUBLE SWING BACK DOOR)

9054109114

main90541-09114

91511B0614

main91511-B0614

91631B0818

main91631-B0818

9 parts on this diagram · 5 diagrams in section
