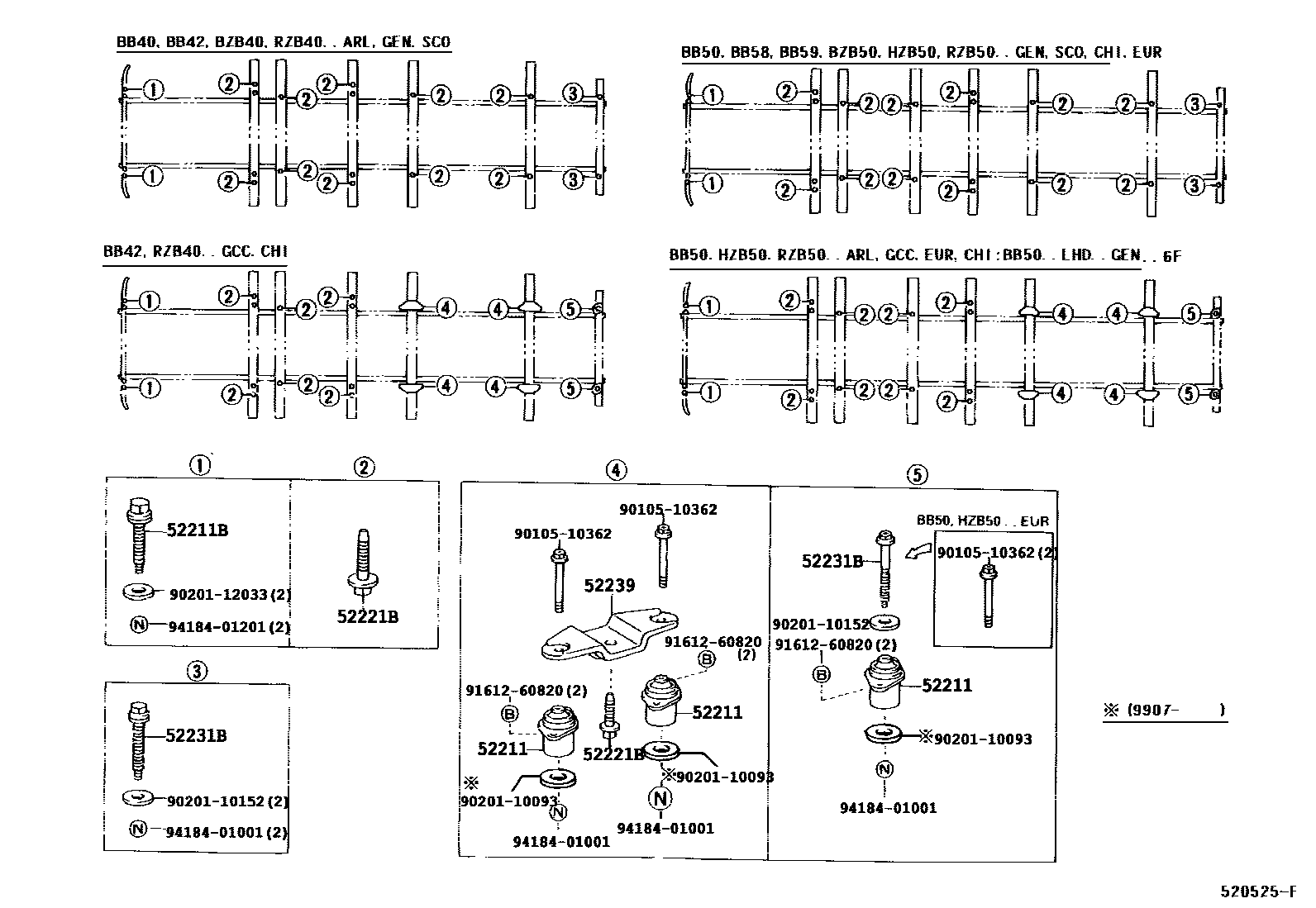

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-36030×10iBB42..WC..GCC;BB50..CBU..6F;BB42..LHD..SRF..WOC;HZB50..LHD..HRF..STD..GEN;BB50,HZB50,RZB40,50..(ARL,CHI,EUR,GCC)..(DSL,EFI,TDEFI)199907-200108

main52211-36070×10iTRB40,50..GCC;XZB50..DX,STD;BB42,HZB50,XZB40..LHD201504

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-12257×4iBB4#,HZB50..DSL199301-199308

main90119-12275×4iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10762×16iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40..(17S,26S)..WC..(GCC,GEN)199907-200408

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-10748×2iBB4#,HZB50,RZB40,50..ARL,GEN,SCO199301-199507

main90119-10762×2iXZB50..STD..GEN200408-200803

main90901-05014×2iTRB40,50..GCC;XZB50..DX,STD;BB42,HZB50,XZB40..LHD201501

W(BODY MOUNT CUSHION)

52239PLATE, BODY MOUNTING

main52239-36010×4iBB42,50,HZB50,RZB40,50..EUR,GCC199301-199705

9010510362

main90105-10362

9020110093

main90201-10093

9020110152

main90201-10152

9020112033

main90201-12033

9161260820

main91612-60820

9418401001

main94184-01001

9418401201

main94184-01201

12 parts on this diagram · 2 diagrams in section
